USSR - Ultraviolet Suspended Spherical Reservoir


Well, this is actually an old project that was postponed for a little over 2 years. Way back when, DeVil_909 came to me a rough design concept, which I fleshed out practically in 3D.
Well, for a handful of reasons the project was delayed. But it now has feet and is off and running. Although progress has been a tad slow due to my new part-time job and the fact that I'm trying to get used to a few new tools. I have far more experience with machining that I did when this project was first started. So in turn the design has become a little more advanced and feature rich. This change is also partly due to the expanse of time leading to me losing the original file for the first design.

Here's the new design

External Dimensions: 16 x 16 x 13 inches
3 5.25" drive bays
3 3.5" drive bays
removable motherboard tray
hinged drive and power access panel
rotatable and swappable reservoir and drive cage units allowing for multiple front panel configuration and case orientation options
completely spherical reservoir

Log
It took me a whole day to get the garage setup for working.

I then placed a HUGE order through McMaster, which even though I only paid ground shipping on arrived the next morning. Shown here, next to the large pile of scrap plastic I bought a few days prior
I then started cutting out the hollow square rod pieces for the frame.

They were troublesome and I wasn't quite happy with the end result.

Granted I wasted alot of time making them, but I decided to start over. The only upside of doing so is that I'm now more comfortable using my new tablesaw.

This time around I decided to build a framing jig to help glue the new solid square rod together at precise spacings and right angles with no room for errors. The first frame half is drying now, and once I get the second one done I can reconfigure the jig to start glueing the two remaining frame pieces.


And now I have something to work with! Most of the square pieces for the case itself have already been cut to size. Most of what's left is detail and drilling work which I will cover in detail in the next updates.

__________________
||[ Oni is a bot! ]-[ My Heatware]-[ Project: Metal Slug ]-[ In the event of an emergency, the nearest senior member may be used as a floatation device. ]||
||[ OC Forums Apparel is now available through cafepress ]-[ If you want a particular item with a particular image just PM me ]||

Last edited by Captain Slug; 10-05-05 at 07:50 PM.
Captain Slug is offline   QUOTE Thanks
Old 08-03-05, 12:24 AM   #2
NsOmNiA91130
Member


NsOmNiA91130's Avatar

Join Date: Nov 2004
Location: Lawrenceville, NJ


What ever happened to your leet plastic making powers?
NsOmNiA91130 is offline   QUOTE Thanks
Old 08-03-05, 12:46 AM   #3
Drec
Member


Drec's Avatar

Join Date: May 2004


this looks like it will turn out great! can't wait.
Drec is offline   QUOTE Thanks
Old 08-03-05, 12:50 AM   #4
scott d
Member


scott d's Avatar

Join Date: May 2005
Location: Tampa, FL


wow, that looks sweeet. Now hurry up and finish, I wanna see!!

__________________
Heat
scott d is offline   QUOTE Thanks
Old 08-03-05, 01:00 AM Thread Starter   #5
Captain Slug
Helpful Senior Member


Captain Slug's Avatar

Join Date: May 2001
Location: Asteroid B-612

10 Year Badge

Quote:
Originally Posted by NsOmNiA91130
What ever happened to your leet plastic making powers?
I'm not allowed to make mistakes once in a while? You think too highly of me.
Besides, hollow square rod has much thinner walls that I was expecting so they're too weak and lack an effective surface for the plastic solvent to make a solid bond.
The new frame is proving to be much more rigid and will definitely be sturdier once it's finished. The second half is fusing now and I will be reconfiguring the jig for the upper and lower pieces tomorrow morning.

__________________
||[ Oni is a bot! ]-[ My Heatware]-[ Project: Metal Slug ]-[ In the event of an emergency, the nearest senior member may be used as a floatation device. ]||
||[ OC Forums Apparel is now available through cafepress ]-[ If you want a particular item with a particular image just PM me ]||

Last edited by Captain Slug; 08-03-05 at 01:05 AM.
Captain Slug is offline   QUOTE Thanks
Old 08-03-05, 05:52 PM   #6
subtotal
Member


subtotal's Avatar

Join Date: Sep 2004
Location: Auckland, NZ


5W337
subtotal is offline   QUOTE Thanks
Old 08-03-05, 06:34 PM   #7
Benvanz
Member


Benvanz's Avatar

Join Date: May 2005
Location: Victoria, BC, Canada


Yet again you come up with a great idea Keep up the GOOD work!!!

__________________
Go bug some other sig!
Benvanz is offline   QUOTE Thanks
Old 08-03-05, 07:27 PM   #8
sicloan


sicloan's Avatar

Join Date: Jul 2004
Location: Folding in the Pacific Northwest.


amazing. cant wait to see another update!

__________________
Laptop: MacBook Air i5 8GB (2012)
Desktop: Ubuntu 12.04 Intel i7 2600k @ 4.5ghz| Gigabyte Z68XP-UD3P | 16 GB DDR3 1600| EVGA GTS 450 | Noctua NH-C14 | Seasonic SS-560KM | Lian Li v2000B
HTPC: Ubuntu 12.04 Intel Core i3-3225 Ivy Bridge | 4GB Corsair XMS3 | ASRock H77m | OrigenAE X11
Folding User Stats
sicloan is offline   QUOTE Thanks
Old 08-04-05, 12:11 AM Thread Starter   #9
Captain Slug
Helpful Senior Member


Captain Slug's Avatar

Join Date: May 2001
Location: Asteroid B-612

10 Year Badge

Update tomorrow. The most important frame pieces are finished but need to be drilled and tapped so I can take a picture of them assembled with screws. This will be the first update where the progress starts to look like the conceptual image.

__________________
||[ Oni is a bot! ]-[ My Heatware]-[ Project: Metal Slug ]-[ In the event of an emergency, the nearest senior member may be used as a floatation device. ]||
||[ OC Forums Apparel is now available through cafepress ]-[ If you want a particular item with a particular image just PM me ]||
Captain Slug is offline   QUOTE Thanks
Old 08-04-05, 01:20 PM Thread Starter   #10
Captain Slug
Helpful Senior Member


Captain Slug's Avatar

Join Date: May 2001
Location: Asteroid B-612

10 Year Badge

The main structural frame pieces are done!

They affix together with 8 1-inch #6-32 screws and the frame will get progresssively more rigid as I add new assemblies. The radiator mount will come next since it's the most structural.

The pictures have been pretty crappy lately because someone decided to "borrow" the camera I was using in the shop for their vacation photos, but did so without asking.

__________________
||[ Oni is a bot! ]-[ My Heatware]-[ Project: Metal Slug ]-[ In the event of an emergency, the nearest senior member may be used as a floatation device. ]||
||[ OC Forums Apparel is now available through cafepress ]-[ If you want a particular item with a particular image just PM me ]||

Last edited by Captain Slug; 08-04-05 at 01:25 PM.
Captain Slug is offline   QUOTE Thanks
Old 08-04-05, 05:24 PM   #11
SniperXX
Member


SniperXX's Avatar

Join Date: Jul 2002
Location: Folding in Diamond Bar


Looking good. I wish I had time to mod as much as I wanted too and the right tools, lol.

__________________
i7 920 @ 4.2Ghz
Asus Rampage II GENE
2x BFG GTX285
6GB Crucial Dominator 1600
Crucial 750TX

Help find cures for cancer by running Folding @ Home.

HEATWARE
SniperXX is offline   QUOTE Thanks
Old 08-04-05, 07:04 PM   #12
flamerail
Disabled


flamerail's Avatar

Join Date: May 2005
Location: Im out of bed, I made it to the keyboard. What more do you want!


Yey!!!!!!
flamerail is offline   QUOTE Thanks
Old 08-05-05, 12:33 PM   #13
pik4chu
Senior Yellow Forum Rat


pik4chu's Avatar

Join Date: Jan 2003
Location: Highlands Ranch, Colorado

10 Year Badge

omg the captain is at it again! That 3d render looks totally cool and I cant wait to see the progress here! :cheer:

__________________
DFI X58-T3EH8 | I7-920 C0@3.0 (V8) | 6*2GB Corsair Dominator @1800-7-7-7-18 | eVGA 285 | 1.5 TB RAID 0 | Win7 64-bit (456Watts)
Main Server (WIP): DFI X58-T3EH8 | I7-920 C0@3.6 | 3*2GB Corsair Dominator @1800-7-7-7-18 | 8*1.5TB in RAID 5 (283Watts)

Folding User Stats
Team 32 Countdown heatware
pik4chu is offline Benching Profile Folding Profile Heatware Profile   QUOTE Thanks
Old 08-05-05, 10:08 PM   #14
DeViL_909
Member


DeViL_909's Avatar

Join Date: Mar 2004
Location: NC


Looks really good so far. I wish it was mine.....oh wait lol. The 2 year set back was my problem due to college and funds, but I am happy that I could finnally pull funds together to get this made. Hope you all enjoy it as much as I am going to

__________________

Gigabyte GA-X38-DS4
----- Water Cooling with D5 Pump
E8400 (3.0 ghz)----- On Storm CPU
VisionTech 3870------- On Maze 4 acetal GPU block
4 gig Gskill DDR2 (2x2)
2x 80 gig SATA HD (raid 0) and 1x 80gig Raptor

HEATWARE
DeViL_909 is offline   QUOTE Thanks
Old 08-09-05, 10:13 PM   #15
DeViL_909
Member


DeViL_909's Avatar

Join Date: Mar 2004
Location: NC


Well it seems like Captain has been a little busy with his job and multiple projects. Since there is no case updates, I will update you all with the parts lol. I just got done painting the optical drives black and the faceplates. I will be sleeving the PSU with black soon. I am also painting my keyboard and mouse black and red to match the case theme. While part of this is done, i will be posting pics tomorrow morning. Oh, I forgot to mention that the tubing in the case will be black so that the Res will be the only thing glowing red.

__________________

Gigabyte GA-X38-DS4
----- Water Cooling with D5 Pump
E8400 (3.0 ghz)----- On Storm CPU
VisionTech 3870------- On Maze 4 acetal GPU block
4 gig Gskill DDR2 (2x2)
2x 80 gig SATA HD (raid 0) and 1x 80gig Raptor

HEATWARE
DeViL_909 is offline   QUOTE Thanks
Old 08-09-05, 11:07 PM   #16
Electron Chaser
Senior Delta Fanatic


Electron Chaser's Avatar

Join Date: May 2004
Location: I live by a Delta


Another Cap'n mod, another thread added to my subscribed list.

So any time frame on they Sphere res or what your plans are?

__________________
I am the Senior Omega of the Delta ... Fan Users :burn:
Custom 48" X 24" X 12" Case- Abit IC7-MAX3 - Pentium 4 3.4 EE @ 4.2 |Mach II Phase Cooled
BFG 6800 Ultra @ 470 | NV-68 Water Cooled -1.5 GB PQI PC4400 -1 KW PCP&C -
2 X Raptor 150GB RAID 0 , 2 74GB Raptor RAID 1, 1 36GB Raptor, 1 250GB WD SATA
BIX3 w/ 3 GFB1212VHW Fans (660 CFM Total) -Case Fans 5 EFB1212SHE (710 CFM Total)
MB / RAM Cooler 2 TFB1212GHE (440 CFM Total)

:cool: 1800+ CFM of Pure Delta Coolness :cool:
Someone Help you out? Post a Thank you here. Project Denali Heat
Electron Chaser is offline   QUOTE Thanks
Old 08-10-05, 01:06 AM Thread Starter   #17
Captain Slug
Helpful Senior Member


Captain Slug's Avatar

Join Date: May 2001
Location: Asteroid B-612

10 Year Badge

Quote:
Originally Posted by Electron Chaser
So any time frame on they Sphere res or what your plans are?
I'm waiting for the required materials for the reservoir to arrive before I take care of it. The drilling and tapping required for it will need to be outsourced, but I already have the solvent, barbs, and hex head fill-port plug for it.
It will be held in place by a custom retaining vice the same size as the drive cage.

__________________
||[ Oni is a bot! ]-[ My Heatware]-[ Project: Metal Slug ]-[ In the event of an emergency, the nearest senior member may be used as a floatation device. ]||
||[ OC Forums Apparel is now available through cafepress ]-[ If you want a particular item with a particular image just PM me ]||
Captain Slug is offline   QUOTE Thanks
Old 08-10-05, 07:51 AM   #18
AlucardCasull
Member


AlucardCasull's Avatar

Join Date: May 2003
Location: Columbus, Ohio


Could you get some close up pics of that frame? Im interested in how that was put together. Other than that, its looking awesome as usual!
AlucardCasull is offline   QUOTE Thanks
Old 08-10-05, 01:50 PM Thread Starter   #19
Captain Slug
Helpful Senior Member


Captain Slug's Avatar

Join Date: May 2001
Location: Asteroid B-612

10 Year Badge

Quote:
Originally Posted by AlucardCasull
Could you get some close up pics of that frame? Im interested in how that was put together. Other than that, its looking awesome as usual!
You wanted close so here's close. And thankfully I have the nicer camera back.

The ends of each piece were sanding with 450 grit sand paper, then placed in the jig and fused together with solvent.

The jig was a tremendous help and made sure that the joints fused at the correct angles and kept the pieces in constant contact for the most important first hour.

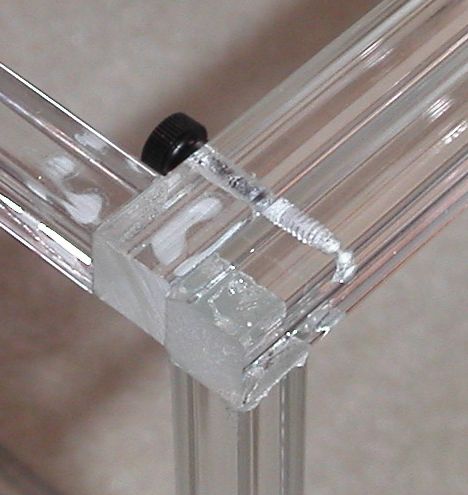

As the close-up picture shows, the upper and lower frame pieces are drill all the way through, then the side frame pieces were drilled and tapped. The whole structure is held together with black nylon thumbscrews. The structure will become even more rigid as I complete and add the radiator mount and inner drive shelf.

__________________
||[ Oni is a bot! ]-[ My Heatware]-[ Project: Metal Slug ]-[ In the event of an emergency, the nearest senior member may be used as a floatation device. ]||
||[ OC Forums Apparel is now available through cafepress ]-[ If you want a particular item with a particular image just PM me ]||
Captain Slug is offline   QUOTE Thanks
Old 08-11-05, 10:19 AM   #20
flamerail
Disabled


flamerail's Avatar

Join Date: May 2005
Location: Im out of bed, I made it to the keyboard. What more do you want!


Your the plexy glass plastics god .....
flamerail is offline   QUOTE Thanks
