jonspd · 01-08-09, 10:03 AM

As per request and also to help us out to see which system boards, ram sets, cooling, etc play nicely with PII here's a thread to help us do just that. This is ONLY for results.
Any discussion can be had here or your more then welcome to start your on thread if you need serious attention with you system.

ONCE AGAIN RESULTS ONLY!!!

any other post will be deleted

Example of a result. We will need your system components.

CPU = AM2+ 940 Phenom II (stepping would be nice)
mobo = Asus M3A79T - Deluxe
Ram = 2x1gb PC6400 g-skill 2GBHZ (d9's)
HD = 2 x 74gb raptors in raid-0
PSU = Corsair 520HX
PCI-e = PNY 8800gt
Cooling = Stock HSF or True 120 Black
Cased system or open bench table or put in the freezer

Then we will need the best you got out of it. A screen shot would be best for this. It would be best to have the result being a stable one. If you would like you can post a max benchable result also to go with the stable result also but be sure to keep all the information in your one post. Try Not To Put More Then Two Results In Your Post However. (i.e. stable overclock and max benchable)

For Screen shots be sure you include two cpu-z's one on the cpu tab and one on the memory tab. Also a superpi or wprime run in there would be really nice at the least. Any other benchmarks you would like to include in the screen shot would be great...

"Result Stats"

Thanks, This thread will be moderated.
Jonspd

jonspd · 01-08-09, 10:04 AM

CPU = AM2+ 940 es Phenom II (stepping I have to get soon)
mobo = MSI-K9A2 plat v1
Ram = 2x1gb PC6400 tracers (d9's)
HD = 1x150gb raptor X
PSU = Corsair 620HX
PCI-e = Evga GTX260 SC
Cooling = 9700led
Cased system

These results where both 10 hours prime95 stable

Max benched

AlabamaCajun · 01-08-09, 12:53 PM

AC's PhenToo on a DFI (Dragon Fly Incinerator)
3.2 Passed 1.39Vcore, 1.25V NB -(ran fo one week gaming, folding, ripping, surfing, sleep mode, off at night. Not cold bugs, reboots or crashes.
3.3 Passed 1.4Vcore, 1.3V NB, ---OCCT and 3 hours folding. CURRENT SETTINGS

Now that we know about the NB, I doubt the 1.4VCore is needed and will test that.

PhenOne - 9850BBE 2.55G - Cinibench = 9915
---
Phentoo - 940BBE 1.250V. 3.0G - Cinibench = 12547
Phentoo - 940BBE 1.250V, 3.22G - Cinibench = 12818
Phentoo - 940BBE 1.325V, 3.3G - Cinibench = 12986
Phentoo - 940BBE 1.400V, 3.4G - Cinibench = 13247 - 35 Mins of Orthos on 4 cores
changed to Cosair XMS2 CL4 until I get the new GsKills.
Phentooy-940BBE 1.456V, 3.6G - CiniBench = 14488 - 30 Mins of Orthos on 4 cores

1.4V booted at 3.6G but did not survive Orthos, reboot

Temps are stying in the low 50s max. 3.4G mostly stable at 1.4V is good. So far it's tracking about .5V above my Kentsfield.

---------------------------------------------------
VID = 1.35V These are just preliminary tests and logs to see where the voltage thresholds are.
Undervolt testing. 1.275
1.275V boots fine, surf but 2 cores of othos failed after 10 mins while playing Harvest Massive.
BSOD = 0
BOOTFAIL = 0
Temps 31C idle 37C 2 core loaded.

Undervolt, 1.312VC 1.212NB
2 cores orthos 45-60 mins
3.2 Passed
3.3 Failed at folding.

DFI LP790FX UT - SB600
2 x 2G Corsair 6400 CL4 XMS2 or 2x2G Gskill 8000 CL5
500VX Corsair PSU
WD Caviar and 300G Velociraptor no Raid
Sunbeam Core Contact Freezer.
HD3870XT 512

synthetic_fenix · 01-08-09, 01:01 PM

Reserved for Synthetic_Fenix

Started playing, haven't sized my Screenies yet, but So far the Highest I can get is 3.8, it will not load windows above that and I even tried 1.65v.

Specs:
Gigabyte GA-MA790GP-DS4H
4GB Corsair Dominator DDR2 1066
DTek Fuzion V2 waterblock
OCZ GamesXtreme 700Watt

Dolk · 01-08-09, 01:02 PM

Air cooling

Particle · 01-08-09, 04:19 PM

AMD Phenom II X4 940 Black Edition (3.00GHz, 45nm)
Foxconn A79A-S 790FX+SB750
4GB PQI DDR2-800 (2x2GB)
Xigmatek HDT-S1283 120mm
2xWD5000JS RAID-1 (Areca ARC-1220)

---Suicide (Not Checked for Stability)---
At Stock vCore (1.35V): 3600MHz Max, 3600MHz 10.386s wPrime 32M
Overvolted (1.40V): 3800MHz Max, 3700MHz 10.154s wPrime 32M
Overvolted (1.50V): 3900MHz Max, 3800MHz 9.857s wPrime 32M

More later...

Dapman02 · 01-08-09, 04:38 PM

Reserve for later

Vengance_01 · 01-08-09, 05:30 PM

Place Holder for a BE 940

Specs:
Foxconn A7DA-S AM2+
4GB Gskill PC 1066 DDR2 Ram 5/5/5/12
4870 512MB non Reference Cooler
Sunbeam Core Contact (DHT 4 8mm heatpipes)
Antec 550 Watt Modular PSU.

ChristmasGT · 01-08-09, 07:15 PM

Well i've been working all night long on this thing, It's hard adjusting to learn how to OC a Phenom. I've tried as hard as I can to hit 4ghz with it on my Lapped True Black 120 Dual S-flex setup. It's an incredibly fast system! I can get it in at 3.9 but 4.0 is simply a no go, i've even tried a run at 1.6v (was idling about 40c) I'm sure I can get better with it by learning how to mess with the north bridge and such.

THe one thing that's seriously bothering me is the fact that I can't run Dual Channel. The true sits too low and my Corsair Dominators are just too tall

I'm going to shut it off for the night and let the poor thing rest. enjoy!

Voodoo_fx · 01-08-09, 07:45 PM

Another placeholder..

Initial OC results, no where near done but..

3dMark06 w/ (2) 3870's (840/1220) - http://service.futuremark.com/compare?3dm06=9583694

4.2Ghz 3dmark

3DMark Score 21137 3DMarks
SM 2.0 Score 8529
SM 3.0 Score 9705
CPU Score 5990

http://service.futuremark.com/compare?3dm06=9662064

4.3Ghz SuperPI

4.3Ghz 3dmark

CPU = AM2+ 940 Phenom II cacvc ac 0850bpdw
Mobo = Asus M3A79T - Deluxe
Ram = 2x2gb PC6400 Corsair Dominators
PSU = Corsair 650 TX
PCI-e = 2x VT 3870 512
Cooling = W/C - DD MC-TDX or Vapochill LS

muddocktor · 01-09-09, 01:11 AM

CPU = AM2+ 940 Phenom II
Mobo = Asus M3A79T - Deluxe
Ram = 2x2gb PC6400 Pi
PSU = Corsair VX550
PCI-e = 9800GTX+
Cooling = Fuzion v. 1, PA160, Laing D4 pump
Case = Antec SX1200 modded for watercooling

The following were just barely stable enough to run, but were fun to do.

3DMark 2001 SE - 60819 3DMarks- - http://service.futuremark.com/compare?2k1=9474474

3DMark 03 - 48954 3DMarks - http://service.futuremark.com/compare?2k3=6071026

3DMark 05 - 25572 3DMarks - http://service.futuremark.com/compare?3dm05=4776138

The next one (3DMark 06) was run at 3800, where this machine runs perfectly stable:

3DMark 06 - 17528 3DMarks - http://service.futuremark.com/compare?3dm06=10211291

sno.lcn · 01-09-09, 09:13 PM

I'll go ahead and reserve a spot. Jon are you going to make a table for the top or something? That would be hella handy for reference and whatnot.

CPU = Phenom II 940
mobo = Gigabyte MA790GP-DS4H
Ram = 2x1gb PC8000 Team Xtreem
PSU = Gigabyte ODIN Pro 1200w
GPU = HD 4850 or GTX 280
Cooling = Everything but water

Some brief memory testing...

Sentential · 01-10-09, 01:01 PM

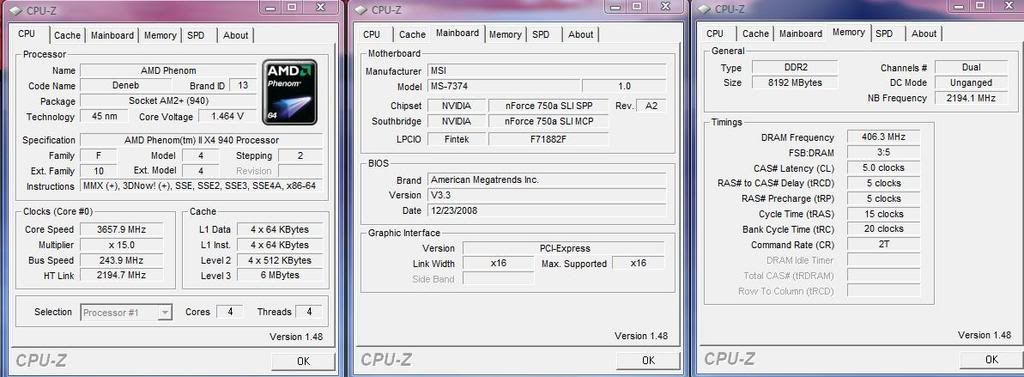

CPU = AM2+ 940 Phenom II (CACVC AC 0850 BPDW)
mobo = MSI K9N2 SLI Platinum (nvidia 750a)
Ram = 4 x 2048MB PNY PC2-5300 (Nanya)
HD = 1 x 500GB Seagate SATAII
PSU = Mushkin 650W
PCI-e = XFX GTX260 (192SP)
Cooling = Xigmatek S1284EE (Delta 120SHE)
Closed case sitting on my desk

Still trying to come up with a good result, should be somewhere in the 3.6 to 3.8 range

Electric Bill · 01-10-09, 04:51 PM

3.8GHz (19x200MHz)

CPU = AM2+ 940 Phenom II (see screenie)
mobo = Foxconn A7DA-S BIOS 81BF1P06
Ram = 2x2GB DDR2 1066 G.Skill F2-8500CL5D
HD = 150GB WD Raptor (os drive), 160GB Maxtor SATA (data drive)
PSU = Corsair CMPSU-650TX PSU
PCI-e = Asus EAH3870
Cooling = Arctic Cooling Freezer 64 Pro
Cased system

Bill

BenBrown · 01-13-09, 10:42 AM

CPU: Phenom II 940 BE (ES)
MotherBaord: ASUS M3A79-T Deluxe
Bios: 0602
Memory: G.SKILL 4GB(2 x 2GB) DDR2 1066
HD = 2 x 500 GB WD
Power: Ultra X3 1000W
Graphics: 3x VisionTek 4870 512MB
Cooling = Swiftech Apogee GTZ (Custom H2O)

Here is a suicide SuperPI run @ 4340MHz with 3080MHz North Bridge Clock on Windows 7 x86. Also added is a Vantage run on Windows 7.

pershoot · 01-22-09, 10:18 AM

[edit] new clock. put a fan on the NB to reduce ambient case air. 3.82GHZ:

CPU: Phenom II X4 940 (CACVC AC 0850BPDW)
MotherBoard: DFI LanParty DK 790FXB-M2RSH
Bios: 1/16/09 Beta
Memory: OCZ PC2-8500 Reaper - 2x2GB
HD = 1 x 500GB SATA2 WD
Power: Corsair HX620
Graphics: Nvidia GeForce 8500GT (stock)
OS: Windows XP32 SP3
Cooling = Water

http://img128.imageshack.us/img128/7...phenomii3w.jpg

crysty · 02-02-09, 03:56 PM

My rig :
Mainboard : Gigabyte MA790GP DS4H
Memory : 4 Gigaz zeppellin dual ch kit
GPU:2 Atis Radeon HD 4870 512mb both in crossfirex
Power suply: Corsair 620 HX
HDD: WD 1tb 7200 rpm 16 mb buffer caviar black
OS: Windows XP Media Center
Cooling : Water or Thermalright TRUE Copper Ultra-120 extreme CPU Cooler with some vents improvised by me

solstice · 02-07-09, 02:13 AM

3.6 GHz, NB = 2.6 GHz, HT = 1.8 at 1.375V BIOS, NB = 1.35V

Max load temp using Core Temp reading with Intel linpack test 64 bit at 56C.

ECC enabled, CPU Tweak Enabled, CPU Instruction Prefetch Enabled

See signature for information on setup and hardware.

Stablity testing in progress. So far it has passed 5 Intel Linpack Stres Tests with full memory enabled.

Rick James · 02-07-09, 03:52 AM

We're at 3.8ghz. Stock notherbridge, stock memory voltage. This is as high as she'll go till i replace my 500W PSU

satansangel114 · 02-07-09, 10:59 AM

This is as high as I can go till I get some temp problems worked out.
Name: 3.737GHZ-3dm06.jpg
Views: 9800
Size: 180.6 KB

Name: 3d06@3.838ghz.jpg
Views: 9381
Size: 174.5 KB

this is as high as I can get her stable on air

SUICIDE

Name: 4ghz.jpg
Views: 7094
Size: 186.9 KB

Deadphishy · 02-10-09, 07:34 AM

ChillPhatCat · 02-16-09, 01:29 PM

Still dealing with some motherboard issues, but I've arrived at a new stable record... previously it was 3.6, now we're up to 3720... motherboard still has some issues, I'm gonna be upgrading to a Biostar TA790GX soon to resolve this. I have booted into windows at 3900MHz and 1.55v, but it would get too hot to test, I think it would be stable there at 1.6v.

About My Computer:
CPU = PII 940BE CACVC 0850EPCW, Stepping: 2
mobo = EVGA 730A
Ram = 2x2gb PC8500 OCZ Platinum
HD = 120 Gb SATA Barracuda, 320 Gb SATA Barracuda, 750Gb WD Green Power
PSU = Coolmax 700W Modular
PCI-e = ASUS EAH4700DK, 1Gb @ 835/1100
Cooling = Thermaltake SI-128SE, Lapped, AS5 Grease
Case = Closed system, Lian Li A05B mini tower
Operating System: Windows x64 7 Beta

On stock cooling and voltage, I got to 3400 MHz, 200x17 with it seemingly stable, I'm quite confident the computer resetting at 1hr 10 mins on prime was due to a really high accidental NB voltage that has since been corrected.

Stable in Win XP Pro:
3720 MHz @ 240x15.5, 1.5v
HT@ 2160 MHz
NB @ 2160 MHz
Memory @ 480 MHz, 5-5-5-15-26, 2T 2.0v

batmang · 02-23-09, 11:52 AM

My current 100% stable 920 result:

1.47v, everything else default voltages. Cooling is a water setup. D-Tek block, D-Tek pump, Swiftec 3x120 rad.

cdawall · 02-24-09, 06:17 PM

CPU = PII 945ES BE stepping FACOC 0825
mobo = Asus Crosshair II formula
Ram = 2x256mb micron D9DCD
HD = 320GB Seagate 7200.10
PSU = PCP&C 510w turbocool
PCI-e = XFX 8800GTS OC@stock
Cooling = custom water with a Aquaxtreme MC-05 pro block
Case = open case, ultra dragon modded to death
Operating System: Windows XP 32bit

NIR_Meteor · 03-01-09, 09:39 PM

Just got my new liqiud cooling setup. 3.9 so far.
Name: 3.9.jpg
Views: 8767
Size: 188.8 KB

cdawall · 03-08-09, 08:52 PM

did some oc'ing with my frozen phenom

specs
CPU = PII 945ES BE stepping FACOC 0825
Asus Crosshair II formula
2x256mb Micron D9DCD
320GB Seagate 7200.10
onboard nv 8200

and my 4.9ghz validation keeps failing WTF?

this was done on all 4 cores and validated by save

budakinns · 03-13-09, 04:57 AM

just put it together
CM 690
Asus m4n72-e
940BE
2x 2gb G.Skill ddr2 1066
WD 320gb + 160gb
GTX 260 not oc yet
Zalman 9700

running stable at 3.6 went for 3.8 but bsod in prime95 gonna mess with it some more tomorrow.

paolo.oliva2 · 03-27-09, 06:31 AM

My OC with 940

soufigo · 04-02-09, 07:42 AM

ok, seriously first time ocer here. =D i think i could go higher with more core voltage. but since its my first time, i stop here. stable tested 6hrs with prime 95, everest and amd overdrive stability test.

CPU = AM3 x4 810 Phenom II
mobo = MSI DKA790FX-GD70
Ram = 4x1gb team extreem DDR3 1600mhz(oc) running at 1260mhz
HD = 1x 1tb WD Caviar Black 32mb
PSU = Corsair 520HX
PCI-e = PC PCS+4850 512mb
Cooling = Coolermaster v8
Cased: NZXT Lexa Blackline

Big Dave · 04-06-09, 01:29 AM

Well I have a stable system @3600mhz, X3 710 and A79A-S running at 277 fsb with 1.52 vcore. It seems like it will go higher without any additional vcore increase. Will see later on. I am enjoying this for the moment.

I'm sorry, but I am having trouble uploading my screen shot.

01-08-09, 10:03 AM	#1
jonspd D11 Senior Join Date: Jan 2003 Location: ATL, Ga	AMD Phenom II (Results Only Thread) As per request and also to help us out to see which system boards, ram sets, cooling, etc play nicely with PII here's a thread to help us do just that. *This is ONLY for results. Any discussion can be had here or your more then welcome to start your on thread if you need serious attention with you system. ONCE AGAIN RESULTS ONLY!!! any other post will be deleted Example of a result. We will need your system components. CPU = AM2+ 940 Phenom II (stepping would be nice) mobo = Asus M3A79T - Deluxe Ram = 2x1gb PC6400 g-skill 2GBHZ (d9's) HD = 2 x 74gb raptors in raid-0 PSU = Corsair 520HX PCI-e = PNY 8800gt Cooling = Stock HSF or True 120 Black Cased system or open bench table or put in the freezer Then we will need the best you got out of it. A screen shot would be best for this. It would be best to have the result being a stable one. If you would like you can post a max benchable result also to go with the stable result also but be sure to keep all the information in your one post. Try Not To Put More Then Two Results In Your Post However. (i.e. stable overclock and max benchable) For Screen shots be sure you include two cpu-z's one on the cpu tab and one on the memory tab. Also a superpi or wprime run in there would be really nice at the least. Any other benchmarks you would like to include in the screen shot would be great... "Result Stats"* Thanks, This thread will be moderated. Jonspd __________________ GD70\PII955@1.4-----------------------------------------------EX58\920@1.3v 17x200\2.2=NB\2k=HT----------------------------------19x200\True@40c\58c 2x1gb@669@7-7-7-18----------------------------------2x2gb@800@7-7-7-21 2405fpw\280's\evga\bfg----------------------------------2005fpw\2x9800gx2 CorsairHX1000\74gbRaptor----------------------------FSP1010\150gbRaptor CreativeX-Fi-Plat\DvD-rw\Win-7---------------------------------DvD-rw\Win-7 3dMark06=17,650-3dMark05=23,908-Aquamark=216k-Wprime32=6.9sc-Sandra=11kmbs My Heat---------------------------Folding@Home@Team32-----------------------My WebSite Last edited by jonspd; 04-26-09 at 11:13 AM.

01-08-09, 10:04 AM	#2
jonspd D11 Senior Join Date: Jan 2003 Location: ATL, Ga	CPU = AM2+ 940 es Phenom II (stepping I have to get soon) mobo = MSI-K9A2 plat v1 Ram = 2x1gb PC6400 tracers (d9's) HD = 1x150gb raptor X PSU = Corsair 620HX PCI-e = Evga GTX260 SC Cooling = 9700led Cased system These results where both 10 hours prime95 stable Max benched __________________ GD70\PII955@1.4-----------------------------------------------EX58\920@1.3v 17x200\2.2=NB\2k=HT----------------------------------19x200\True@40c\58c 2x1gb@669@7-7-7-18----------------------------------2x2gb@800@7-7-7-21 2405fpw\280's\evga\bfg----------------------------------2005fpw\2x9800gx2 CorsairHX1000\74gbRaptor----------------------------FSP1010\150gbRaptor CreativeX-Fi-Plat\DvD-rw\Win-7---------------------------------DvD-rw\Win-7 3dMark06=17,650-3dMark05=23,908-Aquamark=216k-Wprime32=6.9sc-Sandra=11kmbs My Heat---------------------------Folding@Home@Team32-----------------------My WebSite Last edited by jonspd; 01-11-09 at 03:33 PM.

01-08-09, 12:53 PM	#3
AlabamaCajun Join Date: Apr 2005 Location: A Labyrinth	AC's PhenToo on a DFI (Dragon Fly Incinerator) 3.2 Passed 1.39Vcore, 1.25V NB -(ran fo one week gaming, folding, ripping, surfing, sleep mode, off at night. Not cold bugs, reboots or crashes. 3.3 Passed 1.4Vcore, 1.3V NB, ---OCCT and 3 hours folding. CURRENT SETTINGS Now that we know about the NB, I doubt the 1.4VCore is needed and will test that. PhenOne - 9850BBE 2.55G - Cinibench = 9915 --- Phentoo - 940BBE 1.250V. 3.0G - Cinibench = 12547 Phentoo - 940BBE 1.250V, 3.22G - Cinibench = 12818 Phentoo - 940BBE 1.325V, 3.3G - Cinibench = 12986 Phentoo - 940BBE 1.400V, 3.4G - Cinibench = 13247 - 35 Mins of Orthos on 4 cores changed to Cosair XMS2 CL4 until I get the new GsKills. Phentooy-940BBE 1.456V, 3.6G - CiniBench = 14488 - 30 Mins of Orthos on 4 cores 1.4V booted at 3.6G but did not survive Orthos, reboot Temps are stying in the low 50s max. 3.4G mostly stable at 1.4V is good. So far it's tracking about .5V above my Kentsfield. --------------------------------------------------- VID = 1.35V These are just preliminary tests and logs to see where the voltage thresholds are. Undervolt testing. 1.275 1.275V boots fine, surf but 2 cores of othos failed after 10 mins while playing Harvest Massive. BSOD = 0 BOOTFAIL = 0 Temps 31C idle 37C 2 core loaded. Undervolt, 1.312VC 1.212NB 2 cores orthos 45-60 mins 3.2 Passed 3.3 Failed at folding. DFI LP790FX UT - SB600 2 x 2G Corsair 6400 CL4 XMS2 or 2x2G Gskill 8000 CL5 500VX Corsair PSU WD Caviar and 300G Velociraptor no Raid Sunbeam Core Contact Freezer. HD3870XT 512 __________________ Main Rigs Developement -Phen2-940 AM2, DFI790FX-M2R,Corsair-PC6400 CL4 HD3870,3750XF CDs, Labels, Printing etc- 5000BBE, GA790FX, Wintec 800 4G.HD2600XT Rendering Server- 4x Barcelona 8347s. Tyan S4980 Quad, 16G (2G Kingston per socket). Folding, Testing- Ubuntu and WIN7 - 5600X2 Windsor, Agena 9600, Brisy 5000BBE Theme Park Builder 3D The Game- Build-em and Ride-em. Last edited by AlabamaCajun; 02-01-09 at 09:51 PM.

01-08-09, 01:01 PM	#4
synthetic_fenix Member Join Date: Nov 2005 Location: 38.61708841727722, -89.80939149856567	Reserved for Synthetic_Fenix Started playing, haven't sized my Screenies yet, but So far the Highest I can get is 3.8, it will not load windows above that and I even tried 1.65v. Specs: Gigabyte GA-MA790GP-DS4H 4GB Corsair Dominator DDR2 1066 DTek Fuzion V2 waterblock OCZ GamesXtreme 700Watt __________________ BLUE-PHOENIX(gaming rig)......ZERO-ONE(file/game server) OS=.......Windows 7 Ultimate 64-bit.........................Ubuntu - 9.10 MOBO=. Gigabyte GA-MA790GP-DS4H...............ASUS M2N-LR RAM=.....2x2GB Corsair Dominator PC2 8500....4x2GB G.Skill PC2 6400 CPU=......AMD Phenom II X4 965 @ 3.9Ghz.........AMD Phenom 9850 @ Stock PSU=......Corsair 750TX.................................................. ...Ablecom 650Watt PSU VID=......EVGA GTX260 Core 216...............................on board ATI es1000 HD=.......750Gb Seagate 7200.10.................................2TB Raid5 Array + 4.5TB Raid5 array fold as if your life depended on it....Protect your Computing Rights! Remember that the Forum Search and Google are very helpful tools :) My Heat 24-0 Last edited by synthetic_fenix; 01-11-09 at 05:16 PM.

01-08-09, 01:02 PM	#5
Dolk Why does this keep happening? Senior Join Date: Mar 2008 Location: St. Louis MO	Air cooling __________________ sam ~~ dolk 1090T ~~ Opty 185 4870 Matrix ~~ 8600GT OCZ B.E. ~~ OCZ M4A89GTD Pro ~~ A8N-SLI Dlx 1td HDD ~~ 2.2 td raid 5 currently has .2748428927348 internets create your own rules to find the answer be proud of the pink stars Phenom II Result Thread Phenom II Guide ASUS AMD Beta BIOS Last edited by Dolk; 01-13-09 at 02:47 PM.

Overclockers

Internet Services

Website Development

Tech Hardware

01-08-09, 04:19 PM	#6
Particle Member Join Date: Feb 2003 Location: Parsons, KS	AMD Phenom II X4 940 Black Edition (3.00GHz, 45nm) Foxconn A79A-S 790FX+SB750 4GB PQI DDR2-800 (2x2GB) Xigmatek HDT-S1283 120mm 2xWD5000JS RAID-1 (Areca ARC-1220) ---Suicide (Not Checked for Stability)--- At Stock vCore (1.35V): 3600MHz Max, 3600MHz 10.386s wPrime 32M Overvolted (1.40V): 3800MHz Max, 3700MHz 10.154s wPrime 32M Overvolted (1.50V): 3900MHz Max, 3800MHz 9.857s wPrime 32M More later... __________________ Why does every thread boil down to a freaking AMD vs. Intel bashfest? Last edited by Particle; 01-08-09 at 11:14 PM.

01-08-09, 04:38 PM	#7
Dapman02 Member Join Date: Jan 2008 Location: Overland Park, KS	Reserve for later __________________ Desktop: Back to basics: mATX build Processor: Athlon x2 250 @stock for now Cooling: Stock for Phenom II GPU: EVGA 465 Motherboard: Biostar TA890GXE Case:Cooler Master Elite 341 RAM: 4GB's of OCZ 1333mhz HDD: Hitachi 1TB 7200rpm OS: Windows 7 Ultimate 64bit Christian Overclocker

01-08-09, 05:30 PM	#8
Vengance_01 Member Join Date: Oct 2001 Location: Encino, CA	Place Holder for a BE 940 Specs: Foxconn A7DA-S AM2+ 4GB Gskill PC 1066 DDR2 Ram 5/5/5/12 4870 512MB non Reference Cooler Sunbeam Core Contact (DHT 4 8mm heatpipes) Antec 550 Watt Modular PSU. __________________ Workstation and Mobile Workstation Dell XPS 1330: Core 2 T7500, 3GB Ram, 320GB HD, 13.3 LED, 8400GS, 20inch Dell 2007WFP When at Home.

01-08-09, 07:15 PM	#9
ChristmasGT Member Join Date: Sep 2004	Well i've been working all night long on this thing, It's hard adjusting to learn how to OC a Phenom. I've tried as hard as I can to hit 4ghz with it on my Lapped True Black 120 Dual S-flex setup. It's an incredibly fast system! I can get it in at 3.9 but 4.0 is simply a no go, i've even tried a run at 1.6v (was idling about 40c) I'm sure I can get better with it by learning how to mess with the north bridge and such. THe one thing that's seriously bothering me is the fact that I can't run Dual Channel. The true sits too low and my Corsair Dominators are just too tall I'm going to shut it off for the night and let the poor thing rest. enjoy! __________________ AMD Phenom II 940 BE 3.9Ghz CPU, 2.2Ghz NB Asus M4A79 Deluxe 790 FX Custom Water Cooling Crucial Tracer DDR2 4GB 800Mhz 4870x2 Before Xmas! Western Digital 400GB SATA 8MB Buffer Western Digital Raptor 74GB SATA 16MB Buffer Corsair 1000HX Last edited by ChristmasGT; 01-10-09 at 04:15 AM.

01-08-09, 07:45 PM	#10
Voodoo_fx Member Join Date: May 2002 Location: Wisconsin	Another placeholder.. Initial OC results, no where near done but.. 3dMark06 w/ (2) 3870's (840/1220) - http://service.futuremark.com/compare?3dm06=9583694 4.2Ghz 3dmark 3DMark Score 21137 3DMarks SM 2.0 Score 8529 SM 3.0 Score 9705 CPU Score 5990 http://service.futuremark.com/compare?3dm06=9662064 4.3Ghz SuperPI 4.3Ghz 3dmark CPU = AM2+ 940 Phenom II cacvc ac 0850bpdw Mobo = Asus M3A79T - Deluxe Ram = 2x2gb PC6400 Corsair Dominators PSU = Corsair 650 TX PCI-e = 2x VT 3870 512 Cooling = W/C - DD MC-TDX or Vapochill LS __________________ Phenom II 940 BE Asus M3A79T - Deluxe 2x 2GB PC8500 Corsair Domminators 2x VisionTek HD3870 512 Last edited by Voodoo_fx; 01-23-09 at 07:03 PM.

01-09-09, 01:11 AM	#11
muddocktor Offshore Moderator Join Date: Nov 2001 Location: On OCForums	CPU = AM2+ 940 Phenom II Mobo = Asus M3A79T - Deluxe Ram = 2x2gb PC6400 Pi PSU = Corsair VX550 PCI-e = 9800GTX+ Cooling = Fuzion v. 1, PA160, Laing D4 pump Case = Antec SX1200 modded for watercooling The following were just barely stable enough to run, but were fun to do. 3DMark 2001 SE - 60819 3DMarks- - http://service.futuremark.com/compare?2k1=9474474 3DMark 03 - 48954 3DMarks - http://service.futuremark.com/compare?2k3=6071026 3DMark 05 - 25572 3DMarks - http://service.futuremark.com/compare?3dm05=4776138 The next one (3DMark 06) was run at 3800, where this machine runs perfectly stable: 3DMark 06 - 17528 3DMarks - http://service.futuremark.com/compare?3dm06=10211291 __________________ QX9650@4000, X38-DQ6 mobo, Fuzion v.1 w/dual fan heater core+PA120.3+260GTX/MCW60R2,Iwaki MD20RZ(T), Yate Loon fans Q6600@3600,Foxconn Mars P35, GTZ, D4 w/MCR220-QP Res rad, Swiftech fans 940BE@3813, M3A79-T Dlx, Fuzion v.1, MCP355 w/XSPC res top, PA160, Panaflo L1BX Q6600@3700, P5Q-Pro, HK3.0+8800GTS 512/MCW60 w/RX360 rad, MCP355 w/XSPC top, YL D12SL led fans E5200@3830, P35-DS3L, mobo dead, RIP E6750@3600, P35-DS3R, mobo dead, RIP Asus N51Vn, T9600 processor All running Seti or Rosetta My heatware In from the rig Last edited by muddocktor; 03-03-09 at 10:52 PM.

01-09-09, 09:13 PM	#12
sno.lcn Why does this keep happening? Senior Join Date: Nov 2005 Location: Atlanta, GA, USA	I'll go ahead and reserve a spot. Jon are you going to make a table for the top or something? That would be hella handy for reference and whatnot. CPU = Phenom II 940 mobo = Gigabyte MA790GP-DS4H Ram = 2x1gb PC8000 Team Xtreem PSU = Gigabyte ODIN Pro 1200w GPU = HD 4850 or GTX 280 Cooling = Everything but water Some brief memory testing... __________________ sam ~~ dolk 1090T ~~ Opty 185 4870 Matrix ~~ 8600GT OCZ B.E. ~~ OCZ M4A89GTD Pro ~~ A8N-SLI Dlx 1td HDD ~~ 2.2 td raid 5 currently has .2748428927348 internets create your own rules to find the answer be proud of the pink stars Phenom II Result Thread Phenom II Guide ASUS AMD Beta BIOS Last edited by sno.lcn; 01-19-09 at 04:31 PM.

01-10-09, 01:01 PM	#13
Sentential Contributing Member Join Date: Sep 2003 Location: Jacksonville, FL	CPU = AM2+ 940 Phenom II (CACVC AC 0850 BPDW) mobo = MSI K9N2 SLI Platinum (nvidia 750a) Ram = 4 x 2048MB PNY PC2-5300 (Nanya) HD = 1 x 500GB Seagate SATAII PSU = Mushkin 650W PCI-e = XFX GTX260 (192SP) Cooling = Xigmatek S1284EE (Delta 120SHE) Closed case sitting on my desk Still trying to come up with a good result, should be somewhere in the 3.6 to 3.8 range __________________ NZXT Tempest \| Corsair 1000W Creative X-FI Titanium Fatal1ty Pro AMD Phenom II 1090T XIGMATEK HDT-S1284EE PNY GTX 470 SLI(700 / 1402 / 1722) Asus M3N-HT Deluxe OCZ PC2-8000 (4x2048MB)(6-6-6-12 @ 1066mhz @ 2.0v) Heatware: 13-0-0 Last edited by Sentential; 01-11-09 at 01:14 PM.

01-10-09, 04:51 PM	#14
Electric Bill Registered Join Date: Jan 2005 Location: Rhode Island, USA	3.8GHz (19x200MHz) CPU = AM2+ 940 Phenom II (see screenie) mobo = Foxconn A7DA-S BIOS 81BF1P06 Ram = 2x2GB DDR2 1066 G.Skill F2-8500CL5D HD = 150GB WD Raptor (os drive), 160GB Maxtor SATA (data drive) PSU = Corsair CMPSU-650TX PSU PCI-e = Asus EAH3870 Cooling = Arctic Cooling Freezer 64 Pro Cased system Bill __________________ Foxconn A7DA-S, AMD 940 Deneb, XP Pro, Gigabyte 3D Mars tower, Arctic Cooling Freezer 64 Pro CPU cooler, Corsair CMPSU-650TX PSU, 2x2GB DDR2 1066 G.Skill F2-8500CL5D RAM, Asus EAH3870 video card, 150GB WD Raptor (os drive), 160GB Maxtor SATA (data drive), Pioneer DVR-216D DVD-RW, and Samsung LND3251D HDTV as monitor. Abit AX78, AMD X2 6400+ Windsor @ 3.2GHz, Vista Ultimate 64, XP Pro 32 and Linux 64, Antec 300 mid tower, Zalman CNPS9500A CPU cooler, OCZ GameXStream 600SLI PSU, 2x2GB DDR2 800 G.Skill F2-6400CL4D RAM, Sapphire HD3850 video card, 160GB Hitachi SATA (Vista Ult 64), 160GB WD SATA (XP Pro) and 80GB Seagate IDE (Ubuntu 8.04) hds, Pioneer DVR-215D DVD-RW, Dell FP2000 Monitor.

01-13-09, 10:42 AM	#15
BenBrown Registered Join Date: Apr 2008	Super PI Runs CPU: Phenom II 940 BE (ES) MotherBaord: ASUS M3A79-T Deluxe Bios: 0602 Memory: G.SKILL 4GB(2 x 2GB) DDR2 1066 HD = 2 x 500 GB WD Power: Ultra X3 1000W Graphics: 3x VisionTek 4870 512MB Cooling = Swiftech Apogee GTZ (Custom H2O) Here is a suicide SuperPI run @ 4340MHz with 3080MHz North Bridge Clock on Windows 7 x86. Also added is a Vantage run on Windows 7. Attached Images __________________ "You make a living by what you get. You make a life by what you give." --Winston Churchill CPU: Phenom II 940 BE (CACVC AC 0850BPDW) -- CPU Cooler: Swiftech Apogee GTZ (Custom H2O) MotherBaord: ASUS M3A79-T Deluxe -- Bios: 0701 Graphics: 3x VisionTek 4870 512MB -- Display: HP w2007 Memory: G.SKILL 4GB(2 x 2GB) DDR2 1066 Power: Ultra X3 1000W -- Case: COOLER MASTER Centurion 590 Last edited by BenBrown; 01-23-09 at 10:15 AM.

01-22-09, 10:18 AM	#16
pershoot Member Join Date: Feb 2004 Location: Brooklyn, NYC	[edit] new clock. put a fan on the NB to reduce ambient case air. 3.82GHZ: CPU: Phenom II X4 940 (CACVC AC 0850BPDW) MotherBoard: DFI LanParty DK 790FXB-M2RSH Bios: 1/16/09 Beta Memory: OCZ PC2-8500 Reaper - 2x2GB HD = 1 x 500GB SATA2 WD Power: Corsair HX620 Graphics: Nvidia GeForce 8500GT (stock) OS: Windows XP32 SP3 Cooling = Water http://img128.imageshack.us/img128/7...phenomii3w.jpg __________________ DFI LP DK 790FXB-M2RSH - 1/16 Beta --- Phenom II X4 940 (CACVC AC 0850BPDW), 3.8GHZ (19x200) @ 1.46v (+150mv), NB: 2.6GHZ (x13) @ 1.3375v (11), HT: 2.6GHZ, CPU: P-1 state --- OCZ Reaper, 2x2GB @ 2.0v, MaxMemClk-1066-5-5-5-15-20-195x4, DDR2-533, Tony's 1066 Phenom SPD --- Corsair HX620, Swiftech 2xMCR120-QP + MCRES-Micro, MCP-655, Vortex XP (D-tek Fuzion v1), 1/2" Last edited by pershoot; 02-22-09 at 07:11 AM.

02-02-09, 03:56 PM	#17
crysty New Member Join Date: Feb 2009	:D My rig : Mainboard : Gigabyte MA790GP DS4H Memory : 4 Gigaz zeppellin dual ch kit GPU:2 Atis Radeon HD 4870 512mb both in crossfirex Power suply: Corsair 620 HX HDD: WD 1tb 7200 rpm 16 mb buffer caviar black OS: Windows XP Media Center Cooling : Water or Thermalright TRUE Copper Ultra-120 extreme CPU Cooler with some vents improvised by me

02-07-09, 02:13 AM	#18
solstice Member Join Date: Dec 2008	3.6 GHz, NB = 2.6 GHz, HT = 1.8 at 1.375V BIOS, NB = 1.35V Max load temp using Core Temp reading with Intel linpack test 64 bit at 56C. ECC enabled, CPU Tweak Enabled, CPU Instruction Prefetch Enabled See signature for information on setup and hardware. Stablity testing in progress. So far it has passed 5 Intel Linpack Stres Tests with full memory enabled. __________________ AMD Phenom II 940 (3.6 GHz at 1.375V BIOS) NB = 2.6 GHz at 1.35V CPU Fan: OCZ Vendetta 2 4 2GB Kingston Value-Memory DDR2 PC2-6400 *ECC* CL5 ASUS M3N-HT Deluxe/HDMI Bios 1701 with ECC enabled BFG GTX 280 and EVGA GTX 280 OC in SLI mode VISTA 64 bit Antec Nine Hundred 3Ware 3960SA-8I 2 Hitachi 640 GB in RAID0 Last edited by solstice; 02-14-09 at 11:22 PM. Reason: Deleted 3.7 GHz since it was not rock solid 10 hour Intel Stress stable.

02-07-09, 03:52 AM	#19
Rick James Banned Join Date: Jan 2009 Location: Tempe, Az	We're at 3.8ghz. Stock notherbridge, stock memory voltage. This is as high as she'll go till i replace my 500W PSU Last edited by Rick James; 02-07-09 at 06:01 AM.

02-07-09, 10:59 AM	#20
satansangel114 Member Join Date: May 2008 Location: Folding@home in Jefferson City Mo.	This is as high as I can go till I get some temp problems worked out. this is as high as I can get her stable on air SUICIDE __________________ AMD Phenom II x4 940BE @ 3.7ghz [201x18.5]@1.472v NB-2.6@1.3v Sunbeam core-contact Freezer BIOSTAR TA790gx 128m 8GB Gskill pc8500@ 1072mhz [5,5,5,15,23,2t]@2.1v 2x Visiontek Hd4850s Xfire +accelero S1 250 gig WD hd 500 gig WD hd Antec EA650 Antec 900 FOLD FOR TEAM 32 Last edited by satansangel114; 05-02-09 at 07:59 PM.

02-10-09, 07:34 AM	#21
Deadphishy Member Join Date: Jul 2002 Location: Royal oak, Mi	__________________ Phenom II 940 @ 3.7ghz @ 1.5Vcore OCZ Vendetta MSI K9a2 Plat 2x2gb corsair xms2 8500 2x2gb Gskill 8500 Saphire HD 3870 512mb 150gb WD raptor X 500gig WD 16mb cache My forever belongs to you MCM

02-16-09, 01:29 PM	#22
ChillPhatCat Member Join Date: Sep 2002 Location: Ballston Spa, NY	Still dealing with some motherboard issues, but I've arrived at a new stable record... previously it was 3.6, now we're up to 3720... motherboard still has some issues, I'm gonna be upgrading to a Biostar TA790GX soon to resolve this. I have booted into windows at 3900MHz and 1.55v, but it would get too hot to test, I think it would be stable there at 1.6v. About My Computer: CPU = PII 940BE CACVC 0850EPCW, Stepping: 2 mobo = EVGA 730A Ram = 2x2gb PC8500 OCZ Platinum HD = 120 Gb SATA Barracuda, 320 Gb SATA Barracuda, 750Gb WD Green Power PSU = Coolmax 700W Modular PCI-e = ASUS EAH4700DK, 1Gb @ 835/1100 Cooling = Thermaltake SI-128SE, Lapped, AS5 Grease Case = Closed system, Lian Li A05B mini tower Operating System: Windows x64 7 Beta On stock cooling and voltage, I got to 3400 MHz, 200x17 with it seemingly stable, I'm quite confident the computer resetting at 1hr 10 mins on prime was due to a really high accidental NB voltage that has since been corrected. Stable in Win XP Pro: 3720 MHz @ 240x15.5, 1.5v HT@ 2160 MHz NB @ 2160 MHz Memory @ 480 MHz, 5-5-5-15-26, 2T 2.0v __________________ Windows 7 x64 Beta/Win XP Media x86 AMD PhenomII 940BE X4 Deneb @ 3600 MHz (3720 MHz stable @ 1.5v) Lapped Thermalright SI-128SE EVGA 113-M2-E113 730a Mobo 4Gb OCZ Platinum PC8500 @ 800 MHz & 4-4-4-12, 1T 120Gb SATA Barracude, 320 GB SATA Barracuda, 750Gb WD Green ASUS Radeon EAH4870DK 1Gb@ 835/1100 Lian Li PC-A05B + 700W Coolmax Modular PSU Last edited by ChillPhatCat; 02-25-09 at 01:48 PM.

02-23-09, 11:52 AM	#23
batmang Registered Join Date: Feb 2008 Location: Tucson, AZ	My current 100% stable 920 result: 1.47v, everything else default voltages. Cooling is a water setup. D-Tek block, D-Tek pump, Swiftec 3x120 rad. Last edited by batmang; 02-25-09 at 01:26 PM.

02-24-09, 06:17 PM	#24
cdawall Member Join Date: Feb 2009 Location: cypress, tx	CPU = PII 945ES BE stepping FACOC 0825 mobo = Asus Crosshair II formula Ram = 2x256mb micron D9DCD HD = 320GB Seagate 7200.10 PSU = PCP&C 510w turbocool PCI-e = XFX 8800GTS OC@stock Cooling = custom water with a Aquaxtreme MC-05 pro block Case = open case, ultra dragon modded to death Operating System: Windows XP 32bit __________________ Dual AMD Opty 8346HE's Asus L1N64-SLI WS (Flashed /B) 4x1GB D9GMH Sapphire 4850X2 2GB 32GB SLC supertalent SSD Last edited by cdawall; 03-08-09 at 08:51 PM. Reason: wrong HDD listed

03-01-09, 09:39 PM	#25
NIR_Meteor New Member Join Date: Jan 2009	Just got my new liqiud cooling setup. 3.9 so far. __________________ Phenom II 940BE ASRock A780GXE/128M 4GB G.SKILL Model F2-8500CL5D (1066) True Power Trio 650w psu EVGA GTX 280 Swiftech H20-220 Ultima Kit (4x120mm 2 push 2pull on rad)

03-08-09, 08:52 PM	#26
cdawall Member Join Date: Feb 2009 Location: cypress, tx	did some oc'ing with my frozen phenom specs CPU = PII 945ES BE stepping FACOC 0825 Asus Crosshair II formula 2x256mb Micron D9DCD 320GB Seagate 7200.10 onboard nv 8200 and my 4.9ghz validation keeps failing WTF? this was done on all 4 cores and validated by save __________________ Dual AMD Opty 8346HE's Asus L1N64-SLI WS (Flashed /B) 4x1GB D9GMH Sapphire 4850X2 2GB 32GB SLC supertalent SSD

03-13-09, 04:57 AM	#27
budakinns New Member Join Date: Mar 2009 Location: Brandon, FL	just put it together CM 690 Asus m4n72-e 940BE 2x 2gb G.Skill ddr2 1066 WD 320gb + 160gb GTX 260 not oc yet Zalman 9700 running stable at 3.6 went for 3.8 but bsod in prime95 gonna mess with it some more tomorrow.

03-27-09, 06:31 AM	#28
paolo.oliva2 New Member Join Date: Mar 2009	My OC with 940

04-02-09, 07:42 AM	#29
soufigo New Member Join Date: Apr 2009	ok, seriously first time ocer here. =D i think i could go higher with more core voltage. but since its my first time, i stop here. stable tested 6hrs with prime 95, everest and amd overdrive stability test. CPU = AM3 x4 810 Phenom II mobo = MSI DKA790FX-GD70 Ram = 4x1gb team extreem DDR3 1600mhz(oc) running at 1260mhz HD = 1x 1tb WD Caviar Black 32mb PSU = Corsair 520HX PCI-e = PC PCS+4850 512mb Cooling = Coolermaster v8 Cased: NZXT Lexa Blackline

04-06-09, 01:29 AM	#30
Big Dave New Member Join Date: Mar 2009 Location: San Antonio, Texas USA	P2 X3 710 Foxconn A79A-S overclock on air Well I have a stable system @3600mhz, X3 710 and A79A-S running at 277 fsb with 1.52 vcore. It seems like it will go higher without any additional vcore increase. Will see later on. I am enjoying this for the moment. I'm sorry, but I am having trouble uploading my screen shot. Attached Images Last edited by Big Dave; 04-06-09 at 10:05 AM. Reason: add screen shot
