6700K high VCore out of the box

Overclockers is supported by our readers. When you click a link to make a purchase, we may earn a commission. Learn More.

piedpilot

New Member
Joined
Sep 15, 2016
Hi guys.

I'm quite new to all this, having been tempted back into it by recent developments in VR. I've just built a PC based on an Asus Z170 Pro Gaming motherboard with a Skylake 6700K, and I'm now checking out what it can do. So far, everything is currently still at the factory settings (with the exception of updating the bios to the latest version)

In the bios, the default VCore is showing as 1.328V, which seems very high as a starting point. (I'm not really sure how the mobo arrives at that value?). When I run CPU-Z, it shows core VID fluctuating between about 1.26V and 1.34V at idle, but then during a stress test, the reading stabilises to around 1.26V.

Is all of this normal? Should I be worried about the high core voltage in the bios? Which numbers should I trust?

On a different, though possibly related issue (hence the reason for posting it as part of the same thread), my cpu temperature is currently around 30 degrees C at idle (25 degrees ambient), and increases to around 60 degrees during a stress test. Again, this seems high given that I have a Corsair H110 liquid cooler. I'm not sure if the chip is just running really hot or if my cooler is just not working effectively.

Many thanks


EarthDog

Gulper Nozzle Co-Owner
Joined
Dec 15, 2008
Location
Buckeyes!
Seems all fine to me. What does cpuz say your voltage on load is... 1.26V?

The board gets the stock voltage info from the cpu. It's called VID.


wingman99

Member
Joined
Dec 10, 2003
When you run prime95 what do you see with CPU-Z for Core voltage (Vcore) not VID? If your using ASUS CPU-Z it has VID and not Core voltage.


EarthDog

Gulper Nozzle Co-Owner
Joined
Dec 15, 2008
Location
Buckeyes!
You are aware that version of CPUz is over 3 years old, right? I'm not sure when that changed, but it isn't in 1.77. :)

Last edited:

wingman99

Member
Joined
Dec 10, 2003
I have just seen folks post with VID CPU-Z recently just making sure that is not what he is looking at, thanks for the information.


EarthDog

Gulper Nozzle Co-Owner
Joined
Dec 15, 2008
Location
Buckeyes!

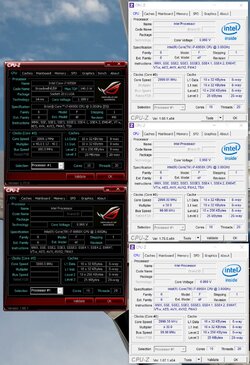

I wonder if it is just the skinned models that say VID... I wanted to know when it changed and the non skinned versions do not ever say VID in it from 1.66 on forward (see screenshot).

EDIT: Nope.. oddly enough, the same exact version you posted, I DL and ran and it does NOT say VID. See second screenshot. I am not sure why it says VID whereas the others I have DL from the website don't.




Last edited:

wingman99

Member
Joined
Dec 10, 2003
I wonder if it is just the skinned models that say VID... I wanted to know when it changed and the non skinned versions do not ever say VID in it from 1.66 on forward (see screenshot).

EDIT: Nope.. oddly enough, the same exact version you posted, I DL and ran and it does NOT say VID. See second screenshot. I am not sure why it says VID whereas the others I have DL from the website don't.

View attachment 183371


View attachment 183372

I don't know either, I just can't remember what thread I witnessed someone posting ASUS Core VID here in the Forum. Maybe it has something to do with ASUS CPU-Z reading some motherboards?


Mr.Scott

Beamed Me Up!
Joined
Jun 9, 2013
In CPUz, if you change XOC= from 0 to 1 you will see the VID in the voltage window instead of the actual voltage. ;)
Reason you turn on XOC is to kill some of the monitoring so your sh1t don't crash when you validate.

@ Joe- thought you were a bencher brah. :D


Attachments

  • untitled.JPG
    192.6 KB · Views: 82
Last edited:

EarthDog

Gulper Nozzle Co-Owner
Joined
Dec 15, 2008
Location
Buckeyes!
I was. :(

Never knew you could do that!

Seems like its a manual change and not something an average person, read the OP, would see.


Mr.Scott

Beamed Me Up!
Joined
Jun 9, 2013

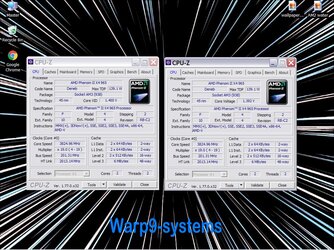

The ROG CPU-Z I used with my FX chip showed VID, too, and I never modded it.
You did at one time. ;)
When you upgrade CPUz to a newer version, it saves your settings from the old one and applies them to the new one.


Alaric

New Member
Joined
Dec 4, 2011
Location
Satan's Colon, US
