7700k - Ultimate solution for cooling.

[lIrenicuSl]

This thread is the 2nd part of thread here:
https://www.overclockers.com/forums...I-is-okey-but-which-one?p=8148853#post8148853

Items used:

CPU Used: 7700k with 1.25 VCore -> 4,7 GhZ
Arctic 34 eSports Duo
CPU Delid
PC Case [old]: Sharkoon BW9000-W
PC Case [new]: Phanteks P500A-W
Arctic Freezer II 280
GC Gelid extreme


After rebuilding my system, changing my thermopaste, entire PC case and cooling system with delid, here are results:
Basic Temp with old thermopaste were:

102oC -hottest core- [average of all cores: 98oC]

After changing thermopaste and getting new case [Phanteks P500a] temps went down to:

98oC [average: 95oC]

This did not make me happy at all, I went to the local deliding company, and did an delid to the CPU.

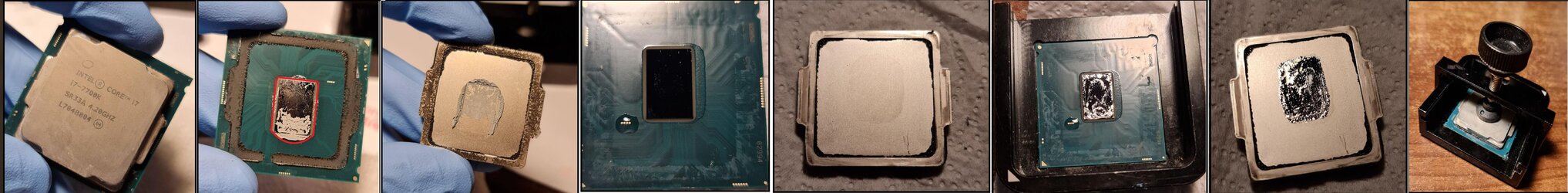

To be honest, my CPU core was disgusting, check the photos below, I never saw such disgusting thing and I was surprised that this happened to me, when I didn't even went for the "limits":



results: 85oC [average: 80 oC]

After this the last thing was changed: I went for an AIO Cooler Arctic Freezer II 280, results:

72oC [average: 66 oC]

Test were made in 2 programs: OCCT + Prime95.

Conclusion: If you have spare 25$, do a delid to the CPU, it helps a lot and is not expensive. IF you have 135$, making delid and the AIO for CPU is the best way to cool him down.

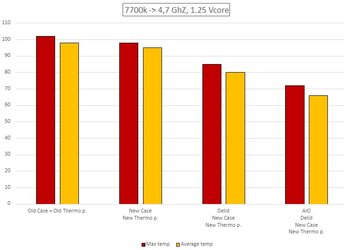

Below I present you a little graph to show difference "before" and "after".



Summary:
OLD -> 102 [average: 98]
NEW-> 72 [average: 66]

PS. I have screens as documentation of entire process when I was changing my build. I did not post them, because I did not want to make this thread 2x bigger with photos. If you want to know more things, or I should change anything here, let me know.



[EarthDog]

30 degreed drop is ridiculous. Something had to be wrong wjth that cpu to see that much of a drop. Wow. Typically you see around 10, maybe 15C.



[freeagent]

He did add a new case probably with much better airflow, new AIO, new paste, and a delid, so from what he had at first to what he has now I can see it. But I haven't delidded anything CPU wise. I should do my 3770K.

Good job! Now why are still running under 5GHz?



[MaddMutt]

IIRC - the De-liding alone will drop the temps ~15c (If done correctly with LM). The addition of a AIO over a standard HS/F (even with a push/pull config) will drop the temps. With that AIO - have you pushed your I7-7700k over 5GHz yet?
Please include pictures of the new setup so that others can view the original verses new config



[lIrenicuSl]

IIRC - the De-liding alone will drop the temps ~15c (If done correctly with LM). The addition of a AIO over a standard HS/F (even with a push/pull config) will drop the temps. With that AIO - have you pushed your I7-7700k over 5GHz yet?
Please include pictures of the new setup so that others can view the original verses new config

30 degreed drop is ridiculous. Something had to be wrong wjth that cpu to see that much of a drop. Wow. Typically you see around 10, maybe 15C.

I have edited the main post. Thank you for your advice.

About 5.0 GHz, I didn't push it because I will need to give 0,1 Vcore more to CPU [maybe even more], just to receive 300 mhz more, I have seen reviews and the difference between 4700 and 5000 MhZ is around 2-4% in benchmarks and around 2% in gaming. Which means + 1 fps for me, I don't think this is reasonable



[freeagent]

Ahhh… I gotta give my 3770K a kick in the nuts to get it to do anything too. I generally just keep it between 4500 and 4700. Get it? ..
