I've spent some time on this cable management and i am very proud. LOL. This is kind of a tutorial on how to but not really more just hole placement if anything, also some neat tricks.

This is a picture of the overall cable management(not completely finished)

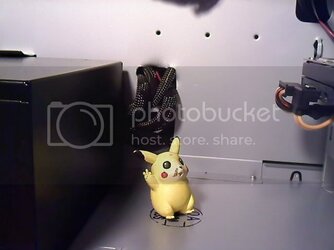

Main hole feeds all power supply cables(Pikachu has penthouse suite:D):

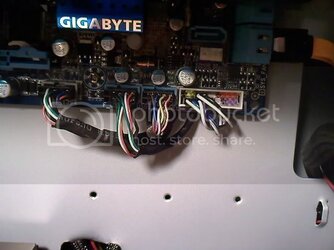

Front panel wires hole:

Front panel receiving end:

A little hard to see but front panel audio and fan also feeds through there:

8 pin connector under mobo:

Hardrive wires and receiver for cathodes feed through drive bays:

Little trick for flash reader wire:

May have noticed that PSU is upside down.... hole takes care of that:

OP
JustDepends

JustDepends

Member
Joined
Dec 9, 2009
Location
Canada
The nest (tight fit but works):

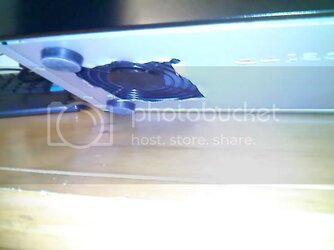

Hole originally for DVD drive but now just for fan:

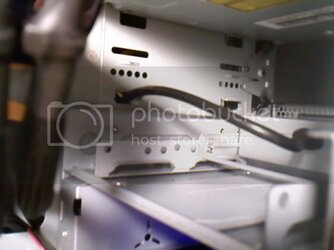

Hole for Hardrive:

PSU behind:

Top fan:

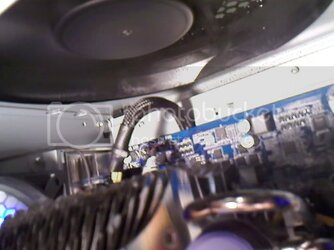

8pin behind:

Front audio and fan:

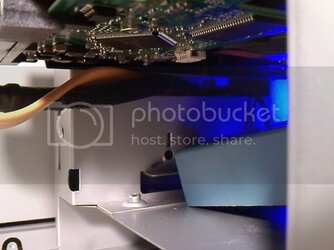

Cathode placement plus cable trick:

Sexy:


So as you may have noticed my holes look like crap. I had planned for this and that is why i hid all the holes that i could. I used a drill and a pair of metal snips... LOL! So leave some comments tell me what you think and if you have any questions just ask.

Lastly i plan on painting the inside of the case i was wondering what colour you guys would recommend.

Thnxs-Joe
