Aorus x670 Elite AX motherboard Bios

[painfullyaware1973]

I was hoping someone could direct me to a video or list of the best settings for a Gigabyte Aorus x670 Elite AX motherboard Bios. CPU AMD Ryzen 7 7800x3d.GPU Nvidia GeForce RTX 4080.Thanx in advance for any info.



[infinitevalence]

Sadly every chip is different, so the "best" settings are going to be something unique to your configuration.

If you are looking for easy, then just turn on PBO and leave it on auto.



[JLK03F150]

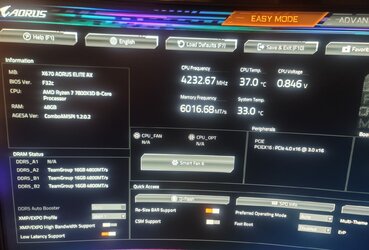

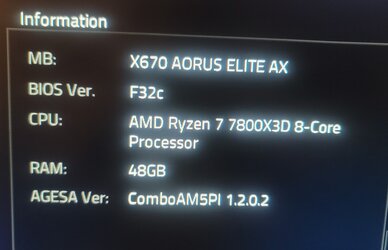

Three sticks of RAM? Are you just using three or is one of them not being seen in BIOS?



[Woomack]

I also recommend enabling XMP/EXPO High Bandwidth Support.
About the CPU, enable PBO. CPU presets should be on top of the Tweaker window. This CPU won't overclock much higher, so it's not like anyone can give you tips that significantly affect your gaming experience. On the other hand, it doesn't require overclocking or tweaking as it's already one of the fastest options for gaming.



[infinitevalence]

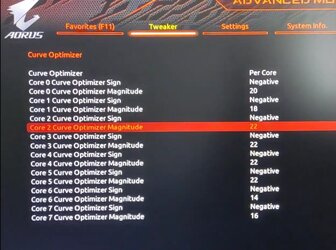

If you really just want the tweaking experience, then going through and undervolting and testing each core individually for their optimal or minimal power use can be a great way to unlock head room for PBO.



[painfullyaware1973]

Three sticks of RAM? Are you just using three or is one of them not being seen in BIOS?

Just 3.

Post magically merged: Oct 22, 2024

If you really just want the tweaking experience, then going through and undervolting and testing each core individually for their optimal or minimal power use can be a great way to unlock head room for PBO.

Ill give that a try.



[infinitevalence]

3 sticks is a less than optimal setup and will hurt your memory performance. Zen 4 prefers 2 sticks.



[painfullyaware1973]

I also recommend enabling XMP/EXPO High Bandwidth Support.
About the CPU, enable PBO. CPU presets should be on top of the Tweaker window. This CPU won't overclock much higher, so it's not like anyone can give you tips that significantly affect your gaming experience. On the other hand, it doesn't require overclocking or tweaking as it's already one of the fastest options for gaming.

ill do that.



[painfullyaware1973]

Three sticks of RAM? Are you just using three or is one of them not being seen in BIOS?

This was my first attempt at building a pc from scratch. I did have another 16GB stick for the 4th slot, but when I had a 16GB stick in all 4 slots, it was nothing but trouble, I was lucky to get anything more than a black screen. The way their set up now is the only time things loaded as they should....that I know of.



[EarthDog]

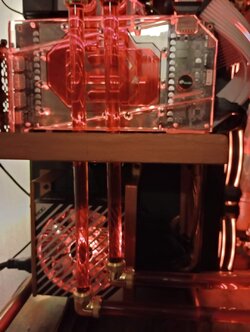

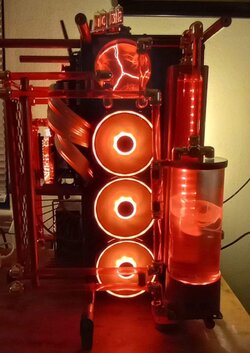

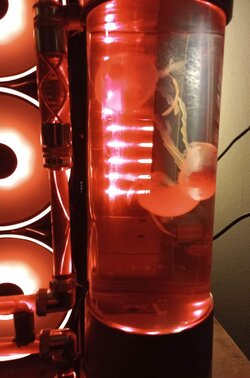

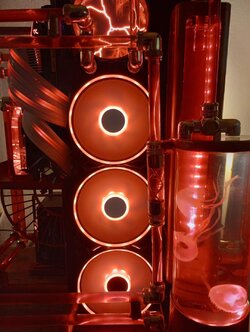

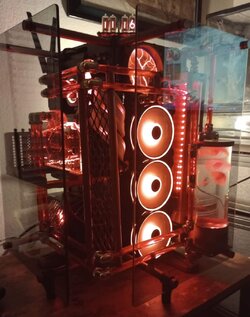

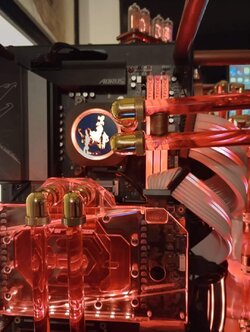

That's a cool-looking system!



[painfullyaware1973]

That's a cool-looking system!

Thanks.
