Delidding with budget cooler - results

Overclockers is supported by our readers. When you click a link to make a purchase, we may earn a commission. Learn More.

frozen_one

New Member
Joined
Jan 9, 2016
While Prime95 SmallFFT with AVX is very unrealistic, and my Hyper212 cooler is very cheap, these temps did make me question if I could modify my cooling setup.

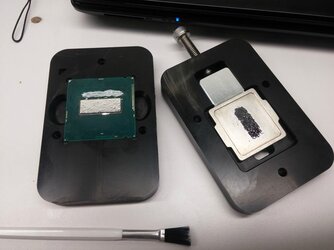

One common issue with the Devil's Canyon CPU is the IHS adhesive holds the lid too far from the die. I got a delidder to pop the IHS safely, and by recommendation used liquid tape to protect the board while applying CL Pro.


The lid was placed back on without adhesive.


Gelid for the heat sink, less is more


I was hoping for better temps honestly. I'll try lapping the IHS to see if that helps



QuickFast

Member
Joined
Dec 21, 2011
Location
Nerwport,NC
Just a heads up when you removed the adhesive you removed the vent guessing it there for a reason how much of a difference it makes no idea just some thing to think about


Mr.Scott

Beamed Me Up!
Joined
Jun 9, 2013
You spent more on the delidder than you did on your cooling solution. :p
A little lean on the TIM too.
