PROJECT LOG GREEN MOLECULE (modded Fractal Design ACR Mini R2)

Overclockers is supported by our readers. When you click a link to make a purchase, we may earn a commission. Learn More.

Hey guys, time for another update!

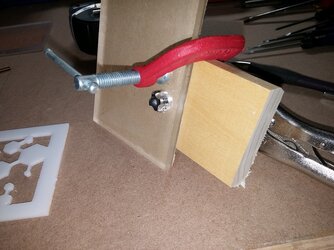

I did a bit of work on the shroud and attached the pump and res as well found a way to support the weight of them and at the same time secure the shroud in place.

As it is now, it's very easy to get the shroud in and secure it, without having to access the back or underneath it.

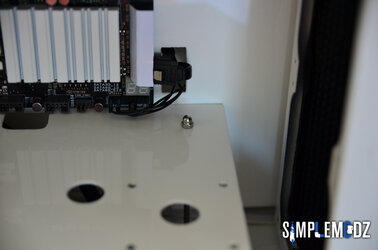

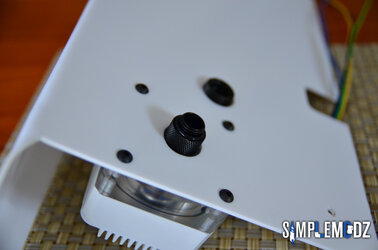

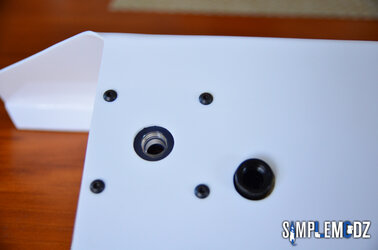

Here you can see the holes for the pump and res as well as for the GPU cables.

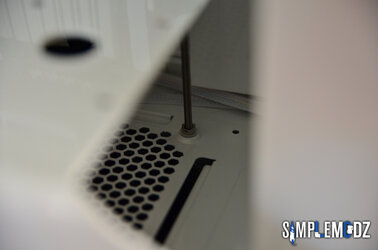

And this is what's holding the shroud, with a dome nut on the top.

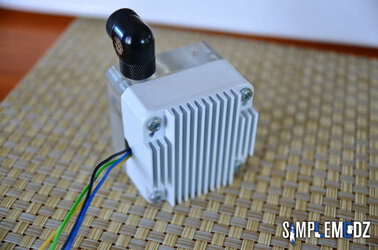

A look at the Swiftech MCP35X pump with the Bitspower top and Koolance heatsink.

I have a complete kit from Koolance which includes a pump casing along with the heatsink but I didn't like the look of it. So I just used the heatsink with a bit of mod work on the bottom of the original casing.


Cable still needs to be measured, cut and sleeved

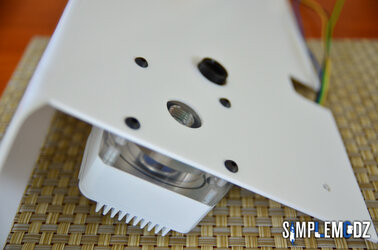

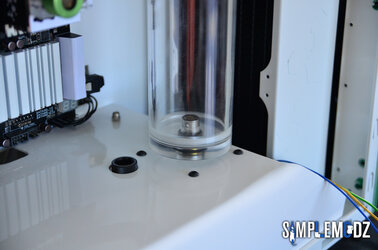

And here it is attached to the shroud

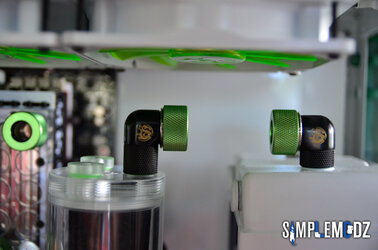

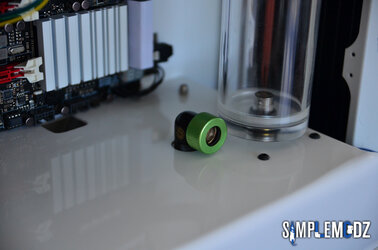

With the long bolt and nuts supporting the weight of the shroud I can easily adjust the nuts to make sure these two fittings align perfectly.

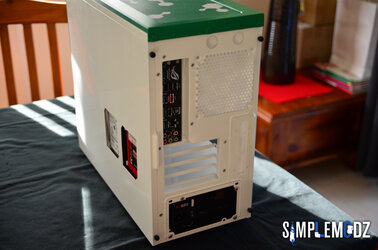

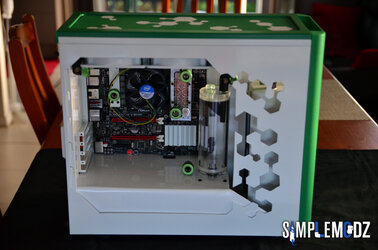

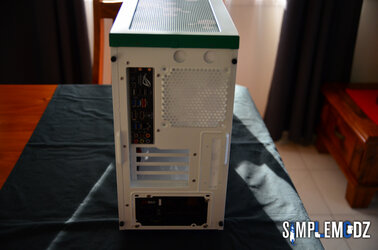

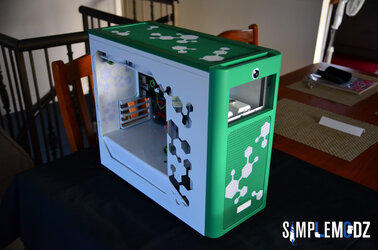

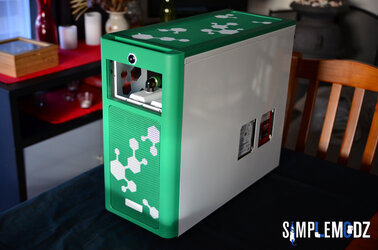

Also as you can see from these following pics, the two side panels have been painted white. I will give a closer look at them once I attach the clear acrylic.







I really hate seeing the stock Intel heatsink on but unfortunately this is the only rig I have that I can use at my desk.

Thanks for checking it out!

Cheers,

Alex



SSD window is unique and cool :)
The main window looks great too!

Really shows off the rig quite nice.
Planning some case lighting too?

Like seeing the SSD through the side,that's so cool.

Thanks, yea I like it too. Think it was a pretty good idea. I mainly just didn't want the back side panel to look so plain and I know people always like to showcase their SSDs so why not. I hope to replace both the SSD and the HDD with two larger SSDs :D. They will also get a custom paint job and custom vinyl stickers :D

SSD window is unique and cool :)
The main window looks great too!

Really shows off the rig quite nice.
Planning some case lighting too?

Thanks mate. Yup of course, I will be using some DarkSide Connect UV LED strips. It should really pop all the green and white colours nicely inside the system, the fluid will be Mayhems UV Emerald Green and the cables will be white and UV green. The green colour of the fluid and cables will match that of the fans :)

Looks great.

Does the pump vibrate on the plexi at all? I would think it would be noisy the way it is mounted.

Looks great.

Does the pump vibrate on the plexi at all? I would think it would be noisy the way it is mounted.

Thanks man :). I will need to test the pump further for noisy vibrations, still need to make the cable for it, cut and sleeved. Though I don't see why it would be noisy, instead of being mounted on the top of something like normally, it just hangs from underneath. If it does make some vibrations I will put some rubber washers between it and the shroud :)

OMG I totally missed that... pictures must not have loaded when I scrolled through the first time. :bang head


Hey guys,

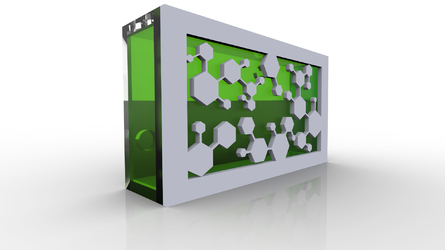

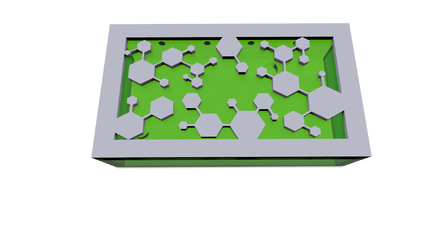

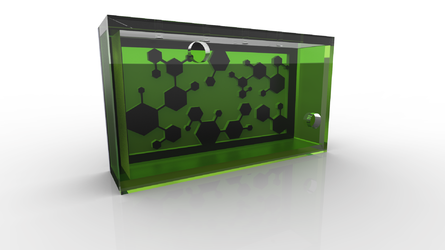

So if you couldn't tell from the renders, I will be getting a custom res. This will be going in the 5.25" bays of the case. Not sure if anyone picked up on this but in one of the earlier posts I did mention that something special will be going in the 5.25" bays.

Clockwerk Case Mods has been hard at work over the last few days making the res for me and it looks awesome! Make sure to check out their page!

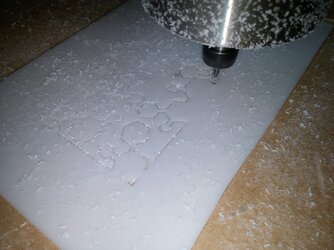

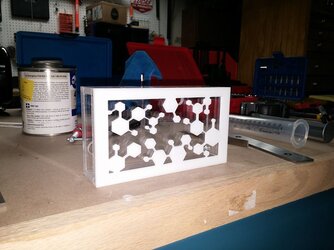

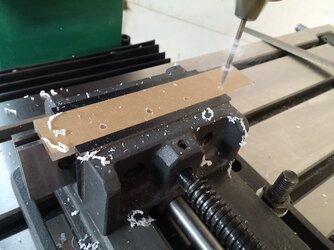

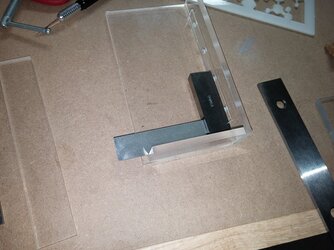

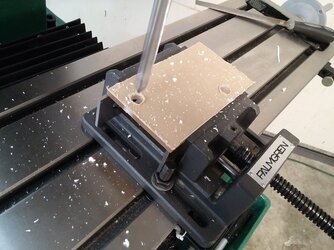

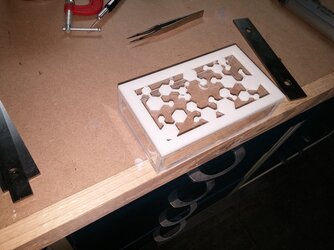

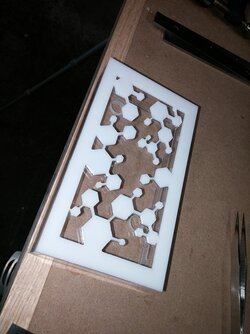

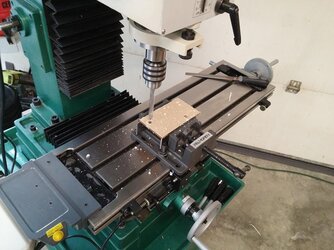

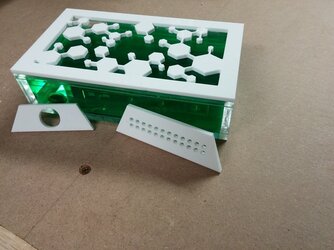

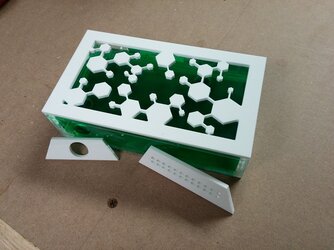

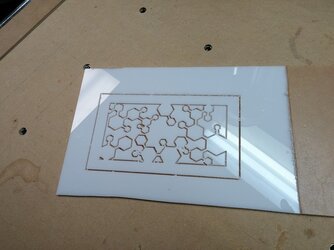

Here is the res in the making:

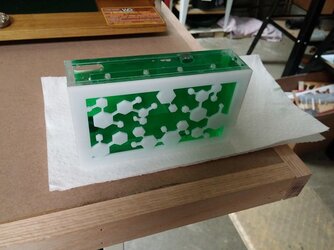

Leak testing with some Primochill green fluid!



I cannot wait to get my hands on this awesome res. It will be shipping out in a couple of days!

Thanks for checking it out guys.

Cheers,

Alex
