Help Me Understand what I want to do... VPN Talk

Overclockers is supported by our readers. When you click a link to make a purchase, we may earn a commission. Learn More.

TransformedBG

Member
Joined
Jul 24, 2013
Need a little help understanding what and why i want to do.

The basic Gist of it is i want my computer to look like this when i log on to and click the network button:

Now im pretty good at home networking, port forwarding and things like that. But I have never really set up a VPN (Which I am assuming is what i want). Now i have a non static IP address at my home and the destination that i want to talk to doesn't have one either. I am a bit of an ubiquiti fan boy and my house is set up with a USG, and a few Ubiqiti switches. The site that i want to connect to is my parents house and i want to network them together.

I understand the typically there is a VPN server and a VPN client. I want this network to go both ways. I want to be able to look at their files, Remote into their desktops for troubleshooting etc. and i want them to look at my pictures of kids and such. I was hoping maybe i can make it hardware driven so i wouldnt have to put a software VPN on computers, and i think this is possible but im not sure.

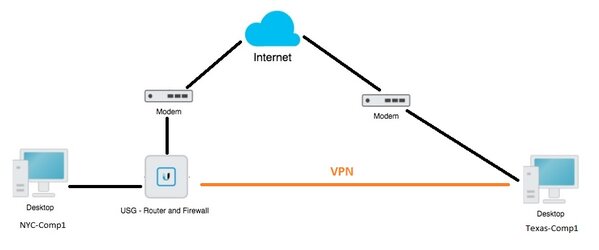

Right now this is how the network would look and i dont know if it is possible to make a VPN service like this:
I know this is a fairly simplistic drawing, but im hoping you can see where im going with this.

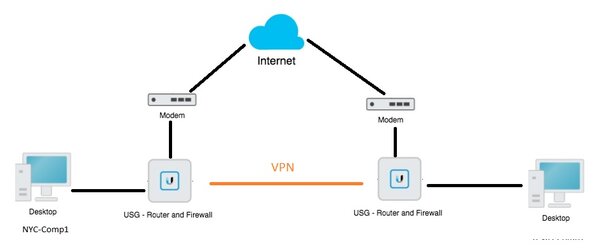

I do know the USG can do a site to site VPN which i assume would look like:
I think this would make a hardware vpn site to site, but im not sure.

If anyone could point me in the right direction, I would really appreciate it. Ive been on Youtube All day trying to figure this out.


Railgun

Member
Joined
May 7, 2011
Personally I’d opt for #2. Leave the routing and security functions to devices built for it.

And that’s pretty much a very simple but accurate drawing of what you’d build.

I too too have a bunch of Ubiquiti gear at home and may be doing something similar with family back stateside.

OP
TransformedBG

TransformedBG

Member
Joined
Jul 24, 2013
Personally I’d opt for #2. Leave the routing and security functions to devices built for it.

And that’s pretty much a very simple but accurate drawing of what you’d build.

I too too have a bunch of Ubiquiti gear at home and may be doing something similar with family back stateside.
But i am right in saying that if i had 2 USG's that i wouldnt have to input the VPN in the VPN setup in windows 10 right? it should be hardware based


Railgun

Member
Joined
May 7, 2011
That's right. In this case, using a site-to-site VPN, your folks' place is just another network you can talk to.

Now, that said, and I'm not a WINS guru, but there are a couple of additional things you need to setup for the PCs to see each other as though they were on the same local network as by default, they won't on a site-to-site. The advantage of this VPN however is that it enables other things to be possible...shared NAS for example or other non-PC specific devices.

What you CAN do however, is either map a network drive to the PC in question using the IP address, though for convenience, you probably want to setup WINS appropriately. Someone better experienced that I in that arena should answer. IIRC there needs to be some central server, and I don't know if one of those PCs can take that role.

OP
TransformedBG

TransformedBG

Member
Joined
Jul 24, 2013
That's right. In this case, using a site-to-site VPN, your folks' place is just another network you can talk to.

Now, that said, and I'm not a WINS guru, but there are a couple of additional things you need to setup for the PCs to see each other as though they were on the same local network as by default, they won't on a site-to-site. The advantage of this VPN however is that it enables other things to be possible...shared NAS for example or other non-PC specific devices.

What you CAN do however, is either map a network drive to the PC in question using the IP address, though for convenience, you probably want to setup WINS appropriately. Someone better experienced that I in that arena should answer. IIRC there needs to be some central server, and I don't know if one of those PCs can take that role.

That what i was thinking. Now the only thing im trying to figure out is the cloud key part of it. IM assuming that since i have it set up on my network, i should be able to just log in to my cloud key from their house and set it up there under a different site.


Railgun

Member
Joined
May 7, 2011
Yep. Just setup another site and add the relevant components. Should be just as easy as setting up the first site.
