Intel i7 920 Overclock

Overclockers is supported by our readers. When you click a link to make a purchase, we may earn a commission. Learn More.

Crungus

New Member
Joined
Jan 5, 2017

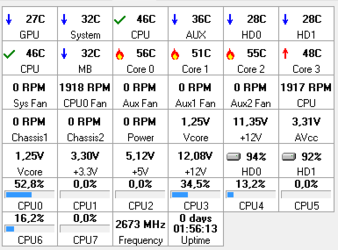

Hello there. I'm new to this forum so you'll have the excuse any errors I make. Basically, I wanna Overclock my CPU since it currently sits at 2.66 Ghz. I'm completely new to overclooking and I've never done it in my life before. I ran a quick check with Speedfan to check the heat and this is the result I got. Any help will be greatly appreciated.


Here are my system specs:
CPU - Intel Core i7-920, 2.66 Ghz (Link: http://ark.intel.com/products/37147/Intel-Core-i7-920-Processor-8M-Cache-2_66-GHz-4_80-GTs-Intel-QPI)
GPU - GeForce GTX 750 (Link: http://www.nvidia.com/gtx-700-graphics-cards/gtx-750/)
Motherboard - ASUSTek P6T SE (Link: https://www.asus.com/Motherboards/P6T_SE/)
RAM - 12 GBytes of DDR3
Windows 7 (6.1) Professional 64-bit
DirectX 11.0

If you need any more specs, I'll gladly post them here and as I said, any help is appreciated, thank you.

Last edited:

Witchdoctor

Member
Joined
Apr 12, 2014
Well before you start you want to make sure you have effective cooling
Beating the heat is job #1

what cooler are you using ?

OP
C

Crungus

New Member
Joined
Jan 5, 2017
I'm not sure. I got this PC for free from my mom's old workspace. Is there a way to check or will I have to open my PC? I know how to, I've replaced my GPU, CPU, Motherboard and Storage before.


Witchdoctor

Member
Joined
Apr 12, 2014
I would assume it is a stock Intel
I would leave well enough alone unless you are willing to invest into a better cooler.

I have not air cooled since the 90's so I would look to a better source for a good one
I Know a lot speak highly of the CM 212 Evo, that may be out of fashion though ?


Rainwater

Member
Joined
Nov 10, 2016
Location
Portland
From the sounds of it he has a fully enclosed case he has to "open" up and if he got it from his Mom's old workspace then I am sure it's not a showcase pc. Anyways point is fashion doesn't sound like an issue. But most definitely the first thing you need to invest in is an after market cpu cooler. The evo he listed is around 30 dollars and should be adequate enough to get you well over 3 Ghz. Also not sure what psu you have but it needs to be somewhat decent and somewhat powerful to get a decent overclock as well. But cooling is your number one priority all around. Case cooling and cpu cooling.


trents

Senior Member
Joined
Dec 27, 2008
Hold on now. If this is a an OEM workstation it my very well have a small form factor case or be a mini tower and the Coolermaster hyper 212 Evo would be too tall to fit into it, as would most or all 120mm fan based aftermarket tower coolers.

Crungus, what is the make and model of the PC?


Rainwater

Member
Joined
Nov 10, 2016
Location
Portland
Oh ya duh is it an i7-920 or an i7-920k because idk if you can overclock it anyway. Are those unlocked?

- - - Updated - - -

Nevermind, my bad there wasn't a k series on those.

OP
C

Crungus

New Member
Joined
Jan 5, 2017
I'll try and see if I can find out the model of the case. I know that's it's Acer and it's definately a tower. And it was not a showcase PC, my Mom works as an architect so they had to have decent PC's to use the programs they had.


trents

Senior Member
Joined
Dec 27, 2008
If nothing else, a picture of the tower would be helpful to get an idea of it's size. Actually, if you would measure across the top panel it would give an idea of how tall a cooler it would accommodate.


trents

Senior Member
Joined
Dec 27, 2008
From what information the OP has given, the motherboard looks to be an enthusiast class motherboard. So I would guess so. He gives a link in his system specs.

OP
C

Crungus

New Member
Joined
Jan 5, 2017
Sorry for the late replies. So I'm currently at my Dad's house and I have a different PC here so I won't be able to check what PSU I have nor can I take a picture/measure the case for now. I'll try to go over and see if I can measure it, take a picture of it and find out the model of my PSU and case.

Thanks for all the replies guys. Means alot :)


DeadSmiley

Member
Joined
Sep 3, 2001
After you get your cooling sorted, update to the latest BIOS. If you can swing it get a Xeon X5660 (6 cores/12 threads). It will most likely get 4.0GHz or better. Mine is running 4.37GHz. You can get the X5660 for $50 all day long on Ebay. It will kick the stuffing out of the i7-920.

OP
C

Crungus

New Member
Joined
Jan 5, 2017
Some updates:

Well, I'm back I guess. I opened up my PC, took some pictures and stuff and here's what I got.

The fan I'm currently using seems to be an Intel DC12V and my PSU is a Fractal Design Tesla 650W. I took some pictures of the PSU, cooler and case (I would upload them but they're too large)

http://i.imgur.com/c9o0I7x.jpg
http://i.imgur.com/Dd3T6QH.jpg
http://i.imgur.com/jRCHu2q.jpg
http://i.imgur.com/xDCxufL.jpg
http://i.imgur.com/I60aChe.jpg

And don't worry, I cleaned out all the dust with a can of compressed air and a toothbrush.


Attachments

  • IMG_6236.JPG
    2 MB · Views: 403

[email protected]

Member
Joined
Apr 7, 2016
Location
Israel
The PSU should be fine for overclocking. The cooler is a stock intel cooler, So get a decent cooler like the CM212 but before buying check if your case is big enough for that cooler.


Rainwater

Member
Joined
Nov 10, 2016
Location
Portland
Just from first glance it definitely looks like the case is big enough. If not then there are many after market air coolers that will fit. And like Mark said your psu should do just fine. I would recommend a can of duster. Or four. Lol Then lets get you overclocking.
