[MOD]Undercase/Back-lit mobo LED lights!

Overclockers is supported by our readers. When you click a link to make a purchase, we may earn a commission. Learn More.

JustDepends

Member
Joined
Dec 9, 2009
Location
Canada
Finally I got my lights in the mail from Beijing... LOL. Thought the address was kinda funny....

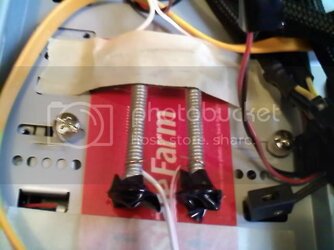

So basically to connect the lights i made my own terminal block from to bolts.....
It's cheaper and easier.

I wired the LEDS like so....

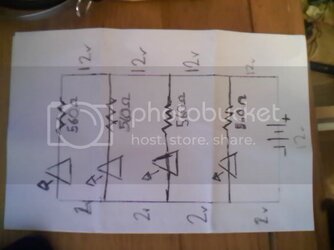

Here is the schematic(wrong LED symbol i know)...
Also i didn't use 560 ohms resistors cause the ones i got camewith different ones that worked for 12v

On my soldering station(laundry bin)...

Here is where i placed the LEDS under the case...

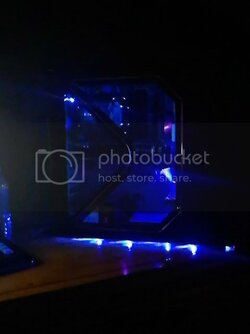

End product.....

OP
JustDepends

JustDepends

Member
Joined
Dec 9, 2009
Location
Canada
Now time for the back-lit MOBO...

Needed a new terminal block...

LEDS!:attn:....

How i placed them....

And the end result unerlights and all!!!!!!...

The picture does not do justice but trust me it is one cool effect.


Ben333

Folding for Team 32!
Joined
Feb 18, 2007
Don't get the whole taping wires to bolts purpose... but ok...

Looks nice, I would have soldered the LEDs to the board though for a better looking setup behind the scenes. The LEDs on the case bottom seem too temporary.


Dooms101

Member
Joined
Dec 28, 2009
Location
under a heatsink
It looks really awesome great idea. But... something tells me using massive bolts for a terminal block is a bad idea. If you pressed the metal side panel and it touched one of the bolts a lot of very bad things could happen. I would recommend finding a spare SATA adapter or PCI-e power adapter with a molex connector on it's end and cutting it off. Then you could just solder all the LED wires to the wires coming out of the molex connector and you wouldn't need those bolts. Also... the whole taping thing and wires scattered all around is really messy looking. Maybe try cutting the LED wires to shorter length or consider drilling holes in the bottom of the case and routing the wires inside so they're hidden. Looks cool from the outside

OP
JustDepends

JustDepends

Member
Joined
Dec 9, 2009
Location
Canada
Here's a little add-on.. actually a big add-on took a while to make it.

I figured out that the LEDS fit perfectly into the Antec 900 from cage covers... amazing i know.

Like a quarter way done...

Completely done!

Could not get a good picture of the lights...

It says Joe in case you can't tell..... and its red,orange,yellow for each letter. Hard to tell LOL.

OP
JustDepends

JustDepends

Member
Joined
Dec 9, 2009
Location
Canada
It looks really awesome great idea. But... something tells me using massive bolts for a terminal block is a bad idea. If you pressed the metal side panel and it touched one of the bolts a lot of very bad things could happen. I would recommend finding a spare SATA adapter or PCI-e power adapter with a molex connector on it's end and cutting it off. Then you could just solder all the LED wires to the wires coming out of the molex connector and you wouldn't need those bolts. Also... the whole taping thing and wires scattered all around is really messy looking. Maybe try cutting the LED wires to shorter length or consider drilling holes in the bottom of the case and routing the wires inside so they're hidden. Looks cool from the outside

I smothered the bolts in tape.... then I turned my computer on and I shook my case around to make sure there that it won't short circuit. I've been running smooth since then:D.

OP
JustDepends

JustDepends

Member
Joined
Dec 9, 2009
Location
Canada
Don't get the whole taping wires to bolts purpose... but ok...

Looks nice, I would have soldered the LEDs to the board though for a better looking setup behind the scenes. The LEDs on the case bottom seem too temporary.

The bolts are terminal block BTW, basically I connect the negative lead to the negative bolt and same for the positive. Its better then using like 50 molex connectors or connect them to one wire. I have to run them in parallel so this to me is the easiest solution.

Last edited:

JoshOohAh

Member
Joined
Dec 9, 2009
Location
Canada
Here's a little add-on.. actually a big add-on took a while to make it.

I figured out that the LEDS fit perfectly into the Antec 900 from cage covers... amazing i know.

Like a quarter way done...

Completely done!

Could not get a good picture of the lights...

It says Joe in case you can't tell..... and its red,orange,yellow for each letter. Hard to tell LOL.

THATS BAD @$$ MAKE ME ONE :D


Dooms101

Member
Joined
Dec 28, 2009
Location
under a heatsink
I smothered the bolts in tape.... then I turned my computer on and I shook my case around to make sure there that it won't short circuit. I've been running smooth since then.

You shook your case around!? Well then... poor thing =(
As long as it's okay now and nothing is short circuiting. The "Joe" light thing looks pretty cool. I actually think the mobo back lighting looks awesome, I think I might try it as well =)
