So I bought two 4770s last week because of the price and some of the nice overclocks I have been reading about only to find that I couldn't use my Swiftech MCW60 waterblocks to cool them. ATI change the spacing of the heatsink mounting holes from the previous design that had been in place on my previous 3 generations of ATI cards. The holes are now much close together. I didn't want to buy two new blocks if anyone even sold them and nobody has an adaptor yet so I had to come up with something on my own. For about $5 in hardware from your local Do It Best hardware store and a couple of tools you might already have lying about, you can modify your MCW60 waterblock and 4770 so that they will mate together nicely.
Mods: If this post belongs in the watercooling section, please feel free to move.
If anyone has any questions or is unclear on anything, please let me know.
The obligatory warning.
Any modding seen here is done at your own risk and you will void your warranty. Always work on an antistatic surface.
Hardware needed:
Multiply this x2 if you are running Crossfire like me.
4 #8 nylon flat washers @.19 each
8 5/32 ID 5/16 OD Fiber washers @.25 each
4 6-32 x 3/4 hex head screws @.35 each
4 6-32 nuts (already had these)
Tools
7/64" hex wrench
Thermal paste
Small round file
Razor blade or Exacto knife
Small head Phillips screwdriver
Step 1:
Remove the chrome mounting bracket and back plate from the waterblock. Put these in a safe place. You will need them again when ATI goes back to the old mounting holes on your next card.
Step 2:
Using a razor blade carefully cut the corners of the plastic cover where the mounting screws go in. If you don't do this, the extra plastic on that corner will cause the longer screws you will be using later to come out crooked.
Step 3:
Install the two 3/4" hex head screw into the two holes near the inlet / outlet ports first. Put the screws all the way through the plastic cover first before attempting to start them in the copper base. The inlet / outlet ports get in the way of these two holes. Make sure the screws will hang straight and are not stuck at an angle. If so remove them and trim more of the plastic corner off.
Step 4:
Start the two screws into the copper base. Alternate back and forth between the two screws until the copper base is tightened all the way down to the plastic top. After these two screws are tightened down then you can put the back two screws in with no problem.
Step 5:
Flip the waterblock over and add 1 fiber washer and 1 nylon washer as shown in the following photo. Put the waterblock aside, for now we go onto the video card.
Step 6:
Remove the stock heatsink and clean the factory thermal past off of the chip. The 4 holes that we will be enlarging are the stock heatsink mounting holes.
Step 7:
Using the small round file begin enlarging the 4 holes. Work slowly, blowing away debri as you go so you can see where you are at. When you are done a small metal ring will be left around the hole. I would not file the hole any larger than this because on the back there are some traces and components very close to these holes.
Step 8:
Try fitting the waterbock onto the video card. It should slide easily into place. If it does not go back and file the holes a little bit more. You may have to do this a few times until it goes together smoothly.
Step 9:
With the waterblock in place hold the card up to a light source and look at the space between the card and the waterblock. You should see the waterblock and the gpu making good contact. If they are not then you might have gotten too thick of spacers. If I had to do mine over I would have probably used rubber washers in place of the nylon. It would give you a little more play in how snug you can get the waterblock and gpu together. I have a little bit of light showing but that could mean that I need to lap my waterblock.
Step 10:
If all looks good then remove the heatink and apply your prefered thermal paste.
Step 11:
With thermal past applied and the waterblock in place, carefully turn the video card back over and put a fiber washer and nut over the exposed screws. Put the fiber washer under the nut so you don't short your board. Finger tighten these only. I would not suggest using a wrench to tighten them as this may crack something.
Step 12:

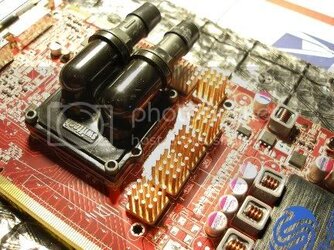

Apply some memory heatsinks while you have the card out of the case.
Step 13:

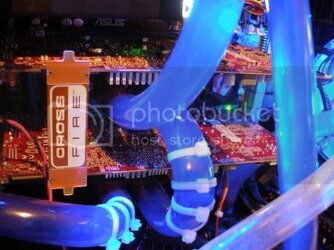

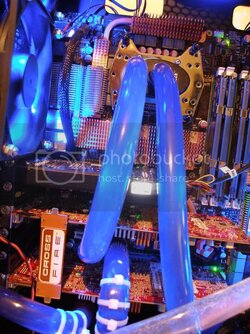

Install your card. Hookup the watercooling. Cross your fingers. Enjoy
Post Mod:
I have done this on both of my cards and they are both currently working great. I have not had a chance to do much overclocking yet but they are staying nice and cool at idle. I have the Sapphire 4770s. The next step is to flash them with the Asus bios so I can mess with voltages. I also want to remove the Sapphire name plate cover the voltage regulator chips and put some better cooling on them. The plate is only held on with thermal tape so it pops right off. You can feel some heat coming off it when you touch it. The memory heatsinks are also slightly warm so without a fan blowing on them they probably need something on them.
I will post pics later. I ran out of images for this post.
Mods: If this post belongs in the watercooling section, please feel free to move.
If anyone has any questions or is unclear on anything, please let me know.
The obligatory warning.
Any modding seen here is done at your own risk and you will void your warranty. Always work on an antistatic surface.
Hardware needed:
Multiply this x2 if you are running Crossfire like me.
4 #8 nylon flat washers @.19 each
8 5/32 ID 5/16 OD Fiber washers @.25 each
4 6-32 x 3/4 hex head screws @.35 each
4 6-32 nuts (already had these)
Tools
7/64" hex wrench
Thermal paste
Small round file
Razor blade or Exacto knife
Small head Phillips screwdriver
Step 1:
Remove the chrome mounting bracket and back plate from the waterblock. Put these in a safe place. You will need them again when ATI goes back to the old mounting holes on your next card.
Step 2:
Using a razor blade carefully cut the corners of the plastic cover where the mounting screws go in. If you don't do this, the extra plastic on that corner will cause the longer screws you will be using later to come out crooked.
Step 3:
Install the two 3/4" hex head screw into the two holes near the inlet / outlet ports first. Put the screws all the way through the plastic cover first before attempting to start them in the copper base. The inlet / outlet ports get in the way of these two holes. Make sure the screws will hang straight and are not stuck at an angle. If so remove them and trim more of the plastic corner off.
Step 4:
Start the two screws into the copper base. Alternate back and forth between the two screws until the copper base is tightened all the way down to the plastic top. After these two screws are tightened down then you can put the back two screws in with no problem.
Step 5:
Flip the waterblock over and add 1 fiber washer and 1 nylon washer as shown in the following photo. Put the waterblock aside, for now we go onto the video card.
Step 6:
Remove the stock heatsink and clean the factory thermal past off of the chip. The 4 holes that we will be enlarging are the stock heatsink mounting holes.
Step 7:
Using the small round file begin enlarging the 4 holes. Work slowly, blowing away debri as you go so you can see where you are at. When you are done a small metal ring will be left around the hole. I would not file the hole any larger than this because on the back there are some traces and components very close to these holes.
Step 8:
Try fitting the waterbock onto the video card. It should slide easily into place. If it does not go back and file the holes a little bit more. You may have to do this a few times until it goes together smoothly.
Step 9:
With the waterblock in place hold the card up to a light source and look at the space between the card and the waterblock. You should see the waterblock and the gpu making good contact. If they are not then you might have gotten too thick of spacers. If I had to do mine over I would have probably used rubber washers in place of the nylon. It would give you a little more play in how snug you can get the waterblock and gpu together. I have a little bit of light showing but that could mean that I need to lap my waterblock.
Step 10:
If all looks good then remove the heatink and apply your prefered thermal paste.
Step 11:
With thermal past applied and the waterblock in place, carefully turn the video card back over and put a fiber washer and nut over the exposed screws. Put the fiber washer under the nut so you don't short your board. Finger tighten these only. I would not suggest using a wrench to tighten them as this may crack something.
Step 12:
Apply some memory heatsinks while you have the card out of the case.
Step 13:
Install your card. Hookup the watercooling. Cross your fingers. Enjoy
Post Mod:
I have done this on both of my cards and they are both currently working great. I have not had a chance to do much overclocking yet but they are staying nice and cool at idle. I have the Sapphire 4770s. The next step is to flash them with the Asus bios so I can mess with voltages. I also want to remove the Sapphire name plate cover the voltage regulator chips and put some better cooling on them. The plate is only held on with thermal tape so it pops right off. You can feel some heat coming off it when you touch it. The memory heatsinks are also slightly warm so without a fan blowing on them they probably need something on them.
I will post pics later. I ran out of images for this post.
