Problem OC FX8150 with GA 97A UD3 rev 1.0 Mobo

Overclockers is supported by our readers. When you click a link to make a purchase, we may earn a commission. Learn More.

Grogger

Registered
Joined
May 6, 2020
Location
Denver, CO
So I'm new to overclocking. I've been reading a number of forums and guides. I upgraded on a budget from an fx 4100 and hyper 212 plus and hd4670 gpu.
I was able to overclock slightly and be stable just booting windows 7 at x19 cpu on a 200 mhz clock at auto voltage on cpu core. If I changed the stock voltage up or down slightly it became unstable just booting windows. I used the guide below which was for an asus mobo, but I suspect the principles are about the same. (my current hardware specs are below along with hw monitor and cpu z screenshot.) If this is about the best I can do stable, I might as well stay at stock and have the boost get me up to 4.2 occasionally rather than just be at 3.9 on all cores. Also I haven't even run any test software which would show whether it's actually stable using occt or prime95 or hyperpi.
Guide I used:
https://www.overclock.net/forum/10-amd-cpus/1350335-amd-fx-8150-oc-cm-hyper-212-evo.html

I've also been reading about LLC on cpu or load line control/calibration. Sounds like that is supposed to keep the voltages more stable as the cpu goes on higher loads. I couldn't however find any setting on my mobo bios for this. I have updated to the newest bios update for my board. It's old of course with the latest being perhaps 2013.

So I'm curious what you guys would suggest for trying to get a stable oc a bit higher given my current equipment???

Eventually I'd like to get a ryzen 5 2600x with a likely b450 mobo and ddr4 ram, but that's just not in the budget right now.

Thanks for any suggestions!!! Cheers!

cpu: Fx 8150
cooler: Coolermaster ML240L v2
mobo: Gigabyte GA 97A UD3 rev 1.0 on F8f bios
psu: Evga supernova 750 80plus bronze
ram: 4x4 Gskill ripjaws
hdd: m4 128 crucial ssd
WD 7200rpm 1tb
Seagate 160gb
gpu: Powercolor rx570 4gb
net adaper: Gigabyte GC-wb867d-i
case: Fractal design focus g
os: windows 7 fully updated

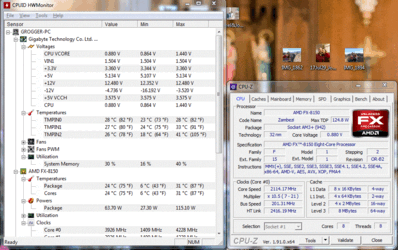

Current HW Monitor and CPU Z in a 68' F room.

- - - Auto-Merged Double Post - - -

P.S. My cpu-z scores are currently at stock on the CPU. I went back to the stock config since the 3.9 was barely stable and not much of a step up from stock.

- - - Auto-Merged Double Post - - -

Also, I don't believe heat on the cpu is at all the issue, since I believe the highest I've seen is around 46' C in a 75' F room while on the most demanding game I play.


PolRoger

Member
Joined
Jul 31, 2005
I would think that your listed setup/combo should be able to overclock (some??) beyond default stock auto settings.

It has been quite some time since I've run a 1st Gen Bulldozer or even the later 2nd Gen Piledriver (Vishera).

I looked briefly at that OCN guide thread link... You should give this OCF sticky linked Bulldozer OC Guide a read as the methods should be applicable for your setup as well.

https://www.overclockers.com/forums/showthread.php?t=688663

I still kept my old (retired) FX-8370 combo on the parts shelf... Maybe I'll try to fire it back up again?

I'm sure others will be along to comment further...


bassnut

Premium Member
Joined
Aug 16, 2009
I'm going to assume you meant GA 970A UD3 rev 1. There were allot of issues with the early revisions so don't be afraid to ask questions. Those older FX chips didn't really have great memory controllers, it might be advised at least for now to use just 2 sticks of ram till you get your OC stable just to help eliminate any issues from the ram.


trents

Senior Member
Joined
Dec 27, 2008
Tell us more about your RAM. All we know is the number of sticks and the total amount. What frequency are you running it at? Those CPUs, as bassnut said, had weak IMC's so it could be a challenge to run more than 8gb of RAM at more than 1866 mhz when overclocking.


PolRoger

Member
Joined
Jul 31, 2005
"bassnut" and "trents" both make valid points... It would be good to know a little more about your memory sticks?

Is it a quad kit or two separate dual kits? You should post up a CPUz SPD tab screen shot for one of your sticks if they are all the same.


I prefer to use HWiNFO64 vs. HW Monitor for CPU/Mobo/temps etc. Perhaps you could post up a screen shot showing your setup at stock/auto while stressing with something like AIDA64 CPU/FPU stress test for a starting point moving forward?


Here is my Vishera FX8370/ASUS CHV Formula-Z combo (auto) with AMD Wraith Prism cooler running at 1866 memory speed (open bench style)... My board auto/defaults normally to 1600 memory speed.


FX-8370 auto 1866C9.PNG

OP
Grogger

Grogger

Registered
Joined
May 6, 2020
Location
Denver, CO
Thanks Bassnut, you're right on with the Mobo. GA 970A UD3 rev. 1

I can definitely find the specs on the RAM and show what they're running at currently. They are 2 sets of 2 4gb chips, so thanks, makes sense to try with one 8 gig set first to build a stable cpu overclock.

PolRoger, Once I have a chance, I will pull up the suggested programs and get more info to show you guys.

Thanks so much!!


PolRoger

Member
Joined
Jul 31, 2005
After running a default/auto "base line" run with your combo so we can get an idea of BIOS voltage defaults...

I would test an initial overclock first with just 2 sticks at ~1600C9 memory speed and try to bump up your cpu from stock 18x200 (3.6) to 20X200 (4.0) with HTT and NB both set to 2200Mhz. Test to see how high your cpu can scale with just straight multi before trying out combinations of multi along with higher HTT/(bus) and higher hyper transport and CPU NB speeds. Once you get a better idea of how your cpu sample clocks then raise memory speeds, install additional sticks and tighten up memory timings.

FX8370 bumped from default/stock 4.0GHz (20x200) up to 4.4GHz (22x200):

FX-8370 4.4GHz 1866C9 AIDA64 stress.PNG


FX8370 ~4.3GHz (18.5x233) Hyper Transport Speed and NB speed both set to ~2560MHz with DDR3 1862C8 memory speed:

AIDA64 CPU/FPU stress:

FX-8370 4.3GHz 1862C8 AIDA64 stress.PNG

AIDA64 Cache/Memory stress:

FX-8370 4.3GHz 1862C8 AIDA64 mem cache stress.PNG

Stress CPU and Memory overclock tests separately.

One other thing that I recall from overclocking FX CPU is to monitor motherboard VRM temps. They can overheat on the motherboard which will limit overclocking potential. I have a 92mm fan running over my VRM heat sink. Note the difference in motherboard temp sensor #1 (VRM) between those last two AIDA64 runs.


trents

Senior Member
Joined
Dec 27, 2008
Gogger, please post some additional CPU-z pics. Click on the tab labeled "Memory" and also the tab labeled: "SPD" and post pics of them.

Assuming all your memory sticks are the same, that would supply all we need to know about your memory and the settings you are currently running it at.

Having said that, are all the sticks the same make and model and speed? While in the SPD tab of CPU-z click on the memory slot selection drop down box to check that if you are not sure.

OP
Grogger

Grogger

Registered
Joined
May 6, 2020
Location
Denver, CO
I took a pic of my RAM sticks. I put back in the 14900 older RAM. Realized the new 2 sticks I bought at 12800 since that's what seems to default on my mobo when with 2 sticks. Drops to 1333 when 4 sticks are in there. I suppose the weaker CPU memory controller you guys mentioned might be the reason for that.

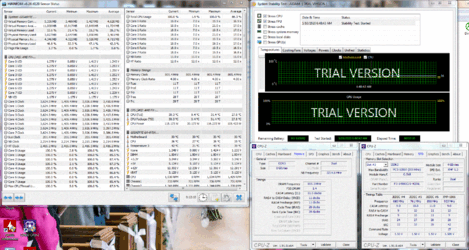

I also posted a pic of the other info you asked for. Including with a 10 min cpu/fpu stability test on AIDA64. That was with just the 8gb 2 older sticks of RAM.

RAM Specs.jpg


trents

Senior Member
Joined
Dec 27, 2008
Ah, the problem is apparent now. You are mixing RAM of Different speeds and timings. A no, no when overclocking.


PolRoger

Member
Joined
Jul 31, 2005
Yes... Two different non-matching kits.

The top kit is 1866 speed from 2011 with Micron IC lower density (2R) dual ranked/doubled sided with chips on both sides of the sticks (16 total).

The bottom kit is 1600 speed from 2020 with higher density (1R) one ranked/single sided with chips on just one side of the sticks (8 total). I not sure who manufactured the IC for that kit??

I would go ahead and test with the older 2011 1866 speed kit to find out what kind of overclocking margin your CPU/Mobo combo has?

You may be able to run both kits together but it is not ideal and it may impact your overclocking results.

After finding out the limits of your combo with the 1866 kit I'd test the 1600 kit by itself to see how it runs in comparison to the 1866 kit and then I'd follow up by testing with both kits together.


Edit:
From your base line run above It seems your cpu is showing a VID request of ~1.275v for 3.6GHz load and your board is drooping Vcore down to ~1.25v load. The NB speed defaults to 2200MHz while Hyper Transport speed is defaulting to 2400MHz speed. Memory speed/timings and voltage looks fine. I would suggest manually increasing Vcore in BIOS to ~1.375v and bumping up your multi to x20 (200x20=4.0) to see if you can boot into windows and run a quick test for stability? Also disable Core Performance Boost... You want to be running a straight all core clock of 4.0 with no additional boosting.

Last edited:

trents

Senior Member
Joined
Dec 27, 2008
And check your motherboard manual to see which slots should be populated when using only two sticks of RAM. Actually, I would recommend starting with the PC3 1600 mhz (aka, PC3 12800) kit first. It will put less strain on the Integated Memory Controller (IMC). A higher overclock of the CPU generally trumps running at a higher RAM frequency when push comes to shove.

OP
Grogger

Grogger

Registered
Joined
May 6, 2020
Location
Denver, CO
Ok, gotcha, mixing RAM is a no no!

I will try one set of RAM. I have it in the proper spots according to the mobo manual. I will try running the RAM at 1600 and whatever it defaults to on timings.

I get turning off the Core Performance Boost. Should I disable all of the power management stuff in the BIOS as well?


PolRoger

Member
Joined
Jul 31, 2005
It probably wouldn't hurt to disable the P.M. stuff and then when you finish dialing in your settings you could enable them again.

The 1866 speed kit has a 1600MHz JEDEC default of 11-11-11-28 at 1.5v (your current settings) and an 1866MHz XMP of 9-10-9-28 at 1.5v. I'm guessing that is the kit you originally bought back then along with your FX4100 and motherboard?

That kit will most likely also run at 9-9-9-24 timings 1600MHz speed as well. Testing/pushing your OC margin for the CPU/Mobo should be fine while running at 1600 speed 11-11-11...

OP
Grogger

Grogger

Registered
Joined
May 6, 2020
Location
Denver, CO
Ok on the P.M. stuff.

I can try the tighter timings on the RAM. Yes that's the kit I bought back in 2011 with the other hardware.

Also, info on 1 min stress at 3.6 with no CPBoost.

Also I linked a pic of my BIOS. The default cpu core voltage is 1.4125 as I read it. Should I drop it down to ~1.375v when I step up to x20 and 4.0?



PolRoger

Member
Joined
Jul 31, 2005
Leave memory at JEDEC 1600C11 for initial CPU OC margin testing. You want to find out how well the CPU clocks before addressing memory speeds and or timings.

That default ~1.4v Vcore is making allowance for Core Performance Boosting up to ~4.2GHz. Your chip should be able to run stock 3.6GHZ all core with no boosting at ~1.275v. I'm suggesting a trial/test for 4.0GHz all core with ~1.375v but it may actually need more Vcore?... Like ~1.40v/1.425v? You will have to test your combo to find out. :)

OP
Grogger

Grogger

Registered
Joined
May 6, 2020
Location
Denver, CO
ah gotcha. I left the ram at default settings for now.

Ok. I went back in BIOS and the "default" was showing as ~1.275. I stepped up .100 to ~1.375 and ran the 4.0ghz. info below.


I'm really grateful for the patience and detailed info. :)


Mr.Scott

Beamed Me Up!
Joined
Jun 9, 2013
Your screenshot is showing 1.275v for 4.0, with a max vcore of 1.312v.
That board vdroops like there's no tomorrow.


PolRoger

Member
Joined
Jul 31, 2005
Good start... You made it into Windows and ran a brief stress test!

Temps look OK but you will need to run longer stress tests to get a better idea of stability?

I'm assuming the LLC setting is on Auto? You have your BIOS Vcore set to ~1.375v but the load Vcore is drooping down to ~1.280v. You may want to adjust LLC so that load vcore only droops down to about ~1.325v/1.3375v.

Edit: Your board may also have some Vdrop... Where you set ~1.375v in BIOS and it will show ~1.325v at idle (or less) in Windows with CPUz of HWiNFO64.

Last edited:
