Blaylock

"That Backfired" Senior Member
Joined
Jun 5, 2013
Location
Go Blue!
OCF Recommended Cases

This is a list of PC cases and test benches that have been reviewed and tested to ensure you're getting exactly what you've paid for. It will also be a quick reference guide to those looking for a case for a new build or to find something to enhance and improve your current rig.

The case name is a hyperlink to the review and there is a Newegg or Amazon link at the bottom of each listing to get current pricing.


If you would like to request a case(s) to be added please feel free to PM me a link to a reputable review.

Here are some examples of good review sites:
https://www.overclockers.com/category/reviews/
http://www.anandtech.com
http://www.techpowerup.com
http://www.legitreviews.com/pc-cases

If you notice an error or own one of these cases and believe it should be removed from our list please let me know.

Full Tower

Anidees-Link

AI Crystal
  • Motherboard Support-EATX, ATX, microATX & Mini-ITX
  • Fan/Radiator Support
    • Front-up to 280mm or 360mm (3x 140mm White LED 1100RPM Fans included)
    • Rear-120mm/140mm (140mm White LED 1100RPM Fan included)
    • Top-up to 280mm or 360mm
    • Bottom-None
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • 2x USB 2.0
    • Headphone/Mic
    • Power Button
    • Reset Button
  • Drive Bays
    • External – None
    • Internal - 3x 3.5” & 3x 2.5"(Behind MB)
  • Clearances
    • Heat Sink-175mm
    • Graphics–410mm
  • Rear cable management-Yes (95mm)
  • Newegg Link

Azza-Link

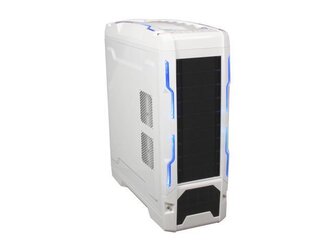

Genesis 9000-DISCONTINUED
azza genesis 9000.jpg
  • Motherboard Support-Mini-ITX, Micro ATX, ATX, E-ATX & XL-ATX
  • Fan/Radiator Support
    • Front-None
    • Rear-120mm(fan inluded)
    • Top-up to 480mm or 2x 230mm fans(included)
    • Bottom-240mm or 2x 140mm(fans included)
    • Right side-2x 120mm(fans only-included) & 200mm(L&R side panels are interchangable)
    • Left Side-2x 120mm (fans only)
  • Pump Mount-No
  • I/O Panel
    • 2x USB 2.0
    • 2x USB 3.0
    • 1x eSata
    • Headphone/Mic
    • Fan/LED Speed Toggle
    • Power button
    • Reset Button
  • Drive Bays
    • External – 9x 5.25″
    • Internal - 5x 2.5”/3.5” (2x include hot swap)
  • Clearances
    • Heat Sink-200mm
    • Graphics–400mm
    • PSU 2x 240mm
  • Rear cable management-Yes
  • Newegg Link

Be Quiet!-Link

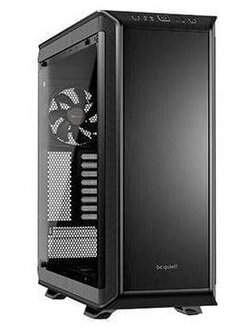

Dark Base Pro 900
db pro 900.JPG
  • Motherboard Support-E-ATX, XL-ATX, ATX, M-ATX, & MINI-ITX
  • Fan/Radiator Support
    • Front-up to 360mm or 420mm(2x 140mm 1,000 rpm SilentWings® PWM fans included)
    • Rear-120mm or 140mm (140mm 1,000 rpm SilentWings® PWM fan included)
    • Top- up to 180m, 360mm, or 420mm (Mounting point of 180mm radiator is c/c 154mm)
    • Bottom-120mm, 140mm or 280mm
  • Pump Mount-Yes
  • I/O Panel
    • 2x USB 3.0
    • 2x USB 2.0
    • Headphone/Mic
    • Power button
    • Reset button
    • Integrated charging pad for Qi enabled devices
    • Fan speed switch(inside door)
  • Drive Bays
    • External – 2x 5.25″(Inside door)
    • Internal - 7x 3.5” (removable and can house 14x 2.5”) & 1x 2.5" (behind Motherboard tray)
  • Clearances
    • Heat Sink-185mm
    • Graphics–325mm or 470mm(w/o drive cages)
    • PSU-150mm or 180mm (w/o bottom fan)
  • Rear cable management-Yes(28mm)
  • Newegg Link

Caselabs-Link-OUT OF BUSINESS

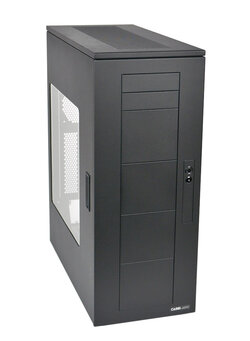

Merlin ST10-DISCONTINUED
  • Fan/Radiator Support (may require additional mounts)
    • Front-up to 480mm(80mm thick in push/pull confirmed)
    • Rear-120mm
    • Top-up to 480mm/420mm
    • Bottom-up to 480mm/420mm
  • Pump Mount-Yes(Accessory bracket)
  • I/O Panel
    • 2x USB 3.0 (optional)
    • Headphone/Mic (optional)
    • Power Button
    • Reset Button
  • Drive Bays
    • External – 14x 5.25″(Flex)
    • Internal - up to 18x 3.5”, up to 40x 2.5"
  • Clearances
    • Heat Sink-180mm
    • Graphics–up to 530mm(confirmed)
  • Rear cable management-Yes (38mm)
  • Caselabs Store Link

Cooler Master-Link

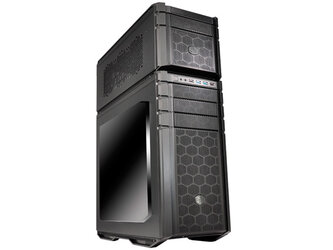

HAF Stacker 935 (HAF Stacker 925+HAF Stacker915R)-DISCONTINUED
  • Motherboard Support-EATX, ATX, microATX & Mini-ITX (915R)
  • Fan/Radiator Support
    • HAF 925
      • Front-2x 120mm (fans only-with cages) or 240mm (with cages removed)
      • Rear-120mm/140mm (140mm fan included)
      • Top-3x 120mm or 2x 140mm (w/ HAF 915R mounted under HAF 925)
      • Bottom-None
    • HAF 915R
      • Front-2x 92mm (fan only-included)
      • Rear-None
      • Top-None
      • Bottom-None
      • Right side-360mm or 480mm
      • Left side-360mm or 480mm
  • Pump Mount-No
  • I/O Panel (located on HAF925)
    • 2x USB 3.0
    • 2x USB 2.0
    • Headphone/Mic
    • Power Button
  • Drive Bays
    • HAF 925
      • External – 3x 5.25″
      • Internal - 3x 3.5”/2.5"(removeable) & 1x 2.5" (behind MB)
    • HAF 915R
      • Exterior-1x 5.25"
      • Interior-3x 3.5"/2.5"(removeable)
  • Clearances
    • Heat Sink-180mm
    • Graphics–354mm
  • Rear cable management-Yes
  • Newegg Link

HAF-X
  • Motherboard Support-Micro-ATX, ATX & E-ATX
  • Fan/Radiator Support
    • Front-up to 230mm(fan only)(230x30mm red LED fan 700RPM, 19dBA included)
    • Rear-120mm/140mm (140x25mm 1200RPM, 19dBA included)
    • Top-up to 360mm or 2x 200mm(1x 200x30mm 700RPM, 19dBA included)
    • Bottom-None
    • Side-200mm(fan only)(200x30mm 700RPM, 19dBA included)
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • 2x USB 2.0
    • e-SATA
    • Firewire
    • Headphone/Mic
    • Fan LED
    • Power switch
    • Reset switch
  • Drive Bays
    • External – 6x 5.25″(2x hot swap bays)
    • Internal - 5x 2.5”/3.5”
  • Clearances
    • Heat Sink-190mm
    • Graphics–342mm
  • Rear cable management-Yes(13mm-minimal)
  • Newegg Link

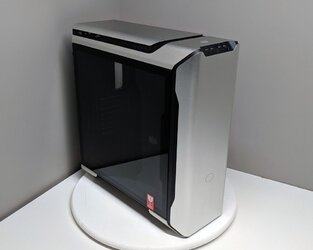

Mastercase SL600M
  • Motherboard Support-Mini-ITX, Micro-ATX, ATX & E-ATX(12"x10.7")
  • Fan/Radiator Support
    • Front-N/A
    • Rear-N/A
    • Top-up to 360mm, 280, or 2x 200mm(fans only)
    • Bottom-up to 360mm, 280mm, or 2x 200mm(Fans only)(2x 200mm PWM 800RPM fans included)
    • Side-N/A
  • Pump Mount-Yes(Multiple)
  • I/O Panel
    • 2x USB 3.0
    • 2x USB 2.0
    • 1x USB 3.1 Type-C
    • Headphone
    • Microphone
    • 4 position Fan Speed Switch
    • Power Button
    • Proximity Sensor
  • Drive Bays
    • External - N/A
    • Internal - 4x 2.5”/3.5” or up to 10x 2.5"
  • Clearances
    • Heat Sink - 191mm
    • Graphics - 318mm
    • PSU - 200mm
  • Rear cable management-Yes(20mm)
  • Amazon Link

Corsair-Link

Graphite 760T
  • Motherboard Support-Mini-ITX, Micro-ATX, ATX, EATX & XL-ATX
  • Fan/Radiator Support
    • Front-240mm/280mm
    • Rear-120mm/140mm
    • Top-360mm/280mm
    • Bottom-120mm
  • Pump Mount-No
  • I/O Panel
    • 2x USB 2.0
    • 2x USB 3.0
    • Headphone/Mic
    • Fan Speed Toggle
  • Drive Bays
    • External – 3x 5.25″
    • Internal - 6x 2.5”/3.5” in 2 included drive cages 4x 2.5” side-mounted
  • Clearances
    • Heat Sink-180mm
    • Graphics–340mm with drive cage, 460mm without
  • Rear cable management-Yes
  • Newegg Link

Graphite 780T
  • Motherboard Support-E-ATX, XL-ATX, ATX, mATX & mITX
  • Fan/Radiator Support
    • Front-360mm/280mm
    • Rear-120mm/140mm
    • Top-360mm/280mm
    • Bottom-240mm(w/ HDD cage removed)
  • Pump Mount-No
  • I/O Panel
    • 2x USB 2.0
    • 2x USB 3.0
    • Headphone/Mic
    • Fan Speed Switch (3 speeds)
    • Power Button
    • Reset Button
  • Drive Bays
    • External – 2x 5.25″
    • Internal - 6x 2.5”/3.5” in 2 included drive cages 3x 2.5” side-mounted
  • Clearances
    • Heat Sink-200mm
    • Graphics–355mm with drive cage
  • Rear cable management-Yes
  • Newegg Link

Obsidian 900D
  • Motherboard Support-ATX, Micro ATX, E-ATX, HPTX & Mini ITX
  • Fan/Radiator Support
    • Front-up to 360mm(3x 120mm fans included)
    • Rear-120mm/140mm (140mm fan included)
    • Top-up to 420mm or 480mm
    • Bottom-None
    • Sides-up to 2x 480mm or 2x 420mm
    • HDD-120mm(fan only)
  • Pump Mount-No
  • I/O Panel
    • 4x USB 2.0
    • 2x USB 3.0
    • Headphone/Mic
    • Power Button
    • Reset Button
  • Drive Bays
    • External – 4x 5.25″
    • Internal - 9x 2.5”/3.5” (3x are hot swap)
  • Clearances
    • Heat Sink-170mm
    • Graphics–500mm
    • PSU-280mm
  • Rear cable management-Yes
  • Newegg Link

Obsidian 750D
-CC-9011035-WW-Gallery-750D-0003j.jpg liianli.jpg
  • Motherboard Support-Mini-ITX, Micro-ATX, ATX, EATX & XL-ATX
  • Fan/Radiator Support
    • Front-240mm/280mm(2x 140mm fans included)
    • Rear-120mm/140mm (140mm fan included)
    • Top-up to 360mm or 280mm
    • Bottom-120mm w/cage or 240mm w/o cage
  • Pump Mount-No
  • I/O Panel
    • 2x USB 2.0
    • 2x USB 3.0
    • Headphone/Mic
    • Power Button
    • Reset Button
  • Drive Bays
    • External – 3x 5.25″
    • Internal - 6x 2.5”/3.5” & 4x 2.5"
  • Clearances
    • Heat Sink-170mm (review claims 180mm)
    • Graphics–340mm w/ cages or 460mm w/o cages
    • PSU-200mm(Corsair website claims 220mm)
  • Rear cable management-Yes (30mm)
  • Newegg Link

Fractal Design-Link

ARC XL
  • Motherboard Support-ATX, Micro ATX, Mini ITX, E-ATX & XL-ATX
  • Fan/Radiator Support
    • Front-240mm w/o cages
    • Rear-120mm/140mm
    • Top-240mm(thick) or 280mm(slim) or 360mm(slim)
    • Bottom-120mm
  • Pump Mount-No
  • I/O Panel
    • 2x USB 2.0
    • 2x USB 3.0
    • Headphone/Mic
    • Fan Speed Switch
    • Power Button
    • Reset Button
  • Drive Bays
    • External – 4x 5.25″
    • Internal - 8x 2.5”/3.5” & 2x 2.5” behind MB
  • Clearances
    • Heat Sink-180mm
    • Graphics–330mm with drive cage, 480mm without
  • Rear cable management-Yes
  • Newegg Link

Lian Li-Link

PC-V2130A/B/WX
  • Motherboard Support-HPTX, XL-ATX, ATX & Micro-ATX
  • Fan/Radiator Support
    • Front-240mm or 280mm(2x 140mm fans included)
    • Rear-120mm(120mm fan included)
    • Top-240mm or 280mm
    • Bottom-240mm or 280mm(2x 140mm fans included)
  • Pump Mount-No
  • I/O Panel (top of case)
    • 4x USB 3.0
    • Headphone/Mic
    • Power Button
    • Reset Button
    • Fan controller(inside door)
  • Drive Bays
    • External – 4x 5.25″
    • Internal - 8x 3.5" 4x 2.5" & 3x 2.5”/3.5”(behind MoBo)
  • Clearances
    • Heat Sink-180mm
    • Graphics–360mm with drive cage, 480mm without
    • PSU-200mm
  • Rear cable management-Yes(31mm)
  • Newegg Link

Nanoxia-Link

Deep Silence 5
  • Motherboard Support-E-ATX, XL-ATX, ATX, Micro-ATX & Mini-ITX
  • Fan/Radiator Support
    • Front-2x 140mm(likely fans only-2x 140mm fans included)
    • Rear-120mm/140mm(140mm fan included)
    • Top-240/280mm
    • Bottom-120/140mm (w/o cage)
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • 2x USB 2.0
    • Headphone/Mic
    • 2x fan speed switchs(inside door)
    • Power Button
    • Reset Button(inside door)
  • Drive Bays
    • External – 4x 5.25″ or 3x 5.25" & 1x 3.5"
    • Internal - 11x 2.5”/3.5”
  • Clearances
    • Heat Sink-185mm
    • Graphics–338mm with drive cage, 468mm without
  • Rear cable management-Yes
  • Amazon Link

NZXT-Link

Phantom 820
  • Motherboard Support-E-ATX, XL-ATX, ATX, MICRO-ATX & Mini-ITX
  • Fan/Radiator Support
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0(top)
    • 4x USB 2.0(top)
    • Headphone/Mic(top)
    • Fan Controller(top)(4x 15W/channel)
    • Power Button(top)
    • Reset Button(top)
    • SD Card reader(Inside door)
    • LED Color Controller(Inside door)
    • LED On/Off button(Inside door)
  • Drive Bays
    • External – 4x 5.25″
    • Internal - 6x3.5”/2.5”
  • Clearances
    • CPU Heat Sink-183mm(W/O side fan) or 153mm(with side fan)
    • Graphics–350mm(NZXT website claims 333mm)
  • Rear cable management-Yes(apx. 25mm)
  • Newegg Link

Phantom 630
pphantom 830j.jpg
  • Motherboard Support-XL-ATX, ATX, MICRO-ATX & Mini-ITX
  • Fan/Radiator Support
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • 2x USB 2.0
    • Headphone/Mic
    • Rear LED Switch
    • Fan Speed Switch (3 speeds)
    • Power Button
    • Reset Button
  • Drive Bays
    • External – 4x 5.25″
    • Internal - 6x3.5” 2x 2.5”(behind MB)
  • Clearances
    • CPU Heat Sink-200mm
    • Graphics–325mm with drive cage, 507mm without
  • Rear cable management-Yes(30mm)
  • Newegg Link

Phantom 530
  • Motherboard Support-ITX, Micro-ATX, ATX & EATX (322x272mm)
  • Fan/Radiator Support
    • Front-240mm/280mm or 1x200mm (1x200mm fan included)
    • Rear-120mm/140mm (1x140mm fan included)
    • Top-240/280/360mm or 400mm(NOTE: fans will only fit above rad in pull config due to MB clearance)
    • Bottom-120mm
    • Internal-120mm/140mm
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • Headphone/Mic
    • Rear LED Button
    • Fan Speed Switch (3 speeds)
    • Power Button
    • Reset Button (inside front door)
  • Drive Bays
    • External – 3x 5.25″
    • Internal - 6x 2.5”/3.5” 6x 2.5” 1x 2.5" behind MB
  • Clearances
    • Heat Sink-183mm (Mis-print in Review-verified with NZXT website)
    • Graphics–310mm with drive cage, 444mm without
  • Rear cable management-Yes
  • Newegg Link

Phanteks-Link

Enthoo Primo
  • Motherboard Support-ATX, EATX, mATX & SSI EEB
  • Fan/Radiator Support
    • Front-up to 240mm (or 2x 140mm fans only)(2x 140mm LED fans included)
    • Rear-120mm/140mm (140mm fan included)
    • Top-up to 420mm or 480mm(140mm fan included)
    • Bottom-up to 280mm or 480mm(140mm fan included)
    • Side-240mm (w/o cages) or 2x 140mm (fans only)
  • Pump Mount-Yes
  • I/O Panel
    • 2x USB 2.0
    • 2x USB 3.0
    • Headphone/Mic
    • LED switch
    • Power Button
    • Reset Button
  • Drive Bays
    • External – 5x 5.25″
    • Internal - 6x 2.5”/3.5” & 4x 2.5”
  • Clearances
    • Heat Sink-207mm
    • Graphics–257mm with bracket, 350mm without
    • PSU-240mm
  • Rear cable management-Yes (30mm)
  • Newegg Link

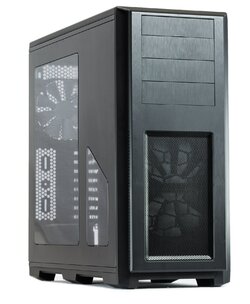

Enthoo Pro
  • Motherboard Support-ATX, EATX, mATX & SSI EEB
  • Fan/Radiator Support
    • Front-up to 240mm or 2x 140mm(fans only) or 200mm(fan only-included)
    • Rear-120mm/140mm (140mm fan included)
    • Top-up to 360mm or 420mm or 200mm(fan only)
    • Bottom-up to 240mm or 140mm(fan only)
    • HDD-2x 120mm(fans only)
  • Pump Mount-No
  • I/O Panel
    • 2x USB 2.0
    • 2x USB 3.0
    • Headphone/Mic
    • Reset Button
    • Power Button (Top)
  • Drive Bays
    • External – 3x 5.25″
    • Internal - 6x 2.5”/3.5” & 1x 2.5(behind MoBo)”
  • Clearances
    • Heat Sink-193mm
    • Graphics–347mm(with cages), 472mm(w/o cages)
    • PSU-Not Listed
  • Rear cable management-Yes (27mm)
  • Newegg Link

Enthoo Luxe
enthoo luxe.jpg
  • Motherboard Support-ATX, EATX, uATX & SSI EEB
  • Fan/Radiator Support
    • Front-up to 240mm or 2x 140mm fans only or 200mm fan only(included)
    • Rear-120mm/140mm (140mm fan included)
    • Top-up to 360mm(65mm thick) or 420mm(65mm thick) or 200mm(fan only)(140mm fan included)
    • Bottom-240mm or 140mm
    • HDD-2x 120mm(fans only)
  • Pump Mount-Yes
  • I/O Panel
    • 2x USB 2.0
    • 2x USB 3.0
    • Headphone/Mic
    • LED switch
    • Reset Button
    • Power Button(TOP)
  • Drive Bays
    • External – 3x 5.25″
    • Internal - 7x 2.5”/3.5” & 2x 2.5”
  • Clearances
    • Heat Sink-193mm
    • Graphics–347mm w/ HDD cages, 472mm w/o cages
  • Rear cable management-Yes (27mm)
  • Newegg Link

Rosewill-Link

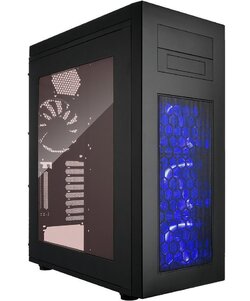

Rise & Rise Glow(Front LED fans)
  • Motherboard Support-SSI-EEB, SSI-CEB, Extended ATX, ATX & Micro-ATX
  • Fan/Radiator Support
    • Front-upto 360mm(verify rad size-some will not fit)(80mm total thickness max)(3x 120mm fans included)
    • Rear-120mm/140mm & 80mm(140mm Fan included)
    • Top-up to 240mm/280mm(15mm&20mm spacing supported)(100mm total thickness max)
    • Bottom-120mm(Verify PSU clearance)
    • Side-None
  • Pump Mount-No
  • I/O Panel (Top)
    • 2x USB 3.0
    • 4x USB 2.0
    • Headphone/Mic
    • Power Button
    • Reset Button
  • Drive Bays
    • External – 1x 5.25″ & 1x 5.25" or 3.5"
    • Internal - 2x 3.5”/2.5"(removable) & 2x 2.5”(behind MoBo tray)
  • Clearances
    • Heat Sink-180mm
    • Graphics–Unrestricted
  • Rear cable management-Yes(20mm min)
  • Newegg Link

Silverstone-Link

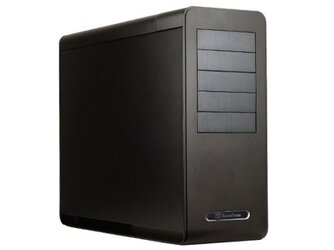

Fortress 2 - FT02B-W USB3.0
  • Motherboard Support-SSI CEB, ATX, Micro-ATX, & Mini-ITX
  • Fan/Radiator Support
    • Front-None
    • Rear-None
    • Top-120mm
    • Bottom-3x180mm or 240mm(w/ included bracket. Appears to be 20mm spacing-TBD)
    • Side-None
  • Pump Mount-No
  • I/O Panel(Top)
    • 2x USB 3.0
    • Headphone/Mic
    • Power Button
    • Reset Button
  • Drive Bays
    • External – 5x 5.25″
    • Internal - 5x 3.5”/2.5" & 1x 2.5”
  • Clearances
    • Heat Sink-165mm
    • Graphics–Support 254mm or 310mm (with fan grille removed), width restriction-170mm
    • PSU-330mm
  • Rear cable management-Yes
  • Newegg Link

Primera PM01
  • Motherboard Support-ATX & Micro-ATX
  • Fan/Radiator Support
    • Front-up to 360mm or 280mm (3x 140mm LED fans included - 420mm Rad TBD)
    • Rear-120mm/140mm (140mm fan included)
    • Top-up to 360mm or 280mm(33mm Max Thickness)
    • Bottom-None
    • Side-None
  • Pump Mount-No
  • I/O Panel(Top)
    • 2x USB 2.0
    • 2x USB 3.0
    • Headphone/Mic
    • Power Button
    • LED Mode Button
  • Drive Bays
    • External – None
    • Internal - 4x 3.5”/2.5" & 5x 2.5”
  • Clearances
    • Heat Sink-180mm
    • Graphics–Support up to 419mm, width restriction-174mm
    • PSU-240mm
  • Rear cable management-Yes
  • Newegg Link

Raven RV04
  • Motherboard Support-SSI-EEB, SSI-CEB, Extended ATX, ATX & Micro-ATX
  • Fan/Radiator Support
    • Front-2x 180mm(fans only-included)
    • Rear-120mm
    • Top-None
    • Bottom-None
    • Side-None
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0(right side)
    • Headphone/Mic(right side)
    • 2x Fan Speed Switch-3 position(inside door)
    • Power Button (inside door)
    • Reset Button (inside door)
  • Drive Bays
    • External – 2x 5.25″
    • Internal - 7x 3.5”(2 hot swappable) 4x 2.5”
  • Clearances
    • Heat Sink-165mm
    • Graphics–338mm (170mm width w/VGA support bracket)
  • Rear cable management-Yes
  • Newegg Link

Thermaltake-Link

Chaser A71
  • Motherboard Support-9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) & 12” x 13” (Extend ATX)
  • Fan/Radiator Support
    • Front-200mm(fan only-included)
    • Rear-120mm (Turbo fan included)
    • Top-200mm (fan only-Blue LED fan included) or 240mm
    • Bottom-120/140mm
    • Side-200mm(Blue LED fan included)
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • 2x USB 2.0
    • Headphone/Mic
    • Power Button
    • Reset Button
  • Drive Bays
    • External – 3x 5.25″ 1x 3.5" 1x 2.5/3.5" Hot swap dock (top)
    • Internal - 5x 2.5/3.5”
  • Clearances
    • Heat Sink-160mm
    • Graphics–344mm
  • Rear cable management-Yes
  • Newegg Link

Last edited:
OP
Blaylock

Blaylock

"That Backfired" Senior Member
Joined
Jun 5, 2013
Location
Go Blue!
Mid Tower

Antec-Link

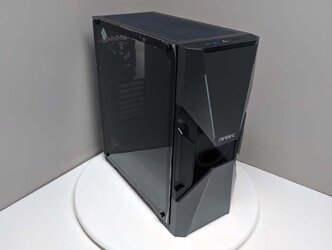

DA601 Dark Avenger
  • Motherboard Support-E-ATX(12" x 11"), ATX, Micro-ATX, & mITX
  • Fan/Radiator Support
    • Front-up to 360 or 280mm(58mm max thickness)(120mm ARGB fan included)
    • Rear-120mm (120mm fan included)
    • Top-up to 360 or 280mm(60mm max thickness)
    • Bottom-None
    • Left Side-None
    • Right Side-None
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • HD Audio In & Out
    • Power button
    • Reset Button
    • ARGB Button
  • Drive Bays
    • External–None
    • Internal-2x 3.5”/2.5" & 5x 2.5”
  • Clearances
    • CPU Cooler-165mm
    • GPU Length–400mm
    • PSU-200mm
  • Rear cable management-22mm (adequate)
  • Newegg Link

P101 Silent
  • Motherboard Support-E-ATX, ATX, Micro-ATX, & mITX
  • Fan/Radiator Support
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • 2x USB 2.0
    • Headphone/Mic
    • Power button
    • Reset Button
    • 3 speed fan controller(High/Stop/Low)
  • Drive Bays
    • External–1x 5.25″(Behind front door)
    • Internal-8x 3.5”/2.5" & 2x 2.5”
  • Clearances
    • CPU Cooler-180mm
    • GPU Length–450mm
  • Rear cable management-Yes(marginal-18mm)
  • Newegg Link

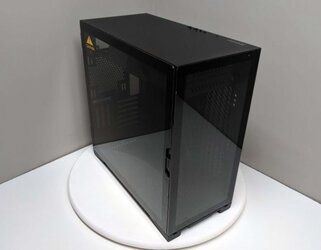

P120 Crystal
  • Motherboard Support-E-ATX, ATX, Micro-ATX, & mITX
  • Fan/Radiator Support
    • Front-None
    • Rear-120mm or 140mm
    • Top-None
    • Bottom-Up to 360mm (110mm max total thickness) or 3x 140mm Fans
    • Left Side-None
    • Right Side-Up to 360mm or 2x 140mm Fans (HDD Caddies must be removed)
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0 (white LED)
    • HD Audio In & Out
    • Power button
    • Reset Button
  • Drive Bays
    • External–None
    • Internal-2x 3.5”/2.5" & up to 3x 2.5”
  • Clearances
    • CPU Cooler-185mm
    • GPU Length–450mm
    • PSU-294mm
  • Rear cable management-22mm(adequate)
  • Newegg Link

be quiet!-Link

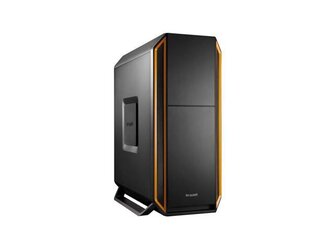

Base 800-Discontinued
base 800.jpg
  • Motherboard Support-ATX, Micro-ATX & mini-ITX
  • Fan/Radiator Support
    • Front-120mm/140mm or 2x 120mm/140mm(Fans only)([email protected] rpm fans included)
    • Rear-120mm ([email protected] rpm fan included)
    • Top- up to 240mm/280mm
    • Bottom-120mm/140mm
    • Left Side-120mm(Fan only)
    • Right Side-120mm(Fan only)
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • 2x USB 2.0
    • Headphone/Mic
    • Power button
  • Drive Bays
    • External – 3x 5.25″
    • Internal - 7x 3.5” 4x 2.5”
  • Clearances
    • Heat Sink-170mm(w/o left side pane fan)
    • Graphics–290mm or 400mm(w/o middle drive cage)
  • Rear cable management-Yes(marginal-21mm)
  • Newegg Link

Base 600-Discontinued
base 600.jpg
  • Motherboard Support-ATX, Micro-ATX & mini-ITX
  • Fan/Radiator Support
    • Front-120mm/140mm (140mm be quiet! Pure Wing 2 900rpm fan included)
    • Rear-120mm (120mm be quiet! Pure Wings 2 1,200rpm fan included)
    • Top- 120mm/140mm or 240mm
    • Bottom-120mm/140mm
    • Right Side-120mm(Fan only)
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • 2x USB 2.0
    • Headphone/Mic
    • Power button
    • Reset Button
  • Drive Bays
    • External – 3x 5.25″
    • Internal - 3x 3.5” 3x 2.5”(2x behind MoBo Tray)
  • Clearances
    • Heat Sink-170mm
    • Graphics–294mm or 413mm(w/o drive cage)
    • PSU-290mm(w/o bottom fan) or 160mm (w/ bottom fan)
  • Rear cable management-Yes(marginal-22mm)
  • Newegg Link

Pure Base 500DX
  • Motherboard Support-Mini-ITX, Micro-ATX, & ATX
  • Fan/Radiator Support
    • Front-up to 360mm or 280mm (1x ‘Pure Wings 2’ 140 mm fan included)
    • Rear-120mm or 140 mm (140mm be quiet! Pure Wings 2 fan included)
    • Top- up to 240mm or 140mm (1x ‘Pure Wings 2’ 140 mm fan included)
    • Bottom-None
    • Right Side-None)
  • Pump Mount-No
  • I/O Panel
    • USB 3.2 Gen 1 x 1
    • USB 3.2 Gen 2 Type-C x 1
    • HD Audio In & Out
    • ARGB button
    • Power button
  • Drive Bays
    • External – None
    • Internal - 2x 3.5”/2.5" 4x 2.5”(2x behind MoBo Tray)
  • Clearances
    • CPU Heat Sink-195mm
    • Graphics– 369mm
    • PSU-up to 285mm
  • Rear cable management-Yes(25mm)
  • Newegg Link

Cooler Master-Link

H500P Mesh
  • Motherboard Support-Mini-ITX, Micro-ATX, ATX, & E-ATX(12" x 10.7")
  • Fan/Radiator Support
    • Front-up to 2x 200mm(fans only), 360mm or 240mm (2x200mm 800RPM RGB fans included)
    • Rear-120/140mm (140mm 1200RPM Fan included)
    • Top-up to 2x200(fans only), 360mm, or 280mm (70mm total Rad clearance)
    • Bottom-None
    • Left Side-None
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • 2x USB 2.0
    • Headphone/Mic
    • Power button
    • Reset/RGB Button
  • Drive Bays
    • External–None
    • Internal-2x 2.5"/3.5” & 2x 2.5”(6x 2.5" possible per review)
  • Clearances
    • Heat Sink-190mm
    • Graphics–412mm
    • PSU-ATX PS2
  • Rear cable management-Yes(25mm)
  • Newegg Link

N600
  • Motherboard Support-microATX & ATX
  • Fan/Radiator Support
    • Front-2x 120mm or 1x 140mm (Fan only-120mm White LED fan included)
    • Rear-120mm (Fan included)
    • Top- 240mm/280mm
    • Bottom-120mm
    • Left Side-2x 120mm or 180/200mm (fan only-non window model)
    • Right Side-240mm
    • HDD Cage-120mm (internal)
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • 2x USB 2.0
    • Headphone/Mic
    • Power button
    • Reset Button
  • Drive Bays
    • External – 3x 5.25″
    • Internal - 7x 3.5” 5x 2.5”
  • Clearances
    • Heat Sink-167mm
    • Graphics–430mm
  • Rear cable management-Yes(marginal)
  • Newegg Link

Corsair-Link

Carbide 88R (Review not available yet)
  • Motherboard Support-Mini-ITX, MicroATX
  • Fan/Radiator Support
    • Front-up to 240mm
    • Rear-120mm(120mm fan included)
    • Top- 2x 120mm(240mm rad is possible but has restrictions. Description)
    • Bottom-none
    • Side-none
  • Pump Mount-No
  • I/O Panel
    • 1x USB 3.0
    • 1x USB 2.0
    • Headphone/Mic
    • Power button
    • Reset Button
  • Drive Bays
    • External – 1x 5.25″
    • Internal - 2x 2.5” (behind MB Tray) & 2x 3.5”(Removable/Reversible Cage)
  • Clearances
    • Heat Sink-150mm
    • Graphics–383mm
  • Rear cable management-Yes(apx 13mm)
  • Newegg Link

Carbide 400C
  • Motherboard Support-E-ATX, ATX, MicroATX & Mini-ITX
  • Fan/Radiator Support
    • Front-up to 280mm or 360mm(140mm fan included)
    • Rear-120mm(120mm fan included)
    • Top-up to 240mm(or 2x 140mm fans only)
    • Bottom-None
    • Side-None
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • Headphone/Mic
    • Power button
    • Reset Button
  • Drive Bays
    • External–None
    • Internal-2x 3.5" & 3x 2.5”
  • Clearances
    • Heat Sink-170mm
    • Graphics–370mm
    • PSU-190mm
  • Rear cable management-Yes
  • Newegg Link

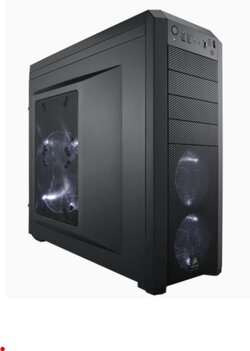

Carbide 500R
  • Motherboard Support-Mini-ITX, MicroATX, ATX, E-ATX
  • Fan/Radiator Support
    • Front-up to 240mm(15mm spacing)(2x 120mm fans included)
    • Rear-120mm/140mm(120mm fan included)
    • Top- 240mm/280mm(15mm spacing)
    • Bottom-120mm/140mm
    • Side-200mm or 2x 120mm/140mm(fans only)(200mm fan included)
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • Firewire
    • Headphone/Mic
    • Power button
    • Reset Button
    • LED on/off switch
    • 3 speed fan controller (PWM)
  • Drive Bays
    • External – 4x 5.25″
    • Internal - 6x 2.5”/3.5”
  • Clearances
    • Heat Sink-180mm
    • Graphics–316mm (452mm w/o HDD cage)
  • Rear cable management-Yes
  • Newegg Link

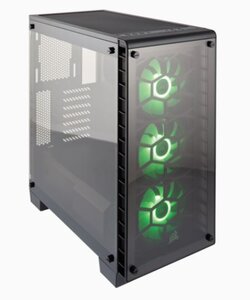

Crystal 460X & 460X RGB
  • Motherboard Support-Mini-ITX, MicroATX, & ATX
  • Fan/Radiator Support
    • Front-up to 360mm or 280mm(3x 120mm SP120 RGB fans included)
    • Rear-120mm
    • Top-up to 240mm or 2x 140mm(fans only)
    • Bottom-None
    • Side-None
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • Headphone/Mic
    • Power button
    • Reset Button
    • 3 Button RGB Controller
  • Drive Bays
    • External – None
    • Internal - 3x 2.5” & 2x 3.5”
  • Clearances
    • Heat Sink-165mm
    • Graphics–370mm
    • PSU-200mm
  • Rear cable management-Yes(Minimal)
  • Newegg Link

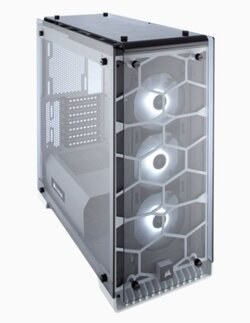

Crystal 570X RGB
  • Motherboard Support-Mini-ITX, MicroATX, & ATX(up to 272mm)
  • Fan/Radiator Support
    • Front-up to 360mm or 280mm(3x 120mm SP120 RGB fans included)
    • Rear-120mm
    • Top-up to 240mm or 2x 140mm(fans only)
    • Bottom-None
    • Side-None
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • Headphone/Mic
    • Power button
    • 3 Button RGB Controller
  • Drive Bays
    • External – None
    • Internal - 2x 2.5” & 2x 3.5”
  • Clearances
    • Heat Sink-170mm
    • Graphics–370mm
    • PSU-225mm
  • Rear cable management-Yes(Minimal)
  • Newegg Link

Obsidian 550D
  • Motherboard Support-ATX & mATX
  • Fan/Radiator Support
    • Front-240mm(15mm spacing)(2x 120mm fans included)
    • Rear-120mm/140mm (120mm PWM fan included)
    • Top-up to 240mm/280mm(15mm spacing)
    • Bottom-120/140mm
    • Side-2x120/140mm or 1x200mm(fan only)
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • Headphone/Mic
    • Power Button
    • Reset Button
  • Drive Bays
    • External – 4x 5.25″
    • Internal - 6x 2.5”/3.5”
  • Clearances
    • Heat Sink-180mm
    • Graphics–318mm
    • PSU-180mm
  • Rear cable management-Yes
  • Newegg Link

Obsidian 450D
  • Motherboard Support-Mini ITX, Micro ATX, ATX & E-ATX
  • Fan/Radiator Support
    • Front-240mm/280mm
    • Rear-120mm
    • Top- 360mm/280mm
    • Bottom-240mm
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • Headphone/Mic
    • Power button
    • Reset Button
  • Drive Bays
    • External – 2x 5.25″
    • Internal - 3x 2.5”/3.5” 2x 2.5”
  • Clearances
    • Heat Sink-165mm
    • Graphics–430mm/apx 255mm with additional cage added
  • Rear cable management-Yes
  • Newegg Link

Obsidian 350D-Discontinued
  • Motherboard Support-Mini-ITX & microATX
  • Fan/Radiator Support
    • Front-240mm/280mm(140mm fan included)
    • Rear-120mm(120mm PWM fan included)
    • Top-up to 240mm/280mm
    • Bottom-None
    • Side-None
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • Headphone/Mic
    • Power Button
    • Reset Button
  • Drive Bays
    • External – 2x 5.25″
    • Internal - 3x 2.5” & 2x 2.5"/3.5”
  • Clearances
    • Heat Sink-160mm
    • Graphics–380mm
    • PSU-180mm
  • Rear cable management-Yes (apx 20mm)
  • Newegg Link

Graphite 230T-Discontinued
  • Motherboard Support-ATX, Micro ATX & Mini ITX
  • Fan/Radiator Support
    • Front-2x120 fans only(fans included)
    • Rear-120mm(fan included)
    • Top- 240mm/280mm-rad clearance maybe an issue
    • Bottom-120mm/140mm
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • Headphone/Mic
    • Power button
    • Reset Button
  • Drive Bays
    • External – 3x 5.25″
    • Internal - 4x 3.5” 4x 2.5”
  • Clearances
    • Heat Sink-Not Listed
    • Graphics–320mm
  • Rear cable management-Yes but inadequate
  • Newegg Link

Enermax-link

iVektor
  • Motherboard Support-Micro ATX & ATX
  • Fan/Radiator Support
    • Front-2x 120mm (fans only-1x 120mm LED fan included)
    • Rear-120mm (fan included)
    • Top-240mm (potential typo of 2x140mm in review write-up)
    • Bottom-120mm
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • 2x USB 2.0
    • Headphone/Mic
    • Power button
    • Reset Button
    • Fan Speed Control
  • Drive Bays
    • External – 3x 5.25″
    • Internal - 4x 3.5"/2.5" & 3x 3.5"
  • Clearances
    • Heat Sink-179mm
    • Graphics–Not Listed
  • Rear cable management-Yes
  • Newegg Link

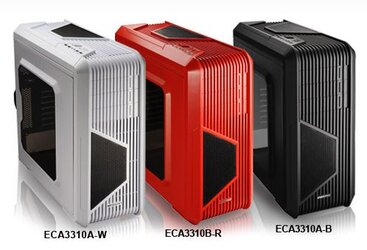

Ostrog GT

  • Motherboard Support-Micro ATX & ATX
  • Fan/Radiator Support
    • Front-2x 120/140mm (fans only-2x 140mm Red or Blue LED fans included)
    • Rear-120mm (fan included)
    • Top-230mm, 200mm or 2x 120/140mm (fans only-Enermax claims 240/280mm but reviewer disproves this claim)
    • Bottom-120mm (w/o SSD Cage)
    • Internal-2x 120mm (fans only)
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • 2x USB 2.0
    • Headphone/Mic
    • Power button
    • Reset Button
    • Fan LED on/off switch
  • Drive Bays
    • External – 3x 5.25″
    • Internal - 8x 3.5" & 2x 2.5"
  • Clearances
    • Heat Sink-Not Listed (Reviewer used 160mm)
    • Graphics–Not Listed (Reviewer used 225mm)
  • Rear cable management-Yes
  • Newegg Link

SF30 StarryFort
  • Motherboard Support-ATX, Micro-ATX, & mITX
  • Fan/Radiator Support
    • Front-up to 360 or 280mm(63mm max radiator thickness)(3x 120mm 1200RPM RGB fans included)
    • Rear-120mm (120mm 1200RPM RGB fan included)
    • Top-up to 240 or 280mm(45mm max radiator thickness)
    • Bottom-None
    • Left Side-None
    • Right Side-None
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • HD Audio In & Out
    • Power button
    • Reset Button/RGB Button
  • Drive Bays
    • External–None
    • Internal-2x 3.5”/2.5" & 3x 2.5”
  • Clearances
    • CPU Cooler-157mm
    • GPU Length–375mm
  • Rear cable management-15-20mm (minimal)
  • Newegg Link

Fractal Design-Link

Arc Midi R2
  • Motherboard Support-ATX, Micro ATX & Mini ITX
  • Fan/Radiator Support
    • Front-240/280mm(280mm not yet confirmed)(w/ HDD cages removed-140mm fan included)
    • Rear-120/140mm (140mm fan included)
    • Top- 240/280mm (140mm fan included)
    • Bottom-120/140mm
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • 3 speed fan controller
    • Headphone/Mic
    • Power button
    • Reset Button
  • Drive Bays
    • External – 2x 5.25″
    • Internal - 8x 2.5/3.5”
  • Clearances
    • Heat Sink-180mm
    • Graphics–290mm (w/top cage installed) or 430mm (w/o top cage)
  • Rear cable management-Yes
  • Newegg Link

Arc Mini R2
  • Motherboard Support-Micro ATX & Mini ITX
  • Fan/Radiator Support
    • Front-240mm(w/ HDD cages removed, radiator cannot exceed 275mm in total length with the ODD bay in place-120mm Silent Series R2 fan, 1200 RPM speed included)
    • Rear-120/140mm (120mm Silent Series R2 fan, 1200 RPM speed included)
    • Top- 240mm or 360mm or 2x 140mm(fans) (360mm radiators requires removal of the ODD cage - 140mm Silent Series R2 fan, 1000 RPM speed included)
    • Bottom-120mm
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • 3 speed fan controller
    • Headphone/Mic
    • Power button
    • Reset Button
  • Drive Bays
    • External – 2x 5.25″
    • Internal - 6x 2.5/3.5” & 2x 2.5" (behind M/B tray)
  • Clearances
    • Heat Sink-165mm
    • Graphics–260mm (w/top cage installed) or 400mm (w/o top cage)
  • Rear cable management-Yes
  • Newegg Link

Define R5
  • Motherboard Support-ATX, Micro ATX & Mini ITX
  • Fan/Radiator Support
    • Front-up to 360mm(w/ HDD & ODD cages removed) or 240mm/280mm(w/ HDD cages removed)(1x140 mm Fractal Design Dynamic GP14 fan included)
    • Rear-120/140mm (1x140 mm Fractal Design Dynamic GP14 fan included)
    • Top- up to 360mm/480mm(w/ ODD cages removed) or 240mm/280mm
    • Bottom-240mm/280mm
    • Side-2x120mm/140mm(fans only)
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • 2x USB 2.0
    • 3 speed fan controller(inside door)
    • Headphone/Mic
    • Power button
    • Reset Button
  • Drive Bays
    • External – 2x 5.25″
    • Internal - 8x 2.5/3.5” & 2x 2.5"(behind M/B tray)
  • Clearances
    • Heat Sink-180mm
    • Graphics–310mm (w/top cage installed) or 440mm (w/o top cage)
    • PSU-up to 170mm (w/ 140mm Bottom fan) or 300mm (w/o Bottom fan)
  • Rear cable management-Yes(20mm+)
  • Newegg Link

Define R6 & R6 TG
  • Motherboard Support-eATX(up to 285mm), ATX, mATX & ITX
  • Fan/Radiator Support
    • Front-up to 360mm or 280mm(2x140 mm Fractal Design Dynamic X2 GP-14 fans included)
    • Rear-120/140mm (140mm fan only) (1x140 mm Fractal Design Dynamic X2 GP-14 fan included)
    • Top-up to 360mm/480mm(w/ drive cages removed)
    • Bottom-up to 240mm/280mm
    • Side-None
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • 2x USB 2.0
    • Headphone/Mic
    • Power button
    • Reset Button
  • Drive Bays
    • External – None
    • Internal - 6x 2.5/3.5” & 2x 2.5"
  • Clearances
    • CPU Cooler-185mm
    • Graphics–440mm (w/front fan installed)(Max width of 355mm w/ cables for cards longer than 300mm)
    • PSU-up to 300mm
  • Rear cable management-Yes(25mm)
  • R6 Newegg Link
  • R6 TG Newegg Link

Gigabyte-link

Luxo M30
  • Motherboard Support-ATX & Micro ATX
  • Fan/Radiator Support
    • Front-120mm(Blue LED fan included)
    • Rear-120mm (fan included)
    • Top- 240mm (2x 120mm fans included)
    • Bottom-None
    • Side-2x120mm (Fans Only)
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • 2x USB 2.0
    • Headphone/Mic
    • Power button
    • Reset Button
  • Drive Bays
    • External – 3x 5.25″ & 1x 3.5"
    • Internal - 8x 3.5”
  • Clearances
    • Heat Sink-Not Listed (Review used 160mm HSF)
    • Graphics–Not Listed
  • Rear cable management-Yes(marginal)
  • Newegg Link


NZXT-link

S340
View attachment 179726
  • Motherboard Support-ATX, Micro ATX & Mini ITX
  • Fan/Radiator Support
    • Front-240mm/280mm
    • Rear-120mm (120mm FN V2 fan included)
    • Top- 120mm/140mm (fan only - 120mm FN V2 fan included)
    • Bottom-None
    • Side-None
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • Headphone/Mic
    • Power button
  • Drive Bays
    • External – None
    • Internal - 2x 3.5” & 2x 2.5"
  • Clearances
    • Heat Sink-161mm
    • Graphics–364mm
    • PSU-Not listed
  • Rear cable management-17mm
  • Newegg Link


Phanteks-Link

Enthoo EVOLV ATX & ATX Tempered GLASS (TG)
View attachment 191051
  • Motherboard Support-EATX(up to 264mm wide), ATX, mATX & mITX
  • Fan/Radiator Support
    • Front-up to 280mm or 360mm (2x 140mm fans included)
    • Rear-120mm/140mm (140mm fan included)
    • Top-up to 280mm or 360mm(140mm fan included)
    • Bottom-None
    • Side-None
  • Pump Mount-Yes
  • I/O Panel
    • 2x USB 3.0
    • Headphone/Mic
    • LED switch (TG version only)
    • Reset Button (Non-TG version only)
    • Power Button(top)
  • Drive Bays
    • External – None
    • Internal - up to 8x 3.5”, & up to 4x 2.5”(2 behind MoBo tray)
  • Clearances
    • Heat Sink-194mm
    • Graphics–300mm with HDD Cage, 420mm without HDD Cage
    • PSU-318mm
  • Rear cable management-Yes (Ample)
  • Tempered Glass Newegg Link
  • Non-TG Newegg Link

Raijintek-Link

Raijintek Thetis
  • Motherboard Support-ATX, mATX & mITX
  • Fan/Radiator Support
    • Front-None
    • Rear-120mm (120mm fan included)
    • Top-up to 240mm
    • Bottom-120mm
    • Side-None
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • Headphone
    • Microphone
    • Power Button
  • Drive Bays
    • External – None
    • Internal - 2x 3.5” & 2x 2.5”(behind MoBo tray)
  • Clearances
    • CPU Cooler-170mm
    • Graphics–280mm
    • PSU-STD PS2-ATX
  • Rear cable management-20mm (minimal)
  • Newegg Link

Silverstone-Link

Redline - RL05
View attachment 183535
  • Motherboard Support-ATX & Micro-ATX
  • Fan/Radiator Support
    • Front-up to 240mm or 1x 80mm or 2x 140mm (fans only-2x 140mm LED fans included)
    • Rear-120mm
    • Top-up to 240/280mm
    • Bottom-None
    • Side-None
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • Headphone/Mic
    • Power Button
    • Reset Button
  • Drive Bays
    • External – 1x 5.25″
    • Internal - 2x 3.5”/2.5" & 2x 2.5”
  • Clearances
    • Heat Sink-165mm
    • Graphics–Support up to 373mm, width restriction-162mm
    • PSU-STD ATX PS2(Length not listed)
  • Rear cable management-Yes
  • Newegg Link

SETA A1
SETA A1.PNG
  • Motherboard Support-ATX (up to 12” x 11”), Micro-ATX (9.6” x 9.6”) , & Mini-ITX (6.7” x 6.7”)
  • Fan/Radiator Support
    • Front-up to 360mm/280mm or 2x 200mm fans (2x 200mm fans included)
    • Rear-120mm or 140mm fan(120mm fan installed)
    • Top-up to 240mm radiator (20mm max thickness) or 3x 120mm/2x 140mm fans
    • Bottom-None
    • Side-None
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • 1x USB 3.1 Gen 2 Type-C
    • HD Headphone/Mic
    • Power Button
    • Reset/RGB Button
  • Drive Bays
    • External – None
    • Internal - 2x 3.5” & 4x 2.5”( 2x behind MoBo Tray)
  • Clearances
    • Heat Sink-175mm
    • Graphics–Support up to 350mm
    • PSU-180mm w/ HDD Caddy installed
  • Rear cable management-18mm (Minimal)
  • Amazon Link

Thermaltake-Link

Armor A30i Speed Edition

  • Motherboard Support-9.6” x 9.6” Micro ATX & Mini-ITX
  • Fan/Radiator Support
    • Front-1x 90mm(fan only-Blue LED fan included)
    • Rear-2x 60mm (fans only-included)
    • Top- 1x 200x20thick(fan only-blue LED fan included )
    • Bottom-None
    • Side-None
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • Headphone/Mic
    • Power button
    • Reset Button
  • Drive Bays
    • External – 2x 5.25″ & 1x 3.5"
    • Internal - 2x 3.5” & 2x 2.5"
  • Clearances
    • Heat Sink-90mm
    • Graphics–350mm
  • Rear cable management-No (ITX style mATX case)
  • Newegg Link

Suppressor F51
View attachment 166706
  • Motherboard Support-Mini ITX, Micro ATX, ATX & Extend ATX
  • Fan/Radiator Support
    • Front-up to 360mm/420mm or 200mm(fan only-TBD(200mm 800RPM fan included)
    • Rear-120mm/140mm (140mm fan included)
    • Top- up to 360mm/420mm or 2x200mm(fan only-400mm Radiator support TBD)
    • Bottom-up to 240mm
    • Side-120mm/140mm(fan only)
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • 2x USB 2.0
    • Headphone/Mic
    • Power button
    • Reset Button
    • Fan speed controller (up to 4 fans)
  • Drive Bays
    • External – 2x 5.25″
    • Internal - 6x 3.5”/2.5"
  • Clearances
    • Heat Sink-185mm
    • Graphics–310mm(465mm w/o HDD cages)
    • PSU-220mm (with bottom fan)
  • Rear cable management-Yes
  • Newegg Link

XPG-link

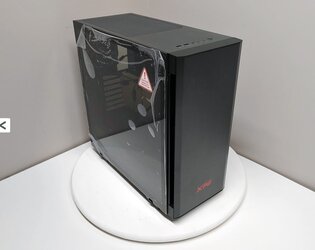

Invader
  • Motherboard Support-Mini-ITX, Micro-ATX, ATX
  • Fan/Radiator Support
    • Front-up to 360mm or 240mm (1x 120 mm 1200 RPM fan included)
    • Rear-120mm (1x 120 mm 1200 RPM fan included)
    • Top-up to 240mm
    • Bottom-120mm (fan only)
    • Side-up to 240mm
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • Audio In & Out (supports HD Audio)
    • Power Button
    • RGB button
  • Drive Bays
    • External – None
    • Internal - 2x 2.5” & 2x 3.5"/2.5”
  • Clearances
    • CPU Cooler-170mm
    • Graphics–400mm
    • PSU-225mm
  • Rear cable management-Yes (18mm-adequate)
  • Amazon Link / Newegg Link


Attachments

  • BC.JPG
    57.6 KB · Views: 82
Last edited:
OP
Blaylock

Blaylock

"That Backfired" Senior Member
Joined
Jun 5, 2013
Location
Go Blue!
Desktop/Cube


Aerocool-Link

DS Dead Silence Cube
View attachment 175405
  • Motherboard Support-Micro-ATX & mini-ITX
  • Fan/Radiator Support
    • Front-120mm/140mm or 200mm(200mm fan included)
    • Rear-120mm/140mm (120mm fan included)
    • Top- up to 240mm/280mm
    • Bottom-N/A
    • Side-N/A
  • Pump Mount-No
  • I/O Panel(top)
    • 2x USB 3.0
    • 2x USB 2.0
    • Headphone/Mic
    • Power button
    • Reset Button
  • Drive Bays
    • External – 1x 5.25″ & 1x 3.5"
    • Internal - 2x 2.5”/3.5" 2x 2.5”
  • Clearances
    • Heat Sink-190mm
    • Graphics–255mm or 320mm(w/o drive cage)
  • Cable management-Yes(under MB tray)
  • Newegg Link

Anidees-Link

A17 Black Window
View attachment 180293
  • Motherboard Support-ATX, Micro-ATX, & mini-ITX
  • Fan/Radiator Support
    • Front-up to 2x 240mm, 1x 280mm or 1x 200mm(4x 120mm fans included-Blue Led)
    • Rear-120mm & 90mm (120mm fan included)
    • Top-up to 240mm/280mm(280mm TBD)
    • Bottom-120mm
    • Side-N/A
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • 2x USB 2.0
    • Headphone/Mic
    • Power button
    • Reset Button
    • 3 Speed Fan Controller(Rear)
  • Drive Bays
    • External – 1x 5.25″
    • Internal - 2x 2.5”/3.5", 2x 3.5”, & 1x 2.5"
  • Clearances
    • Heat Sink-174mm
    • Graphics–348mm
    • PSU-200mm
  • Cable management-Yes(95mm)
  • Newegg Link

Cooler Master-Link

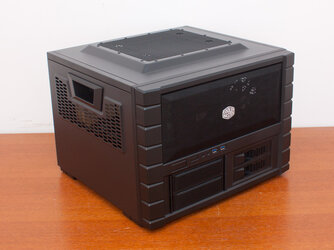

HAF-XB
  • Motherboard Support-ATX, Micro-ATX & Mini-ITX
  • Fan/Radiator Support
    • Front-240mm (2x 120mm fans included-1800 RPM)
    • Rear/Top-120mm
    • Rear/Bottom-2x 80mm
    • Top- 200mm
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • Headphone/Mic
    • Power button
    • Reset Button
  • Drive Bays
    • External – 2x 5.25″ & 2x 3.5/2.5" (hot swap)
    • Internal - 4x 3.5/2.5”
  • Clearances
    • Heat Sink-180mm
    • Graphics–334mm
  • Rear cable management-Yes(Under in this case)
  • Newegg Link

Corsair-Link

CarbideAir 540
View attachment 158675
  • Motherboard Support-Mini-ITX, Micro-ATX, ATX & E-ATX
  • Fan/Radiator Support
    • Front-up to 280mm or 360mm (2x 140mm fans included)
    • Rear-120/140mm (140mm fan included)
    • Top-up to 240mm or 280mm
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • Headphone/Mic
    • Power button
    • Reset Button
  • Drive Bays
    • External – 2x 5.25″
    • Internal - 2x 3.5”(Hot Swap) & 4x 2.5"
  • Clearances
    • Heat Sink-170mm
    • Graphics–320mm
    • PSU-200mm
  • Rear cable management-Yes(Abundant)
  • Newegg Link

Carbide Air 240
View attachment 164319
  • Motherboard Support-mATX & mITX
  • Fan/Radiator Support
    • Front-up to 240mm(2x 120mm Corsair A1225L12S-2 fans included)
    • Rear-2x 80mm
    • Top-up to 240mm(1x 120 Corsair A1225L12S-2 fan included)
    • Bottom-up to 240mm
    • Right Side-120mm
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • Headphone/Mic
    • Power button
    • Reset Button
  • Drive Bays
    • External – None
    • Internal - 3x 3.5”/2.5" & 3x 2.5"
  • Clearances
    • Heat Sink-125mm
    • Graphics–360mm
    • PSU-200mm
  • Rear cable management-Yes(Abundant)
  • Newegg Link

MountainMods-Link

U2-UFO-CYO(Choose Your Own)
View attachment 160950
  • Motherboard Support-Micro ATX & ATX
  • Fan/Radiator Support
    • Front-up to 2x360mm(w/ 15mm or 25mm spacing)
    • Rear-up to 360mm(w/ 15mm or 25mm spacing)
    • Top-up to 360mm or up to 4x120mm
    • Right-up to 360mm or up to 4x120mm
    • Left-up to 360mm or up to 4x120mm
    • Bottom-None(Do you really need more?)
  • Pump Mount-No(optional?)
  • I/O Panel
    • Power button
    • Reset Button
  • Drive Bays
    • External – up to 10x5.25″
    • Internal - 6x3.5”(additional brackets are optional)
  • Clearances
    • Heat Sink-Not Listed
    • Graphics–Not Listed
    • PSU-Not Listed
  • Rear cable management-Yes(Abundant)
  • MountainMods Order Link

Lian-Li-Link

PC-O8
View attachment 166131
  • Motherboard Support-MICRO-ATX, ATX & E-ATX
  • Fan/Radiator Support
    • Front-up to 360mm (70mm thick)(3x 120mm Jamicon KF1225S1LSBR fans included)
    • Top-up to 240mm
    • Rear-120 (Jamicon KF1225S1LSBR fan included)
    • Internal- 2x 120mm (2x 120mm Jamicon KF1225S1LSBR fans included)
  • Pump Mount-No
  • I/O Panel
    • 4x USB 3.0
    • Headphone/Mic
    • Power button
  • Drive Bays
    • External –None
    • Internal(HDD Cage) - 6x 3.5 & 2x 2.5"
  • Clearances
    • Heat Sink-170mm
    • Graphics–370mm
    • PSU-298mm
  • Rear cable management-Yes (abundant)
  • Newegg Link

Thermaltake-Link

Core X9
View attachment 158590
  • Motherboard Support-MINI-ITX, MICRO-ATX, ATX & E-ATX
  • Fan/Radiator Support
    • Front-up to 280mm, 360mm or 2x 200mm (fans only)(1x 200mm fan included)
    • Rear/Top-120/140mm(fan included)
    • Rear/Bottom-120/140mm
    • Top-up to 2x 480mm, 2x 420mm or 2x 200mm
    • Bottom- up to 480mm or 420mm
  • Pump Mount-No
  • I/O Panel
    • 4x USB 3.0
    • Headphone/Mic
    • Power button
    • Reset Button
  • Drive Bays
    • External – 3x 5.25″
    • Internal - 6x 3.5/2.5”, 1x 3.5", 2x 2.5"(under MoBo tray)"
  • Clearances
    • Heat Sink-250mm
    • Graphics–400mm (590mm w/ ODD cage removed)
    • PSU-220mm(w/ bottom fan installed)
  • Rear cable management-Yes(Under in this case)
  • Newegg Link

Core X5 (Review not available yet)
View attachment 177351
  • Motherboard Support-MINI-ITX, MICRO-ATX, ATX & E-ATX
  • Fan/Radiator Support
    • Front-up to 280mm, 360mm or 1x 200mm(180 based) (120mm fan included)
    • Rear-120/140mm(120mm fan included)
    • Top-up to 2x 360mm, 2x 280mm(In Question) or 1x 400mm(2x180 based)
    • Bottom- up to 2x360mm
    • Side(R&L)-up to 360mm
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • 2x USB 2.0
    • Headphone/Mic
    • Power button
    • Reset Button
  • Drive Bays
    • External – 3x 5.25″
    • Internal - 4x 3.5/2.5”, & 3x 2.5"
  • Clearances
    • Heat Sink-230mm
    • Graphics–3300mm (480mm w/ ODD cage removed)
    • PSU-220mm(w/o bottom fan installed)
  • Rear cable management-Yes(Under in this case)
  • Newegg Link

Core X2
View attachment 158635
  • Motherboard Support-MINI-ITX & MICRO-ATX
  • Fan/Radiator Support
    • Front-up to 180mm, 280mm, 360mm (or 200mm fan only)(1x 120mm fan included)
    • Rear/Top-120/140mm(120mm fan included)
    • Rear/Bottom-None
    • Top-up to 280mm or 2x 360mm
    • Bottom-up to 360mm
    • Side-up to 360mm
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • Headphone/Mic
    • Power button
    • Reset Button
  • Drive Bays
    • External – 3x 5.25″
    • Internal - 4x 3.5/2.5”, 3x 2.5"
  • Clearances
    • Heat Sink-230mm
    • Graphics–330mm (480mm w/ ODD cage removed)
    • PSU-220mm(w/ bottom fan installed)
  • Rear cable management-Yes(Under in this case)
  • Newegg Link

Core X1
View attachment 158636
  • Motherboard Support-MINI-ITX
  • Fan/Radiator Support
    • Front-up to 180mm, 240mm or 280mm(or 200mm fan only)(1x 120mm fan included)
    • Rear/Top-120/140mm(120mm fan included)
    • Rear/Bottom-None
    • Top-up to 280mm or 360mm (or 2x 200mm fans only)
    • Bottom-120mm (fan only)
    • Side-None
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • Headphone/Mic
    • Power button
    • Reset Button
  • Drive Bays
    • External – 2x 5.25″
    • Internal - 3x 3.5/2.5”, 1x 2.5"(Under MoBo tray)
  • Clearances
    • Heat Sink-200mm
    • Graphics–280mm (400mm w/ ODD cage removed)
    • PSU-(ATX) 220mm(w/ bottom fan installed)
  • Rear cable management-Yes(Under in this case)
  • Newegg Link

Last edited:
OP
Blaylock

Blaylock

"That Backfired" Senior Member
Joined
Jun 5, 2013
Location
Go Blue!
mITX

Bitfenix-link

Phenom
View attachment 181931
  • Motherboard Support-Mini-ITX
  • Fan/Radiator Support
    • Top-240mm(for push/pull config top fans can only be 15mm thick)
    • Front-240mm (120mm fan included) or 1x 140/180/200/230mm
    • Rear 120mm(included) or 140mm
  • Pump Mount-No
  • I/O Panel (right side)
    • 2x USB 3.0
    • Headphone/Mic
    • Power button
    • Reset Button
  • Drive Bays
    • External – None
    • Internal - 6x3.5" (5 + 1 with adapter) 11x2.5"(5 + 2 + 2 + 1 + 1 with adapter)
  • Clearances
    • Heat Sink-175mm
    • Graphics–330mm
  • Newegg Link

Cooler Master-Link

Elite 130
View attachment 181932
  • Motherboard Support-Mini-ITX
  • Fan/Radiator Support
    • Top-None
    • Front-120mm (fan included)
    • Rear-None
    • Side-80mm(x15mm thick) (fan included)
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • 1x USB 2.0
    • Headphone/Mic
    • Power button
    • Reset Button
  • Drive Bays
    • External – 1x 5.25"
    • Internal - 2x 3.5"/2.5" 1x 2.5" (5.25" external bay can be sacrificed for 1x 3.5" or 2x 2.5")
  • Clearances
    • Heat Sink-65mm
    • Graphics–345mm
  • Newegg Link

EVGA-link

Hadron Hydro
  • Motherboard Support-Mini-ITX
  • Fan/Radiator Support Top-240mm
  • Pump Mount-Yes
  • I/O Panel
    • 2x USB 3.0 (right side)
    • Headphone/Mic (right side)
    • Eject Button (right side)
    • Power button (front)
  • Drive Bays
    • External – 1x side mount slot load ROM
    • Internal - 2x 3.5”/2.5"
  • Clearances
    • Heat Sink- Not Listed
    • Graphics–267mm
  • Newegg Link
Hadron Air
  • Motherboard Support-Mini-ITX
  • Fan/Radiator Support Top-2x 120mm(fans only-included)
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0 (right side)
    • Headphone/Mic (right side)
    • Eject Button (right side)
    • Power button (front)
  • Drive Bays
    • External – 1x side mount slot load ROM
    • Internal - 2x 3.5”/2.5"
  • Clearances
    • Heat Sink- 165mm
    • Graphics–267mm
  • Newegg Link

Fractal Designs-link


Core 500
View attachment 191216
  • Motherboard Support-Mini-ITX & Mini-DTX (Note:MoBo's with 90° SATA connectors may not be compatible)
  • Fan/Radiator Support
    • Top-up to 240mm/280mm(Without ODD bay. 100mm total thickness. 280mm radiator max length of 325mm. Not compatible with pump on radiator AIO's)
    • Front-None
    • Rear-120mm (radiator without rear 3.5 HDD bay) or 140mm fan only (3-Pin 140mm Silent Series R3 1000rpm fan included)
    • Bottom-None
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • Headphone/Mic
    • Power Button
    • Reset button
  • Drive Bays
    • External–1x 5.25" (Removable)
    • Internal - 3x 3.5” & 3x 2.5
  • Clearances
    • Heat Sink-170mm
    • Graphics–310mm
    • PSU-170mm (Non-Modular) or 160mm (Modular)
  • Cable Management-N/A (Cube Style)
  • Newegg Link

Define Nano S
View attachment 180292
  • Motherboard Support-Mini-ITX
  • Fan/Radiator Support
    • Top-up to 240mm or 2x 140mm(fans only)(Max component height on motherboard 35mm. Big heatsinks on RAM or power regulators around CPU could conflict with this restriction)
    • Front-up to 240mm/280mm (147mm X 312mm Max Rad)(1x 140mm fan included-GP14 100RPM)
    • Rear-120mm (fan only-GP12 1200RPM included)
    • Bottom-120mm (85mm X 160mm Max Rad)
  • Pump Mount-Yes
  • I/O Panel
    • 2x USB 3.0
    • Headphone/Mic
    • Power Button
    • Reset button
  • Drive Bays
    • External–N/A
    • Internal - 2x 3.5”/2.5" & 2x 2.5(Up to 13mm thick)
  • Clearances
    • Heat Sink-160mm
    • Graphics–315mm w/ front fans
    • PSU-160mm (Shorter preferred)
  • Cable Management-Yes (17-35mm w/ Velcro straps)
  • Newegg Link w/ Window
  • Newegg Link w/o Window

In Win-link

D Frame Mini
View attachment 160742
  • Motherboard Support-Mini-ITX
  • Fan/Radiator Support Bottom-240mm (Swiftech H220 does not fit)
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • Headphone/Mic
    • Power button
    • Reset Button
  • Drive Bays
    • External – None
    • Internal - 3x 3.5”/2.5" & 2x 2.5"(behind MoBo tray)
  • Clearances
    • Heat Sink-165mm
    • Graphics–340mm
    • PSU-220mm
  • Newegg Link

Kolink

Rocket
kolink rocket.PNG
  • Motherboard Support-Mini-ITX
  • Fan/Radiator Support
    • Top-1x 80mm(fan only-included PWM)
    • Front-None
  • Pump Mount-No
  • I/O Panel)
    • 2x USB 3.0
    • Power button
  • Drive Bays
    • External – None
    • Internal - 2x 2.5"
  • Clearances
    • Heat Sink - 54mm
    • Graphics – 310mm (40mm Height - PCIe 3.0 x16 Riser included)
    • PSU - SFX or SFX-L (130mm)
  • Amazon Link

Lian Li-Link

PC-Q28
View attachment 197376
  • Motherboard Support-Mini-ITX
  • Fan/Radiator Support
    • Top-1x 120mm(fan included)
    • Front-1x 140mm(fan only-included)
  • Pump Mount-No
  • I/O Panel(right side)
    • 2x USB 3.0
    • Headphone/Mic
    • Power button (front)
  • Drive Bays
    • External – 1x 5.25"
    • Internal - 2x 3.5”/2.5" & 4x 3.5"
  • Clearances
    • Heat Sink- 100mm
    • Graphics–290mm
  • Newegg Link

NCASE-Link

M1
View attachment 175215
  • Motherboard Support-Mini-ITX & Mini DTX
  • Fan/Radiator Support
    • Top-N/A
    • Front-N/A
    • Rear-1x 80mm/92mm
    • Bottom-1x 80mm/92mm or 2x 120mm(fans only)
    • Side-up to 240mm(slim rad only)
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • Headphone/Mic
    • Power button
  • Drive Bays
    • External – 1x Slim 5.25"
    • Internal - up to 3x 3.5” or up to 5x 2.5"
  • Clearances
    • Heat Sink- 130mm(w/o Side Fans)
    • Graphics–317mm(slots 1&2) and 280mm (slot 3)
    • PSU-SFX PSU or 160mm ATX PSU with short GPU or 140 mm ATX PSU with long GPU
  • NCASE Link

Phanteks-Link

Enthoo Evolv ITX
View attachment 175836
  • Motherboard Support-Mini-ITX
  • Fan/Radiator Support
    • Top-up to 240/280mm
    • Front-up to 240mm
    • Rear-120/140mm
    • Bottom-N/A
    • Side-N/A
  • Pump Mount-Yes
  • I/O Panel
    • 2x USB 3.0
    • Headphone/Mic
    • Reset Button
    • Power button(top)
  • Drive Bays
    • External – N/A
    • Internal - up to 3x 3.5” or up to 2x 2.5"
  • Clearances
    • Heat Sink- 200mm
    • Graphics–330mm
    • PSU-apx 185mm
  • Newegg Link

Raijintek-Link

Metis Plus
Raijintek Metis Plus.JPG
  • Motherboard Support-Mini-ITX
  • Fan/Radiator Support
    • Top-120mm Fan
    • Front-None
    • Rear-120mm Fan (120mm LED fan included)
    • Bottom-None
    • Side-None
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • Power button
    • HD Audio In & Out
  • Drive Bays
    • External-None
    • Internal- 4×2.5" + 1×3.5" or 2×2.5" + 2×3.5"
  • Clearances
    • CPU-160mm
    • Graphics–170mm or up to 240mm
    • PSU-STD ATX PS/2
  • Newegg Link

Ophion EVO
  • Motherboard Support-Mini-ITX
  • Fan/Radiator Support
    • Top-up to 240mm
    • Front-None
    • Rear-None
    • Bottom-120mm
    • Side-None
  • Pump Mount-No
  • I/O Panel
    • 1x USB 3.0
    • 1x USB 3.0 Type-C
    • Power button
  • Drive Bays
    • External – N/A
    • Internal - 1x 3.5” & 2x 2.5" or up to 4x 2.5"
  • Clearances
    • Heat Sink- 90mm
    • Graphics–330mm
    • PSU-STD ATX PS/2
  • Newegg Link

Last edited:
OP
Blaylock

Blaylock

"That Backfired" Senior Member
Joined
Jun 5, 2013
Location
Go Blue!
HTPC

Silverstone-Link

GD05B/GD05B-USB3.0
View attachment 164148
  • Motherboard Support-Micro ATX, Mini-DTX & Mini-ITX
  • Fan/Radiator Support
    • Rear-2X 80mm(fans only)
    • Right Side- 2x 120mm(fans only-2x 120mm fans included)
    • Left Side-1x 120mm or 1x 80mm(fan only-120mm fan included)
  • Pump Mount-No
  • I/O Panel
    • 2x USB 2.0(Original) or 2x USB 3.0(updated version)
    • Headphone/Mic
    • Power button
    • Reset button
  • Drive Bays
    • External – 1x 5.25"
    • Internal - 1x 3.5", 1x 2.5" & 1x 3.5”/2.5"
  • Clearances
    • Heat Sink- 70mm(120mm without ODD)
    • Graphics–280mm
    • PSU-Standard PS2 (ATX)
  • Newegg Link

LC-19(LC19R)-DISCONTINUED
  • Motherboard Support-MoDT, Micro-ATX, Mini-ITX & DTX
  • Fan/Radiator Support Rear-50mm
  • Pump Mount-No
  • I/O Panel
    • 2x USB 2.0
    • 1xIEEE1394
    • Headphone/Mic
    • 52 in 1 card reader(LC19R only)
    • Power button (front)
  • Drive Bays
    • External – 1x Slim ODD
    • Internal - 1x 3.5”/2.5"
  • Clearances
    • Heat Sink- 37mm
    • Graphics–172mm
  • Newegg Link

ML06
View attachment 164898
  • Motherboard Support- Mini-ITX
  • Fan/Radiator Support
    • Top-120mm(Fan Only-w/o ODD)
    • Right Side-2x 80mm(Fans Only)
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0(Right Side)
    • Headphone/Mic(Right Side)
    • Power button (front)
    • Eject Buttin(front)
  • Drive Bays
    • External – 1x Slim ODD
    • Internal - 1x 3.5” & 2x 2.5" or 4x 2.5"
  • Clearances
    • Heat Sink- 70mm
    • Graphics–Low profile Single slot only
    • PSU-SFX only
  • Newegg Link

RVZ01
View attachment 165429
  • Motherboard Support- Mini-ITX & DTX
  • Fan/Radiator Support
    • Top-120mm(Slim Fan Only-included)
    • Bottom-2x 120mm(Slim Fans Only- 1x 120mm included)
  • Pump Mount-No
  • I/O Panel
    • 2x USB 3.0
    • Headphone/Mic
    • Power button
    • Reset Button
  • Drive Bays
    • External – 1x Slim ODD
    • Internal - 1x 3.5” & 3x 2.5"
  • Clearances
    • Heat Sink- 83mm
    • Graphics–330mm(150mm width)
    • PSU-SFX only
  • Newegg Link

Last edited:
OP
Blaylock

Blaylock

"That Backfired" Senior Member
Joined
Jun 5, 2013
Location
Go Blue!
Test Benches/Other

Dimastech-link

Easy XL
  • Motherboard Support-ATX, Full ATX, MicroATX, Mini ATX, NanoATX, XL-ATX, EATX, SSI-EEB, SSI-CEB & MiniITX
  • Radiator Support - two 3x 140 mm Radiators – Radiators 120, 140, 240, 280, 360, 420, Black Ice Sr 360 and Black Ice Sr 420 (20 mm fan space)
  • Pump Mount-Yes compatible with DDC (DDC 3.25), DCC (DCC 300, 500, DCC-1RT), D5, AQUASTREAM XT, SANSO- PD054
  • I/O Panel
    • Power button
    • Reset Button
  • Drive Bays-3x 5.25" 4x 3.5"(up to 8 with BT149 accessory) 2.5"-None
  • PCI slots-10
  • Air Cooling-2x 120mm(flex fans)
  • Amazon Link

Lian-Li-Link

PC-T80X(Black) - PC-T80A(Silver)
View attachment 156610
  • Motherboard Support-XL-ATX, ATX, Micro-ATX & ITX
  • Radiator Support - 360mm
  • Pump Mount-No
  • I/O Panel
    • Power button
    • 4x USB3.0 (optional)
    • Audio (optional)
  • Drive Bays-3x 3.5" 3x 2.5/3.5 & 4x 2.5" (5.25"-None)
  • PCI slots-8
  • Air Cooling-3x 120mm(fixed)
  • Amazon Link

Microcool-link


Banchetto 101
View attachment 159543
  • Motherboard Support-(Rev 1 & 2)ATX and Micro ATX, (Rev 3)All standard boards-per microcool website
  • Radiator Support - up to 360mm
  • Pump Mount - Yes
  • I/O Panel - Power button & Reset Button
  • Drive Bays - 3-5.25" 3x 3.5" or None-2.5"(Microcool website claims rev 3 supports 2.5")
  • PCI slots-7
  • Air Cooling-4x 120mm (fixed)
  • Amazon UK Link

Banchetto K
View attachment 156611
  • Motherboard Support-ATX, E-ATX, XL-ATX & micro-ATX
  • Radiator Support - 4x 120mm(20 mm fan spacing)
  • Pump Mount - No
  • I/O Panel - Power button
  • Drive Bays - None-5.25" 1x 3.5" or 2x 2.5"
  • PCI slots-9
  • Air Cooling-4x 120mm(fixed)
  • Amazon.UK Link

Spotswood-link


Compact Tech Station
View attachment 167115
  • Motherboard Support-ATX, XL-ATX, EATX, mATX & mITX
  • Radiator Support -
    • Front- up to 360mm
    • Right Side-up to 240mm
    • Left Side-up to 240mm(PSU must mount on either right or left side)
    • Rear-up to 360mm
  • Pump Mount - Yes
  • I/O Panel - None
  • Drive Bays - 4-5.25"(optional drive bay) 2x 3.5" or 3x 2.5"/3.5"
  • Spotswood ordering Link

Last edited:
OP
Blaylock

Blaylock

"That Backfired" Senior Member
Joined
Jun 5, 2013
Location
Go Blue!
Change Log


07/09/2014-Added Corsair Obsidian 450D & Graphite 760T
07/10/2014-Added Corsair Graphite 230T & EVGA Hadron Hydro mITX
07/15/2014-Added Silverstone LC-19, Bitfenix Phenom mITX, Cooler Master Elite 130 mITX, EVGA Hadron Air mITX, Fractal Design ARC XL, Gigabyte Luxor M 30 & NZXT Phantom 530
07/16/2014-Added Enermax iVektor
07/17/2014-Added note to NZXT Phantom 530 kudos to Gregmacknass
07/18/2014-Added Lian Li PC-Q28
07/20/2014-Added Cooler Master HAF Stacker 935 & Thermaltake Armor A30i
07/24/2014-Added Silverstone Raven RV04 & Dimastech Easy XL
07/31/2014-Added Microcool Banchetto K
08/04/2014-Added Coolermaster N600
08/05/2014-Added Thermaltake Chaser A71 & Fractal Design Arc Midi R2
08/07/2014-Added Enermax Ostrog GT
08/18/2014-Added Nanoxia Deep Silence 5
08/21/2014-Added Cooler Master HAF-XB
10/16/2014-Added Phanteks Enthoo Primo & Enthoo Luxe
10/19/2014-Added Azza Genesis 9000(Requested by ASUS ROG)
10/22/2014-Added Phanteks Enthoo Pro
10/22/2014-Added Corsair Obsidian 900D(Requested by GTXJackBauer)
10/30/2014-Added Corsair Obsidian 750D
11/05/2014-Added Lian Li PC-V2130A/B/WX
11/26/2014-Added Lian Li PC-T80X/A
12/22/2014-Added Corsair Graphite 780T
12/22/2014-Fixed multiple broken links
01/14/2015-Added Thermaltake Core X9
01/15/2015-Added Thermaltake Core X2 & Core X1
01/16/2015-Added Corsair Air 540
02/05/2015-Added Microcool Banchetto 101
02/12/2015-Added Caselabs Merlin ST10 (Requested by TechJesse)
02/13/2015-Added NZXT Phantom 630 (Requested by Tech Tweaker)
02/14/2015-Added Be Quiet! Base 800
02/16/2015-Added NZXT Phantom 820 (Requested by Tech Tweaker)
02/17/2015-Added Cooler Master HAF-X & Corsair Carbide 500R (Requested by Tech Tweaker)
03/04/2015-Added InWin D Frame Mini
03/10/2015-Added MountainMods U2-UFO-CYO (Requested by Mandrake)
04/07/2015-Added Corsair Obsidian 550D (Requested by AudioAficionado)
04/14/2015-Added Fractal Design Define R5
05/20/2015-Added Corsair 350D (Requested by Atminside)
05/28/2015-Added Silverstone GD05B (Requested by Atminside)
06/01/2015-Added Corsair Carbide Air 240 (Requested by Atminside) & Added MoBo support to all Tower cases
06/08/2015-Added MoBo support to all Mid Tower & Desktop/Cube cases, updated Silverstone GD05B w/ USB3.0 version
06/10/2015-Added MoBo support to all ITX, HTPC & Benchers
06/15/2015-Added Silverstone ML06
06/24/2015-Added Silverstone RVZ01B
07/07/2015-Added Lian-Li PC-O8
07/20/2015-Added Thermaltake Suppressor F51
07/28/2015-Added Spotswood Compact Tech Station
11/05/2015-Fixed broken links, Pics and Discontinued
12/02/2015-Added Be Quiet! Base 600
12/04/2015-Fixed Rad support for Core X9
02/16/2016-Added NCASE M1 (Requested by Peanutbudder)
02/19/2016-Added Aerocool DS Cube (Requested by Woomack)
02/24/2016-Added Phanteks Enthoo Evolv ITX (Requested by WitchDoctor)
03/10/2016-Added Corsair Carbide 88R (Requested by Urbanman2004)
03/11/2016-Corrected Corsair Carbide 88R Top Radiator Support with limitations
03/24/2016-Added Thermaltake Core X5 (Requested by Mr. Scott)
06/01/2016-Added NZXT S340
06/21/2016-Added Fractal Designs Define Nano S & Anidees A17 Black Window
07/25/2016-Added Anidees AI Crystal
08/04/2016-Fixed Broken Images
08/24/2016-Added Rosewill Rise (Requested by Jeff G)
09/19/2016-Added SilverStone Fortress 2 FT02 (Requested by PeanutBudder)
09/23/2016-Added SilverStone Redline RL05
12/20/2016-Added SilverStone Primera PM01
03/07/2017-Added Corsair Crystal 460x Requested by GTXJackBauer
03/14/2017-Added Corsair Crystal 570x Requested by GTXJackBauer
05/15/2017-Added Phanteks Enthoo Evolv ATX & ATX TG (Requested by PeanutBudder)
05/16/2017-Added Corsair Carbide 400C (Requested by Woomack)
05/24/2017-Added Fractal Designs Core 500 (Requested by Woomack)
12/01/2017-Added Be Quiet! Dark Base Pro 900
04/17/2018-Added Fractal Define R6 &R6 TG (Requested by Deathman20)
04/24/2018-Added Cooler Master MasterCase H500P Mesh
07/09/2018-Added Kolink Rocket (Requested by Woomack)
08/16/2018-Noted Caselabs Out of Business :(
12/21/2018-Added Raijintek Ophion EVO mITX
12/21/2018-Added Cooler Master MasterCase SL600M
01/30/2019-Noted Cooler Master HAF 935 as Discontinued
02/07/2019-Corrected broken links
05/30/2019-Noted BeQuiet Base 800 & 600 Discontinued, also fixed multiple broken images
11/05/2019-Corrected I/O Specs on Corsair Crystal 570X RGB (Thank you HeatM1ser2k4)
11/05/2019-Added Antec P101 Silent
12/05/2019-Added Antec DA601
12/05/2019-Added Enermax SF30
12/05/2019-Added Antec P120 Crystal
12/05/2019-Added Raijintek Metis Plus -Requested by Woomack
05/28/2020-Added Silverstone SETA A1
10/26/2020-Added RAIJINTEK THETIS - Requested by Miahallen
07/09/2021-Added be quiet! 500DX
01/13/2022-Added XPG Invader

To Do List:

XPG Battlecruiser
XPG Defender Pro
XPG Starker

HYTE Revolt 3
MSI MPG Velox 100R
MSI MPG Sekira 100R
MSI MPG Gungnir 110R
be quiet! Dark Base 900 Pro - Requested by ehume
Coolermaster NR200 - Requested by Woomack
Phanteks Enthoo Elite - Requested by TerranBrackiatt
Phanteks Enthoo 719 - Requested by TerranBrackiatt

Last edited:

bob4933

Member
Joined
Jan 3, 2014
If possible, not for me, but the inevitable question will be "will my 240mm radiator fit?" will come up a time or two.

I would suggest an excel document, organize by size with ascending order of price. another column for fan amount, one for front usb 3.0 support and then another one for watercooling support.

edit: combo breaker? haha


bob4933

Member
Joined
Jan 3, 2014
Question. How are you delineating "recommended" vs "not recommended"? To me it seems mostly subjective, but whats your criteria for this to keep it objective?

OP
Blaylock

Blaylock

"That Backfired" Senior Member
Joined
Jun 5, 2013
Location
Go Blue!
...that have been reviewed and tested so there's no questioning their quality.
...Please refrain from requesting cases to be added for now as I have a large list of cases to add already. I will update this post when I'm ready for member requests by PM of course.


bob4933

Member
Joined
Jan 3, 2014
Yeah I can read mate lol. What reviews are you going by? I am 100% confident you're going to make a good list, om merely playing devils advocate here

OP
Blaylock

Blaylock

"That Backfired" Senior Member
Joined
Jun 5, 2013
Location
Go Blue!
Ah, sorry Gonna start with all the OCF reviews and may add others if the list isn't complete. I haven't decided on what other sites to use yet. I'm pretty overwhelmed ATM. Sorry if my last post seemed offensive. It wasn't my intention.

OP
Blaylock

Blaylock

"That Backfired" Senior Member
Joined
Jun 5, 2013
Location
Go Blue!
Question. How are you delineating "recommended" vs "not recommended"? To me it seems mostly subjective, but whats your criteria for this to keep it objective?

I won't be adding any "not recommended" cases. Essentially it will be an Overclockers Approved listing with some of the finer details of the product. I will expand this to other highly touted review sites though as time rolls on. As a member requests a case be listed I'll have them PM me with the review link. Very much like Diaz is doing with the PSU listing. He's doing a fantastic job there and I'd be lucky if I could make this listing close to his by comparison.


bob4933

Member
Joined
Jan 3, 2014
Nice ok, didn't know we even had case reviews besides some odd ball case here and there.

Look forward to it. I'm a fan of organization :)


Mag10

Member
Joined
Mar 17, 2010
As a suggestion, why not state the fan spacing for the fan/radiator support as some cases still use different spacing for fan mount
