Using surround jacks as mic and aux inputs

Overclockers is supported by our readers. When you click a link to make a purchase, we may earn a commission. Learn More.

anonymous9

New Member
Joined
Aug 3, 2016
Hi all,
I've been trying to reassign my orange, black and grey audio jacks as Line in and Mic In jacks for streaming. I found a tutorial online which seems to kinda work, but I've got a bit stuck.
Tutorial Link

Okay so I've got the orange jack working as a Line In (Aux) jack, but for some reason the new black and grey mic jacks just won't behave themselves.

Here's where it gets interesting though
  • The original (pink) mic jack works, but if I try and connect anything to the grey or black jacks they all stop working, including the pink one, until a restart. I'm guessing this means connecting the new jacks somehow causes a driver crash which doesn't fix until they're reloaded.
  • Also, the black and grey jacks both show seperately in the Realtek Audio Manager sidebar, but are both displayed as a single device in the Realtek window and in Recording Devices.
  • Finally, I do get some noise through the inputs when plugging in the mic, as well as the humming caused by the keyboard's passthrough jacks (and yes, I did try it without the keyboard connected but with no luck)

So that's about it, heres some pictures which hopefully explain the situation better than I can;

Here's my current values for RegEdit, which seem to be correct AFAIK

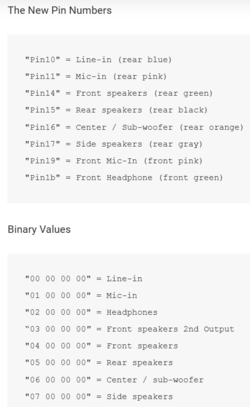

Here's the key to work out the picture above it (just in case anyone's a bit wary about clicking the tutorial link)

blackpopout.png greypopout.png
So these both seem to be identifying as Keyboard Mic, if I rename one the other gets renamed too and they both open the same tab in Realtek Audio Manager

If you've read this far, you'll probably want to know the usual stuff, so here it is:
MB: Gigabyte 990FXA UD3 R5
Drivers: Realtek 6.0.1.7553 (Gigabyte rebranded version from the disk. I tried installing the standard Realtek ones ages ago but Win10 kept replacing them)
Also maybe worth mentioning I'm running all audio directly from the motherboard, I've completely disabled HDMI audio from within nVidia control panel

So I'm pretty much stumped at this point. Maybe it just plain isn't possible cause of the PCB design or something?

Anyway, any help is really appreciated


Pinky

Member
Joined
Apr 21, 2001
Location
Las Vegas, NV
My best guess is the orange is a versajack, able to send and receive. The other output jacks are not (send only).

What are you trying to accomplish? Maybe I can help with a different solution...

OP
A

anonymous9

New Member
Joined
Aug 3, 2016
@Pinky, Interesting thought about the orange jack having a different design. I might try setting that one as a Mic In and see what happens there, I was also going to try with only one extra mic jack (either black or grey instead of both) and see if thats causing the driver issues.

All I really want to do is add an extra couple of input jacks for Mic and Aux without shelling out for a sound card, as well as an opportunity to mess with hidden settings and break stuff :D


Pinky

Member
Joined
Apr 21, 2001
Location
Las Vegas, NV
If all you need is an extra mic input you could go with a usb audio adapter, a usb mic, or get a cheap mixer.

If you want to tinker, then carry on. :D

OP
A

anonymous9

New Member
Joined
Aug 3, 2016
Okay so I was playing around some more and think I figured out the problem, the surround jacks are somehow wired very differently. First I tried disabling one of them so only the pink and grey jacks were microphones, no luck. I decided to try a different mic just to be sure, so I plugged my headphones in (which use a single, 4 band jack for sound and mic) and voila, it picked up sound.

Now here's the really wierd part; it's somehow picking up sound from inside the left speaker cup instead of the mic itself. I don't just mean it picks up whats playing on the left speaker, I mean if I physically tap the speaker I can hear it though the computer. I'm not even sure how thats possible :/

Anyway, now I'm thinking about making some kind of adapter to change the order of the bands so it picks up the right one... (I know I could get a USB adapter for less than I'll spend making one, but where's the fun in that!)

Last edited:

Pinky

Member
Joined
Apr 21, 2001
Location
Las Vegas, NV
Speakers can be used as mics. Many years ago I had a set of heaphones I would wear and record live shows on a minidisc recorder. Ghetto ninja concert recording.
