FRONTPAGE Nvidia RTX 4090 Review: MSI’s Suprim Liquid X Tames Ada Lovelace
- Thread starter Overclockers.com
- Start date
- Joined
- Aug 24, 2007

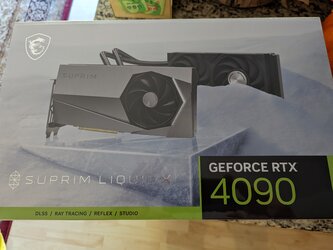

This is the only card the will fit in my case (hopefully! not sure about the height and hose clearance yet... I'll dremel a hole in the case if I have to) so it's the one I was F5ing on best buy at 9am. Got one! Happy to see the cooler was able to keep up with the card, I was worried about that.
One thing I noticed was the review has '3090 TI' in many places where it should say '4090' including in the bar graph captions - guessing some parts were copy/pasted over from a previous review
One thing I noticed was the review has '3090 TI' in many places where it should say '4090' including in the bar graph captions - guessing some parts were copy/pasted over from a previous review
Thanks for the heads up. I was up way too late and way too early to get this done for launch and didn't have time for someone else to edit it. I didn't see any in the chart captions, but I did find a couple in the titles and one or two typos. If you find more, PM me and I'll take care of them.
- Joined
- Nov 1, 2009
- Location
- Austin, TX
/sigh...
may i have $2000 for a new ROG Strix 4090, $550 for a new Thor 1200P2, and another $2000 (assuming) for a ROG Swift 48" 4K OLED monitor?
DISCLAIMER: The above question is intended for entertainment purposes only, and is NOT a request for money.
may i have $2000 for a new ROG Strix 4090, $550 for a new Thor 1200P2, and another $2000 (assuming) for a ROG Swift 48" 4K OLED monitor?
DISCLAIMER: The above question is intended for entertainment purposes only, and is NOT a request for money.
- Joined
- Feb 1, 2011
- Location
- Republic of Texas
Another WOW moment. Thanks Joe.
- Joined
- Aug 24, 2007
Yuck, if you're going to overspend on a PSU, why not at least get an ATX 3.0 one with a 12VHPWR connector? As far as I can tell, that Thor only comes with an adapter cable.
- Joined
- Nov 1, 2009
- Location
- Austin, TX
go back and read the disclaimer : it was meant as a joke.... 1) overpaying for the card and monitor, too, based on scalping of the card (its MSRP is $1600) and the monitor isn't even released yet... 2) specifacally mentioning ROG products as they're considered to be overpriced to begin with...i can't afford the card right now anyway. besides, i fully intend on buying a new ATX 3.0 PSU with an actual connector when i can. i don't know which one i'll buy, since they're so new we don't have very many to compare. i can also get a PSU specific 4x8 to 16 pin PSU cable from cablemods before then for $50US give or take, depending on how many combs i want and what length i choose.
PS: I'm just playfully giving you a hard time, pretending you don't get the joke and presuming that you're playfully giving me a hard time as a result of my joke...
- Joined
- Sep 20, 2001
- Location
- Bakersfield, CA
I'm honestly shocked a 240mm AIO can keep temps in check on this thing.
A single 120mm kept a similar amount of wattage 'cool' in AMD's 295x2 from several years back. The delta and temps were high, but it worked!
- Joined
- Sep 20, 2001
- Location
- Bakersfield, CA
And here I am thinking my 360 and 280 combo isn't enough for my 3080Ti.....
That's a question? My dude, plug that thing in!!! I ran this (well another 450W card) and a 12900K on a 750W PSU, your 850W (which Im running the same class PSU with that same 4090...) is fine (so long as it has the 4x PCIe 6+2 connectors).
Last edited:
- Joined
- Aug 24, 2007
Well, I did it. It works. It's pretty sketchy, the RM850x only has two PCIe cables each with two eight pin connectors on the end, so I plugged all four into the adapter that came with the card. Native 12VHPWR PSU will arrive Tuesday, so it's a temporary setup. I also had to gently nudge the side panel into place since the AIO hoses stick out pretty far. I wish they would put them on 90 degree fittings when the card is this wide! Ran through a 2077 bench maxed at 4k120 with these power and temp numbers, so I assume the hoses and wires are OK:
They specifically tell you not to do that, lol.
Are you sure that doesn't have enough connectors? Specs say it has six? At 850W, it should at least have four.
- Joined
- Aug 24, 2007
I went looking for more cables in the PSU box and there weren't any. The contents listing only said 2xPCIe cables - I think this is the version I have: https://www.tomshardware.com/reviews/corsair-rm850x-2021-power-supply-review
edit: I just read around and it looks like the RMx series is made to do two connections on one, it uses 16 gauge wire to the first PCIe connector and the PSU side connectors are rated for 300w. Corsair even sells a 600 watt 12VHPWR cable with only two connectors on the PSU side: https://www.corsair.com/us/en/Categ...0-12VHPWR-Type-4-PSU-Power-Cable/p/CP-8920284 - I think I'm fine for a few days
Last edited:
Weird. Must be different versions.
- Joined
- Aug 24, 2007
Yep, that's the 2018 version, one more PCIe cable and less EPS. Also a new fan design and sleep states were added to the 2021 version. They should both be fine to use the pigtails on the PCIe cables though, they should both use the 16+18 gauge design.
Where did you read not to use pigtails on the RTX 4090 adapter? I don't want to fry anything..
That's a really good looking card, and has outstanding temps. I think the MSI Suprim line was impressive for the 30 series (I own one, and both the hotspot and VRAM temps were good out of box) and now it continues to be good. With EVGA out, I think the two most recommended "premium" cards are going to be MSI Suprim and Asus Strix.
Specs show 6 pcie cables and 2 eps on the old one from my link.. but no matter. An 850W PSU with only two PCIe outputs is silly!!!
IIRC, the adapter packaging with the card had a little paper with it with pictures stating not to do it.
