You cut the 12VDC wires and connect to a molex. The PWM wires and plug are connected to the mobo. So the Mobo supplies the PWM, and the PSU supplies the power. Easy.
Welcome to Overclockers Forums! Join us to reply in threads, receive reduced ads, and to customize your site experience!
You cut the 12VDC wires and connect to a molex. The PWM wires and plug are connected to the mobo. So the Mobo supplies the PWM, and the PSU supplies the power. Easy.
On the molex, the yellow wire is +12v. The red is +5v, not enough to start the fan.
The fan motor is running on what is basically a sine wave, so you don't get as much "motor buzz" as a square wave drive. It is indeed PWM (or PDM) that allows a DSP like the Cindy Wu to synthesize sine waves, but don't confuse that with the PWM signal the motherboard sends to the DSP in order to command a speed.
The fan motor is running on what is basically a sine wave, so you don't get as much "motor buzz" as a square wave drive. It is indeed PWM (or PDM) that allows a DSP like the Cindy Wu to synthesize sine waves, but don't confuse that with the PWM signal the motherboard sends to the DSP in order to command a speed.

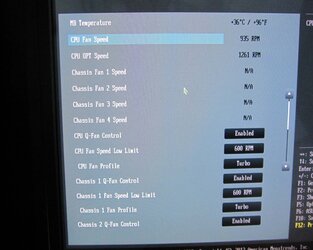

That's a control issue, not a problem with the fan. Basically, the Cindy Wu bit is really just a very specialized VFD that varies its output frequency based on the speed command it receives. (It's actually a lot more complicated than that, but the end result is basically that...) The controller, built into the motherboard, is what's doing the PID control. Most likely the settings were not tuned for that particular cooling setup so it ends up "hunting". You can try tweaking a few BIOS settings if your board has them. (My DX79SI lets me adjust the response speed as well as the damping.) On your board, there might be some other fan profile that reacts a little more gradually.
