Please Help G.skill F5-6000J3040G32G

[Keem33]

Hello Everyone,

This is my first time ever posting on a forum like this, I'm typically just try to search for someone that is having a similar issue and try to find my answer that way, however I can't seem to find anyone having similar issues as me.

My PC:

Gigabyte x670 Aorus Elite AX
7950x3d
2x32gb G.Skill 6000 CL30-40-40-96
PBO C/O -30 on all CC0 cores except my two best cores which are set to -5. On CCD1 I have -20 on all cores except my two best which I have set to -5.

I notice that when I play FPS games such as valorant, or CSGO I am getting this very weird stutter randomly. I notice that if I turn off EXPO and run the RAM at regular stock speeds I dont get this stutter at all, the games run smooth as butter. But the minute I increase anything the stutter comes back. I've read some posts that comment about this kit being dual rank, and because of that IMC's are not able to handle it. However I used my best buy membership to my advantage and picked up a 7800x3d from the shelf, as well as a new motherboard and tried with the 7800x3d and the new motherboard wich was a asus b650e-f and the same thing would happen. I would get stutters the minute I increased anything on memory. At this point I'm at a loss.

Is the fact that this RAM is dual ranked mean that I am just going to have to run it at 4800hz, or am I just overlooking something very obvious. Any help and insight would be extremely appreciated.

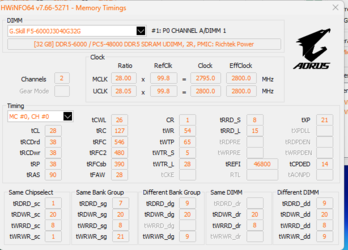

I posted a screen shot of my current timings as of no I'm trying out 5600mhz, but I've tried all the expo timings listed in HWinfo, all have produced the same results.



[EarthDog]

The fact that it's SOOOOOOOOOOOO MUCH memory is the problem. It will have to run slower, yeah.

128GB? Please tell me you can use, like, half of that....?



[Keem33]

The fact that it's SOOOOOOOOOOOO MUCH memory is the problem. It will have to run slower, yeah.

128GB? Please tell me you can use, like, half of that....?

Yikes I'm so sorry that was a typo its actually 2x32. Brain is fried from trouble shooting this issue all day. Sorry about that.

f5-6000j3040g32, is the exact kit.



[Woomack]

There is an F20a BIOS for your motherboard if you wish to try the new AGESA. It works fine on the B650E Master.
I was reviewing the same memory kit on ASUS X670E Gene, and I had no problems at all - click, I don't remember what I did with it.

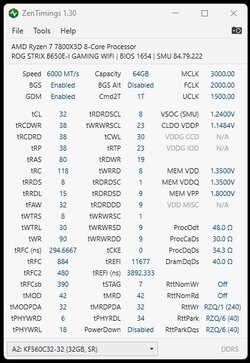

Here is a Kingston 64GB 6000/CL32 XMP profile. It works 24/7 like that on my PC with 7800X3D and ASUS B650E-I Gaming. It uses exactly the same IC as G.Skill.



You may also check if overclocked settings like 7200 or 7400 CL36-46-46 1.35V and everything else at auto work better. I see it performs about the same as 6000-6400 1:1.
