Just posted the pictures for all the parts I ordered and updated the status. I resized the pictures to 1600x1200 so the details are clear. I also made sure the item is in focus and close to the lens. That should hopefully clear up questions regarding a part.

OP
Automata

Automata

Destroyer of Empires and Use
Joined
May 15, 2006
I'm ordering a few more parts. Some of them I'm not sure on and neither is Mouser. Thanks to Bobnova, we know now what the 6pin PCIe connector is, but he couldn't locate the 8pin version. I would really appreciate any information on this.

6pin PCI-e UNCONFIRMED:
www.mouser.com/ProductDetail/Molex/45559-0002/?qs=sGAEpiMZZMufdu5QM0tCwVOWdDU107Jf

USB/sound/firewire/front panel connectors (FCI Mini-PV) UNCONFIRMED:
http://www.digikey.com/product-detail/en/65039-031LF/609-2337-ND/1002652
http://www.mouser.com/ProductDetail/FCI/65039-031LF/?qs=sGAEpiMZZMtsLRyDR9nM17T5O64KcyU3zTzJgjSl3BE=

USB/sound/firewire/front panel pins UNCONFIRMED:
http://www.mouser.com/ProductDetail/FCI/48252-000LF/?qs=sGAEpiMZZMsuqxDVcGs5qAID029i6opBprtjvCh5Jlw=
http://www.mouser.com/ProductDetail...GAEpiMZZMtsLRyDR9nM14Vjyw4ze%2bjtfA3sRZncVKo=

Performance-PCs lists their connectors as "KK" series, which is Molex. I've been scouring Molex's website and I can not find anything in their entire product lineup that even looks like the FCI connector. The FCI looks identical to what I have in front of me, but the pins look different.

Your Order is Now Complete


You will receive an additional email confirmation when your order ships. If you have questions or concerns about your order, please contact us and reference the order number below.

Last edited:

Bobnova

Senior Member
Joined
May 10, 2009
The lack of an 8p part number, or even just the +2p bit's part number, is still annoying me.
I may have to try to bake it out of PerformancePCs or something.


TiZakit

Member
Joined
Dec 1, 2010
Location
Doylestown, Ohio
Yeah. As mentioned previously, I've spent hours on the web trying to find that thing. No one knows.

6p was easy to find. Molex won't respond to my inquiry about an 8p. I probably need to find the name of an individual rep though.

OP
Automata

Automata

Destroyer of Empires and Use
Joined
May 15, 2006

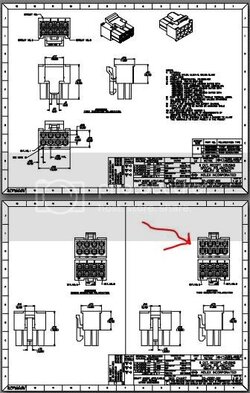

Looking at the PDF specifications, the keying does not match a PCIe connector.

OP
Automata

Automata

Destroyer of Empires and Use
Joined
May 15, 2006
That is not the pattern either.

With the latch on the top and the pin facing you, PCIe is:
Code:
\_/ \_/ [_] \_/
[_] \_/ \_/ \_/


BrotherJohn

Member
Joined
Jun 23, 2012

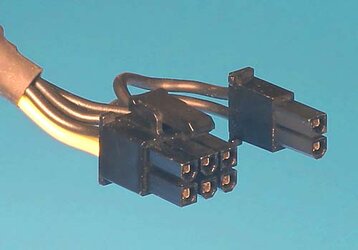

All the pics of the PCIe connector on the web show what I linked to.
Edit: I just looked at a pic of a 8 pin GPU and it doesn't match your pic.

OP
Automata

Automata

Destroyer of Empires and Use
Joined
May 15, 2006
I have no idea how the heck I missed that, I apologize. That does match.

OP
Automata

Automata

Destroyer of Empires and Use
Joined
May 15, 2006
I'm a bit confused by their numbers. 045587-0002 is "second generation", but 045587-0003 is "first generation". I can't find third generation. :confused:

I can't find any of those part numbers on Mouser/Digikey, either.
